Disassembly And Assembly Of Subassemblies: Piston: Disassembly

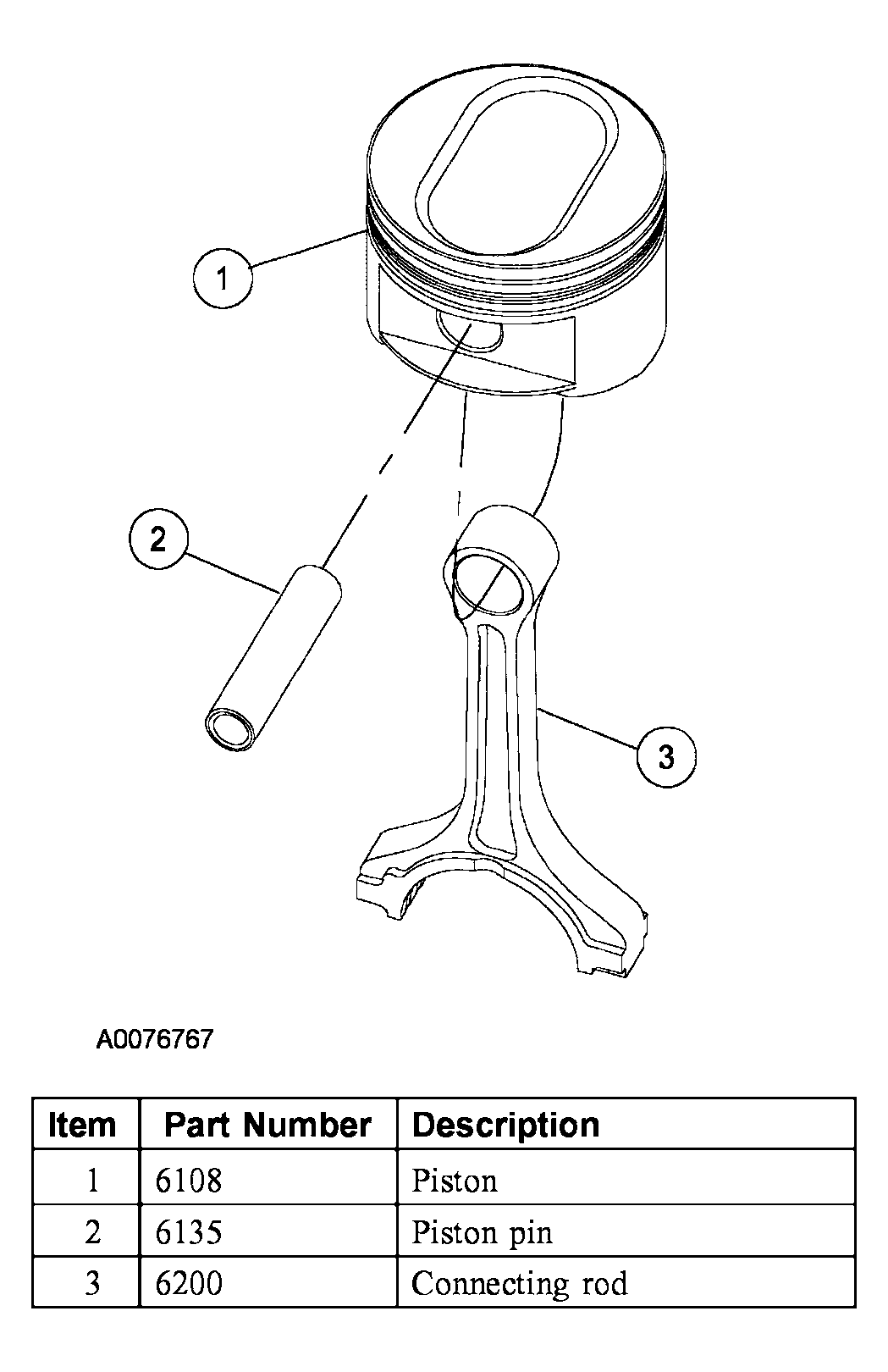

Fig 1: Identifying Piston Assembly Components

Courtesy of FORD MOTOR CO.

1. Using the special tool, press the piston pin out from the connecting rod and piston assembly.
   Fig 2: Pressing Piston Pin Out From Connecting Rod And Piston Assembly

   Courtesy of FORD MOTOR CO.
2. Remove the connecting rod from the piston.

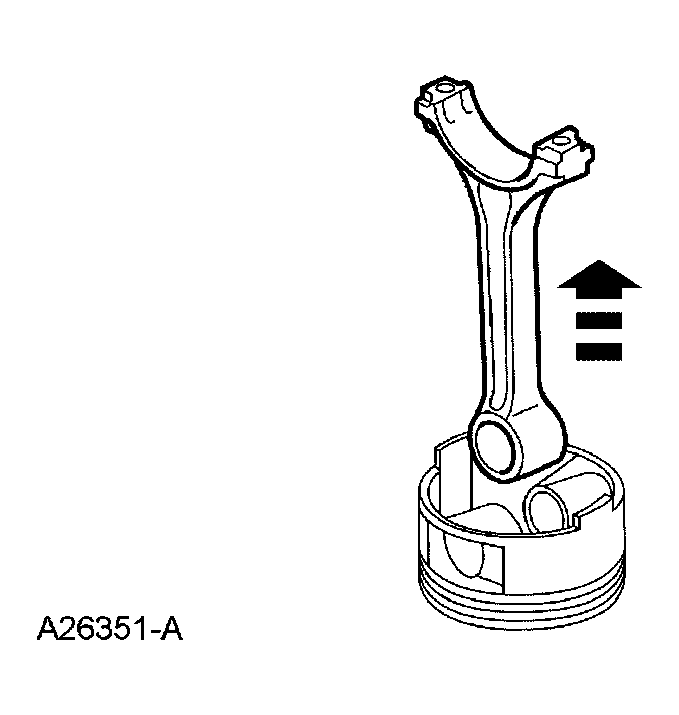

   Fig 3: Removing Connecting Rod From Piston

   Courtesy of FORD MOTOR CO.
3. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
