Engine Lubrication Components - Exploded View

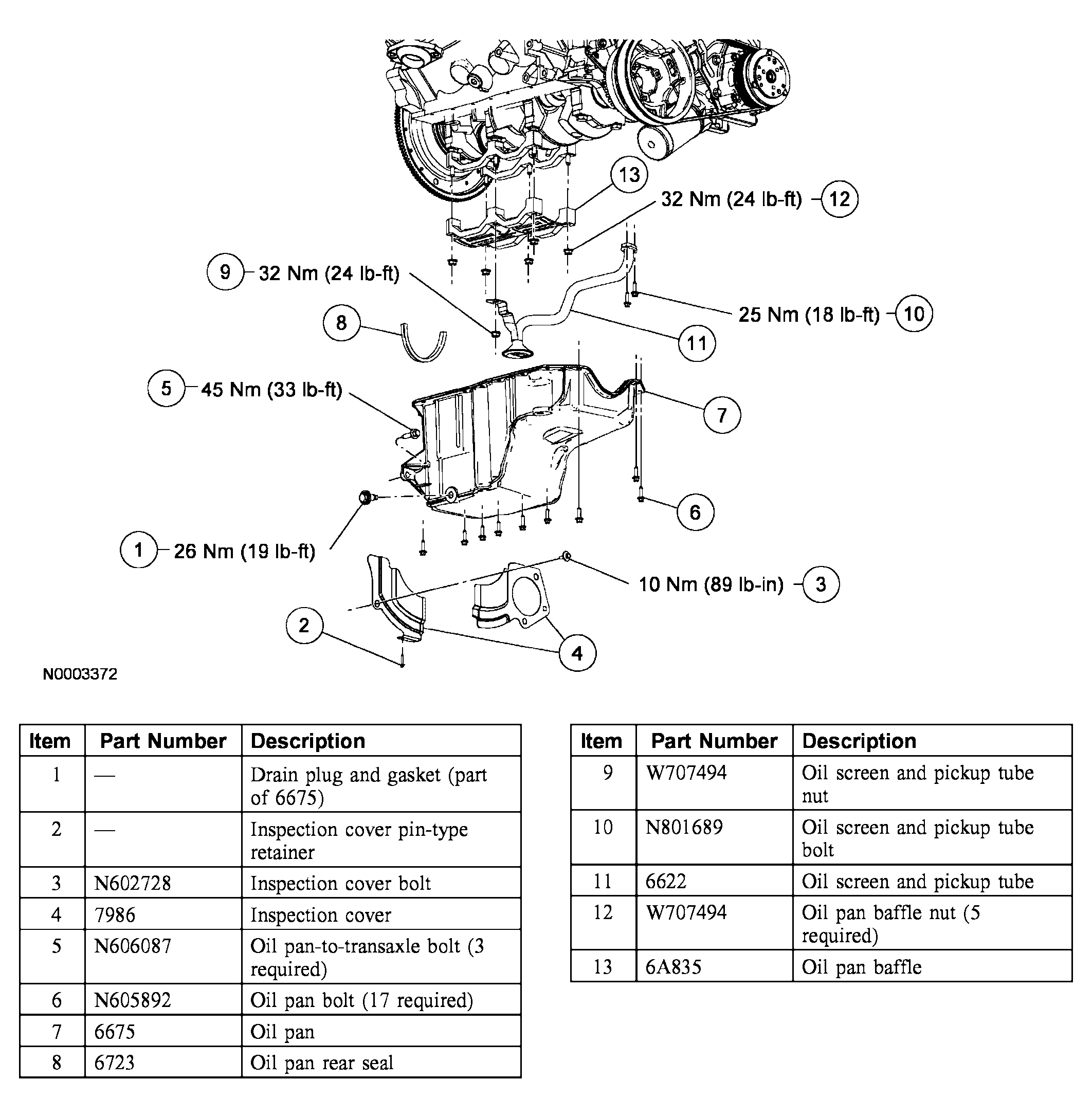

Fig 1: Exploded View Of Engine Lubrication Components
G04003998Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures.
