Engine Mounts - Exploded View

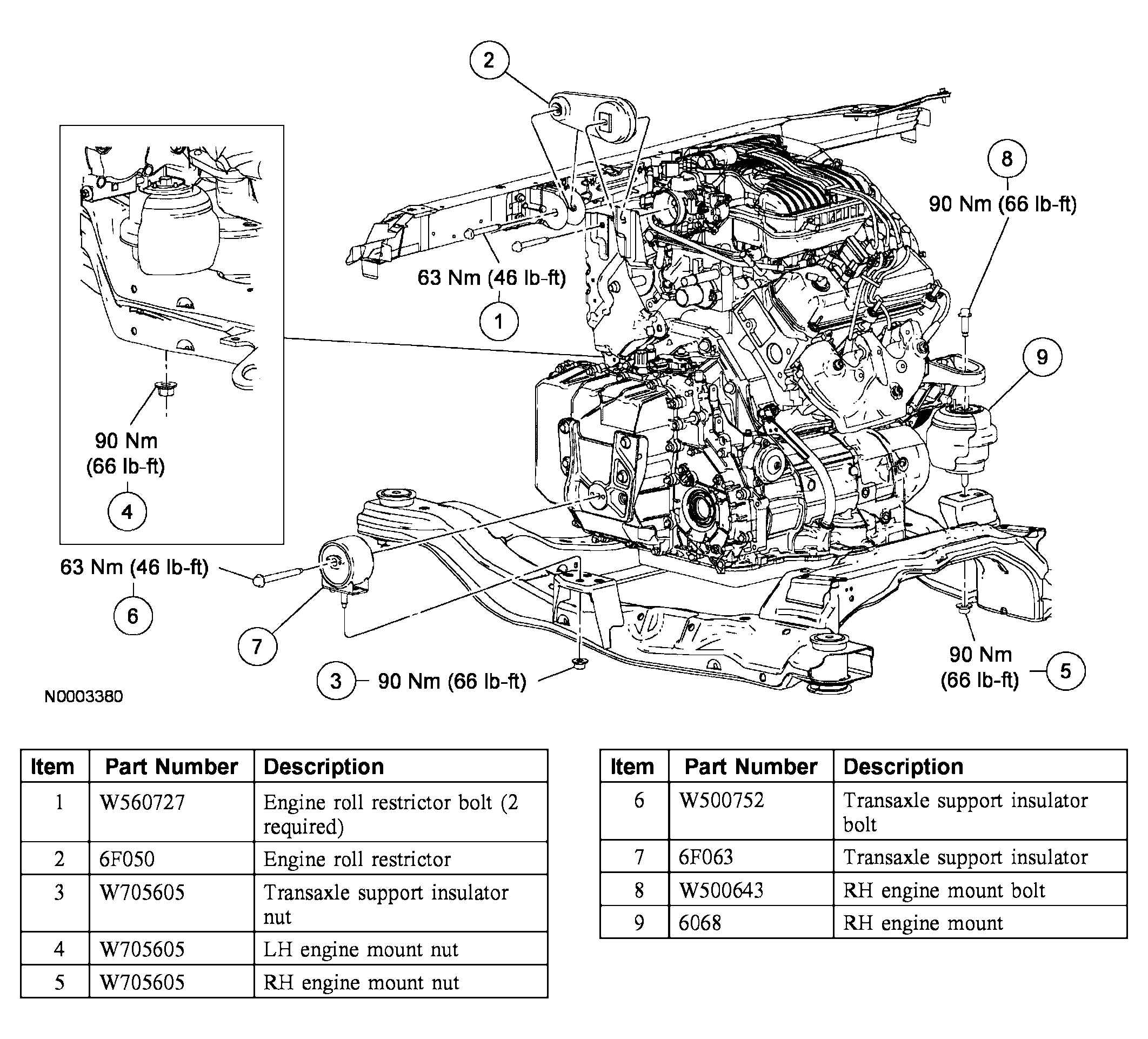

Fig 1: Identifying Engine Mount Components (1 Of 2)
G04004025Courtesy of FORD MOTOR CO.

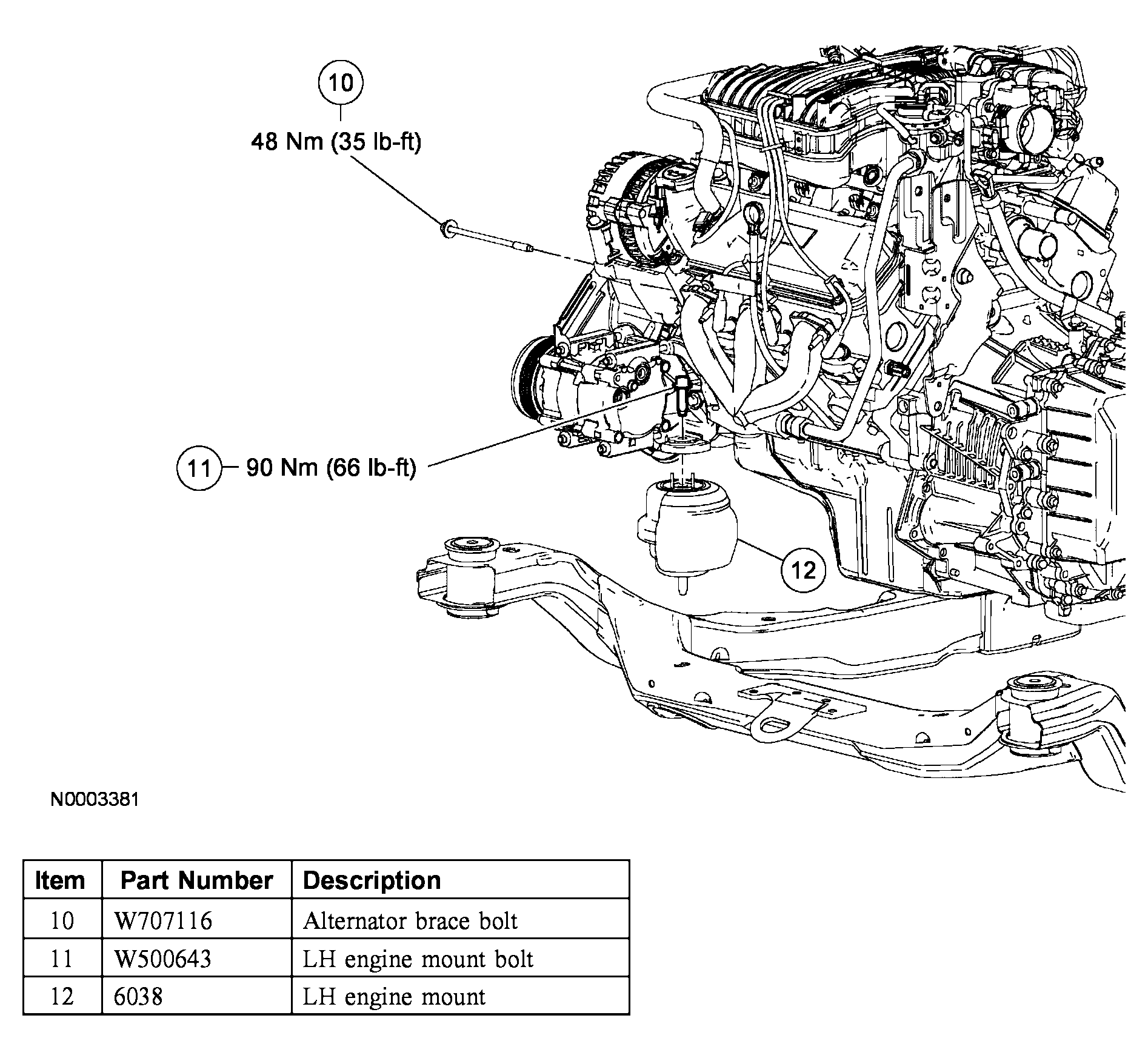

Fig 2: Identifying Engine Mount Components (2 Of 2)
G04004026Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures.
