Timing Drive Components: Installation

Install the timing chain tensioner and the bolts.
- Tighten to 11 Nm (8 lb-ft).
Fig 1: Identifying Timing Chain Tensioner And Mounting Bolts
Courtesy of FORD MOTOR CO.

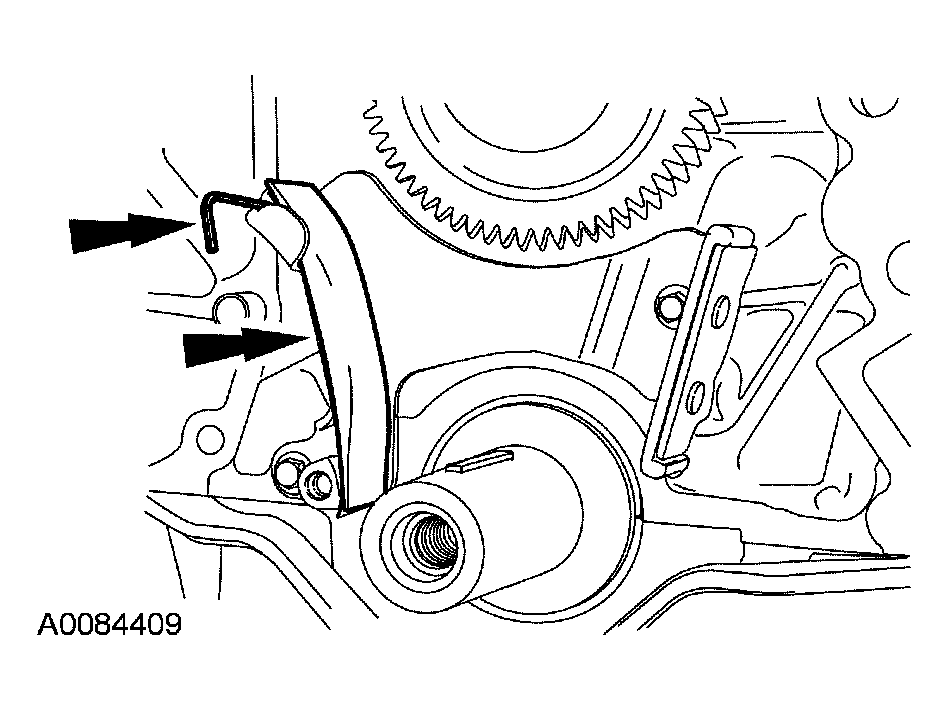

If necessary, retract the tensioner pad retracting mechanism and insert a retaining pin.

Fig 2: Inserting Retaining Pin
Courtesy of FORD MOTOR CO.

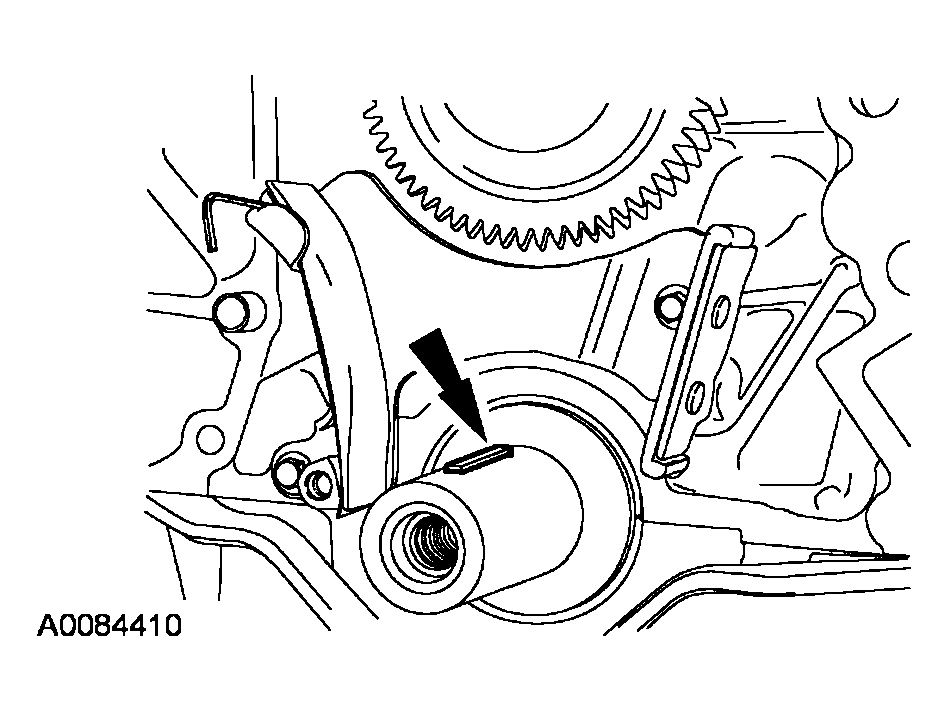

Rotate the crankshaft so the No. 1 piston is at top dead center (TDC) and the key is at the 12 o'clock position.

Fig 3: Identifying Key At 12 O'Clock Position
Courtesy of FORD MOTOR CO.

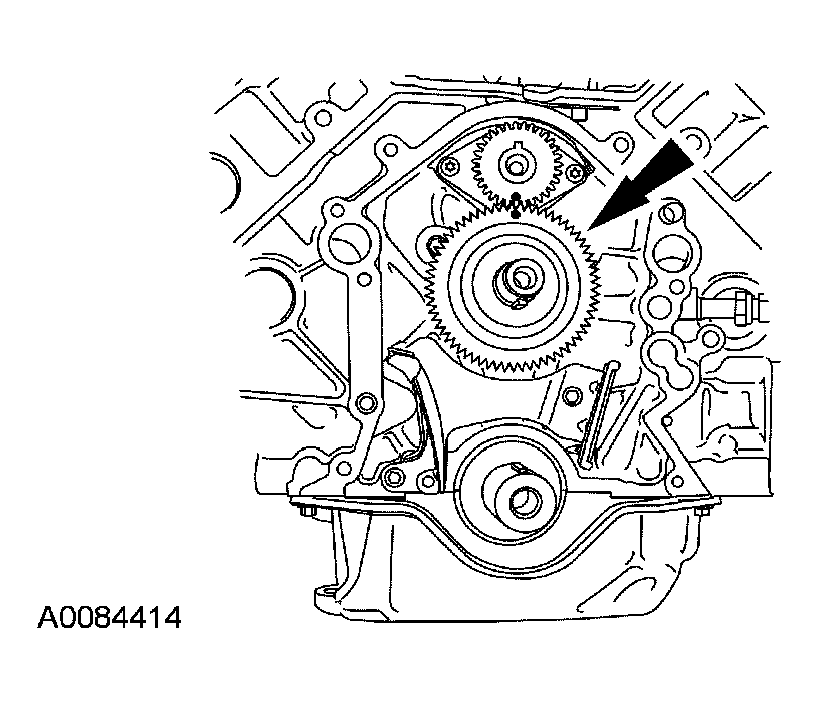

Turn the camshaft gear so that the timing mark is on the bottom of the balance shaft.

Fig 4: Identifying Timing Mark Position
Courtesy of FORD MOTOR CO.
Install the timing chain, crankshaft gear and camshaft gear as an assembly.

Fig 5: Identifying Timing Chain And Sprockets
Courtesy of FORD MOTOR CO.
Make sure that the timing marks and the keyways are aligned.

Fig 6: Identifying Timing Marks And Keyways Position
Courtesy of FORD MOTOR CO.

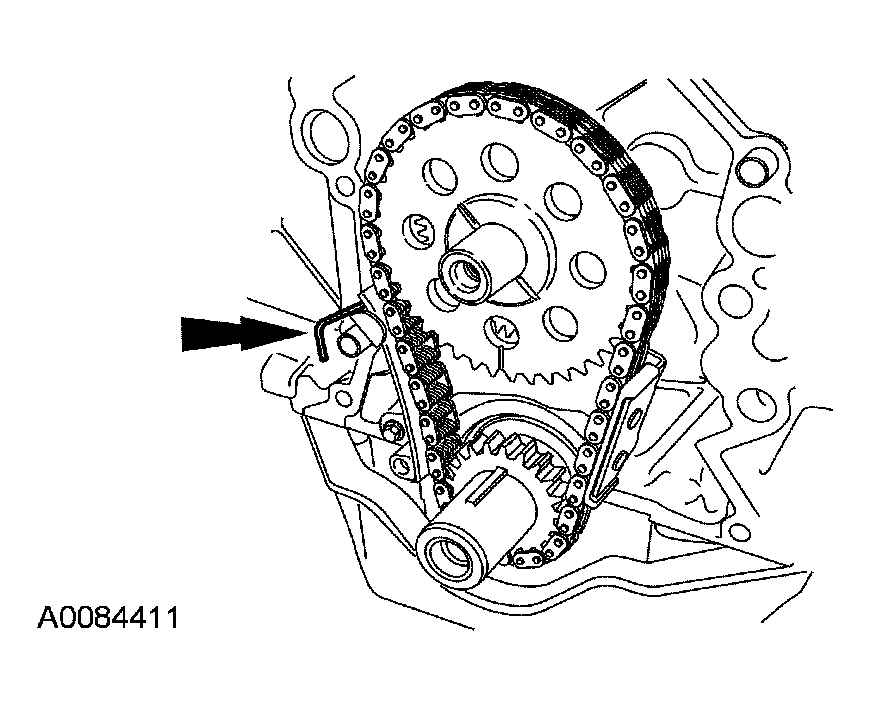

Remove the retaining pin.

Fig 7: Removing Retaining Pin
Courtesy of FORD MOTOR CO.

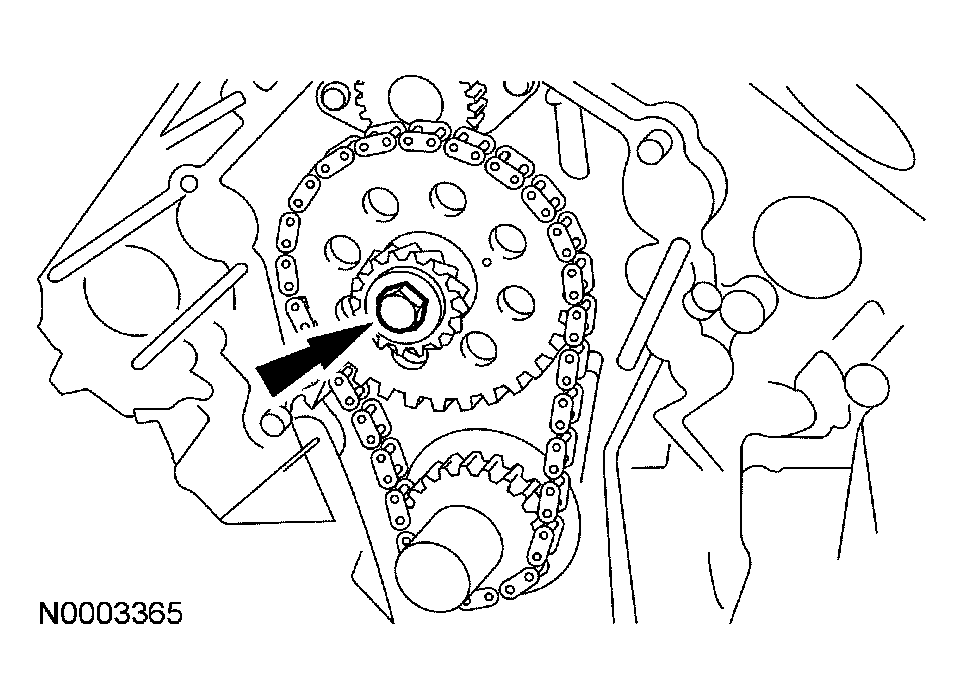

Install the synchronizer drive gear and the bolt.
- Tighten to 45 Nm (33 lb-ft).
Fig 8: Installing Synchronizer Drive Gear And Bolt
Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
