Valve Cover LH: Notes

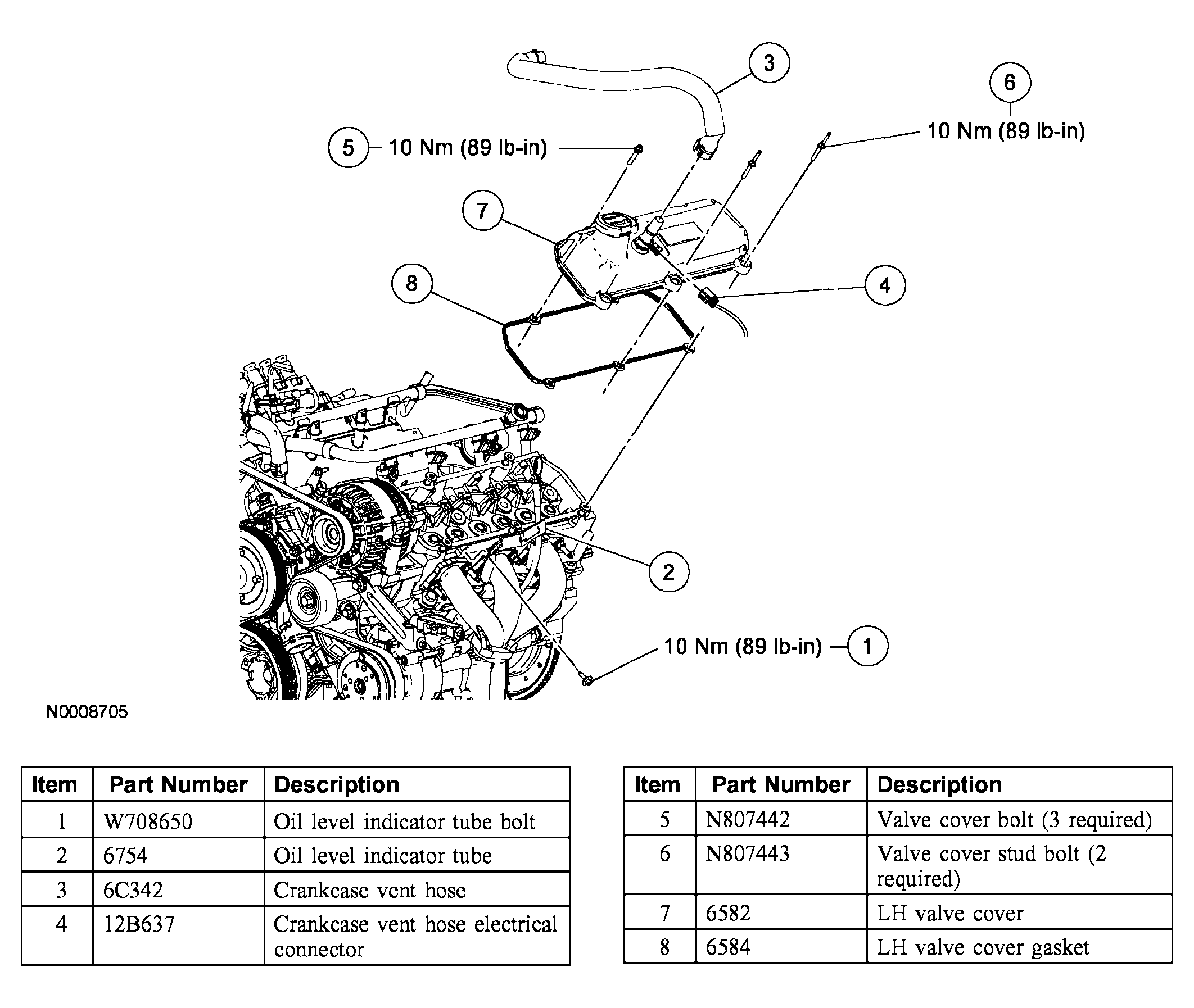

Fig 1: Identifying Valve Cover LH Components

G04003903

Courtesy of FORD MOTOR CO.
