Valve Cover RH: Notes

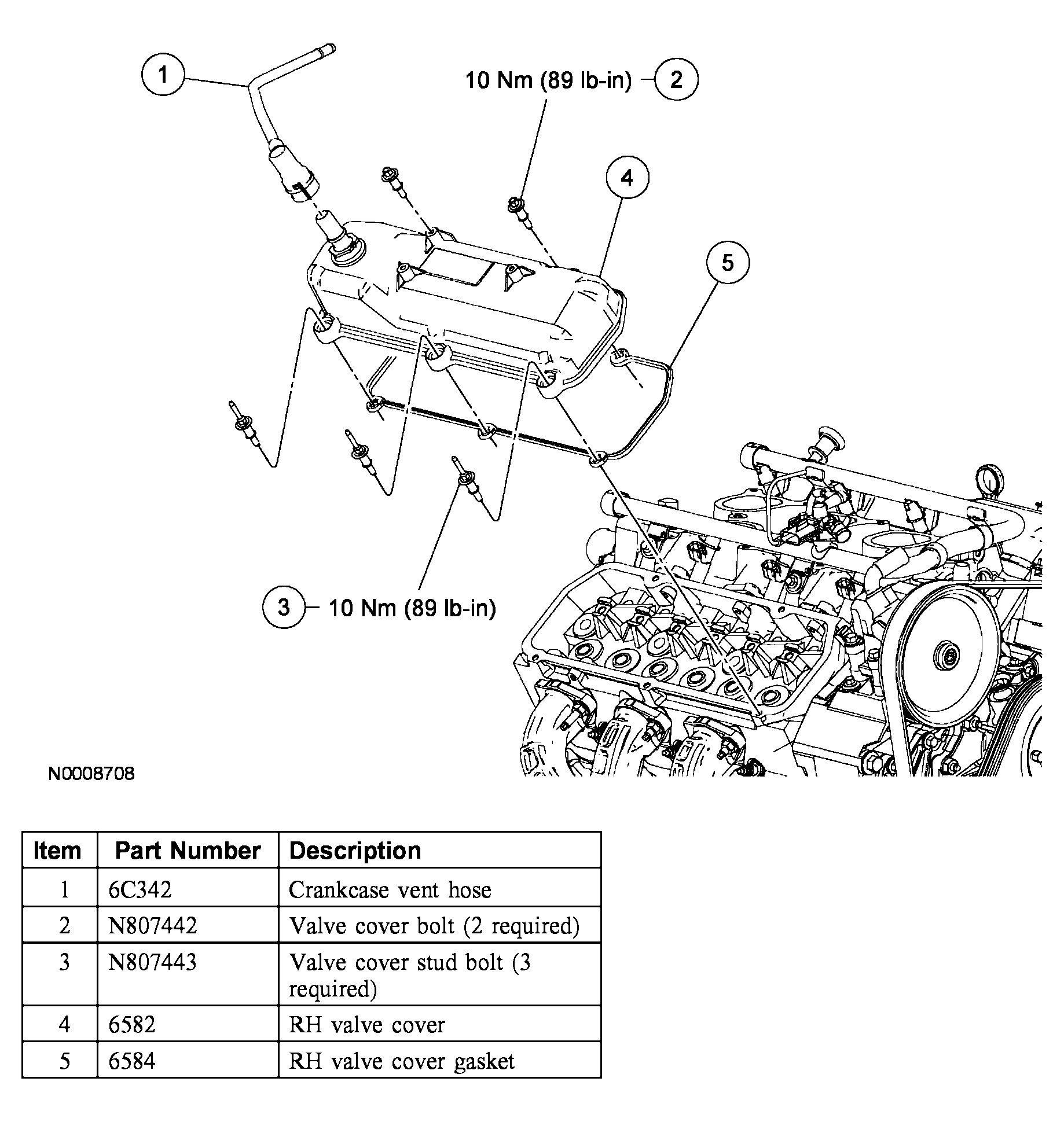

Fig 1: Identifying Valve Cover RH Components
G04003905Courtesy of FORD MOTOR CO.
