Throttle Body: Notes

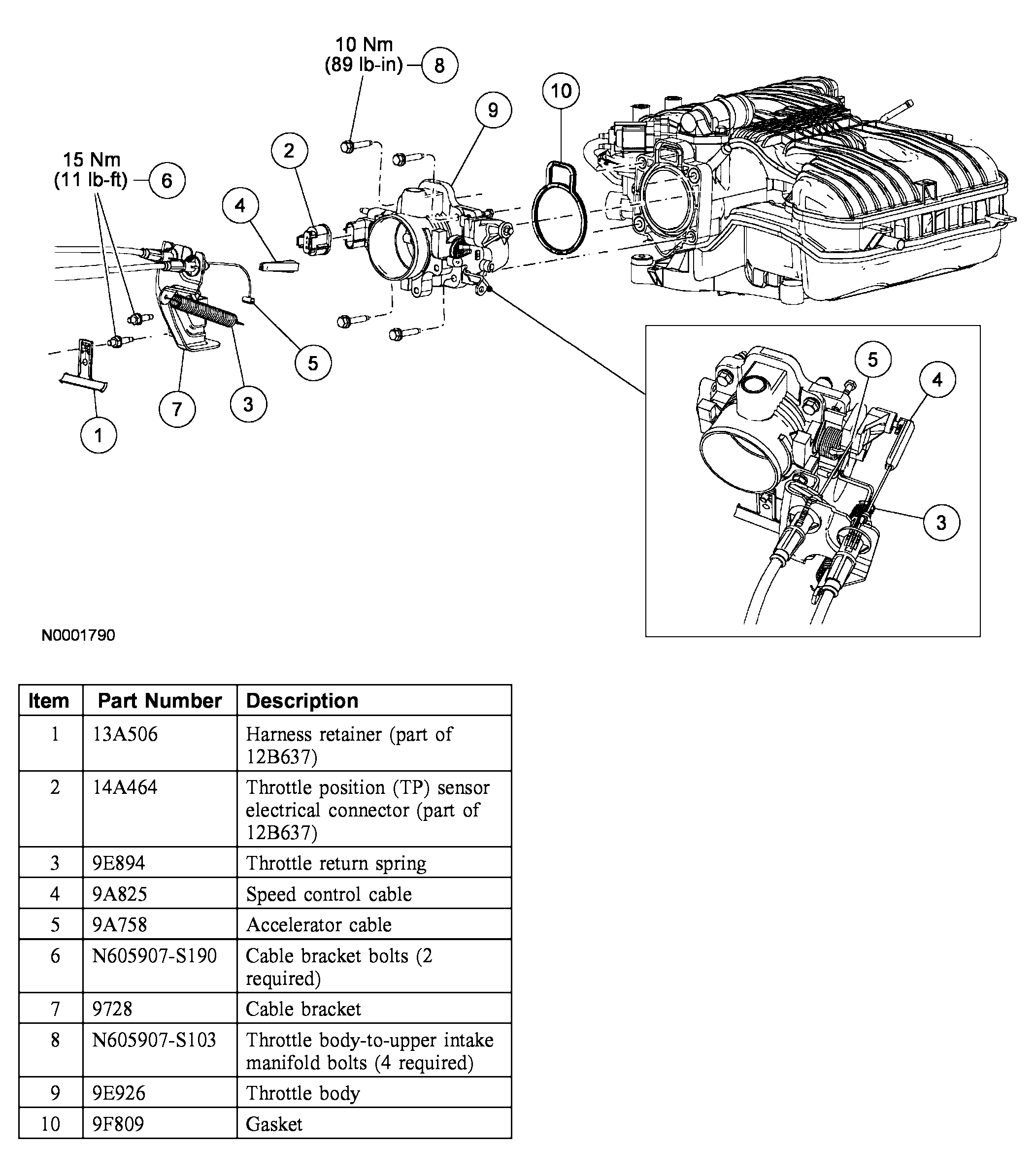

Fig 1: Removing Throttle Body
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
