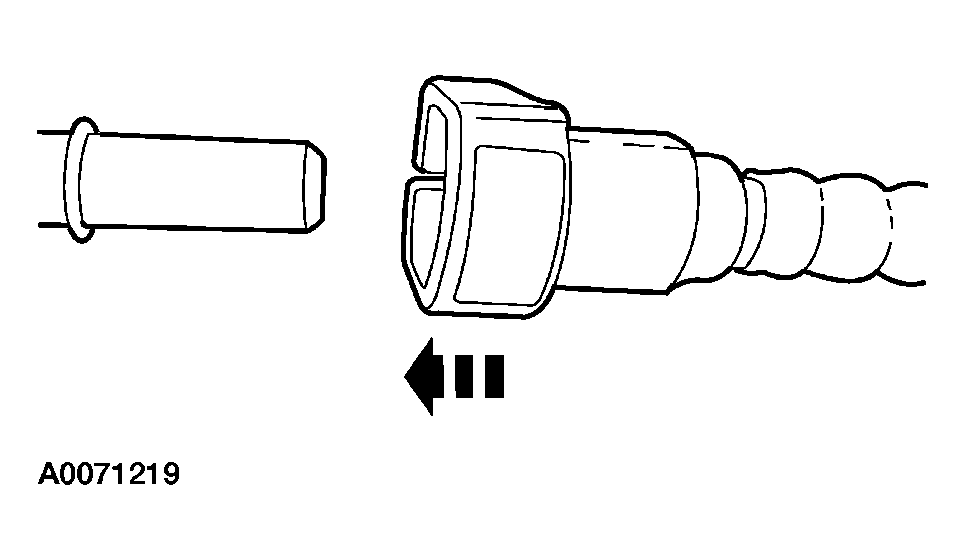

Quick Connect Coupling: Connect
- Inspect the quick-release coupling and fuel tube for damage.
- Remove any dirt or obstructions.
- Install the fuel tube quick-release coupling.
CAUTION:
Make sure the fuel tube clicks into place when installing the tube. To make sure the tube is fully seated, pull on the tube.
NOTE:
Apply clean engine oil to the end of the tube before inserting a tube into the connector.
