Powertrain Control Module (PCM): Removal

    NOTE: Any PCM replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.
  1. Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the 3 bolts (1) and position aside the suction accumulator (2).
  4. Remove the bolt (3) and position aside the power steering reservoir (4).

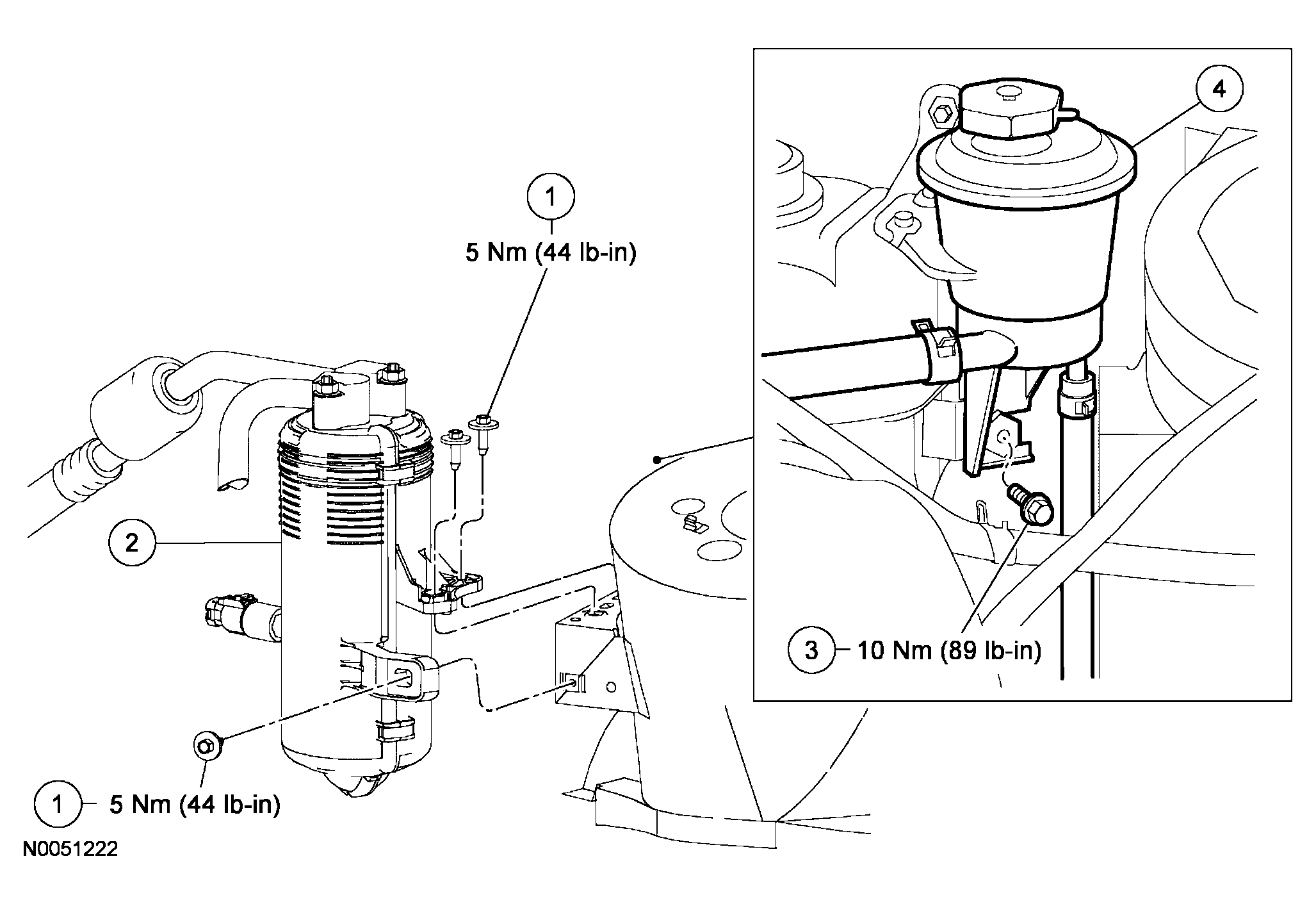

    Fig 1: Removing & Installing Power Steering Reservoir & PCM (1 Of 2)
    G04004503Courtesy of FORD MOTOR CO.
  5. Loosen the bolt and disconnect the PCM electrical connector.
  6. Remove the 2 PCM retaining nuts and the PCM.

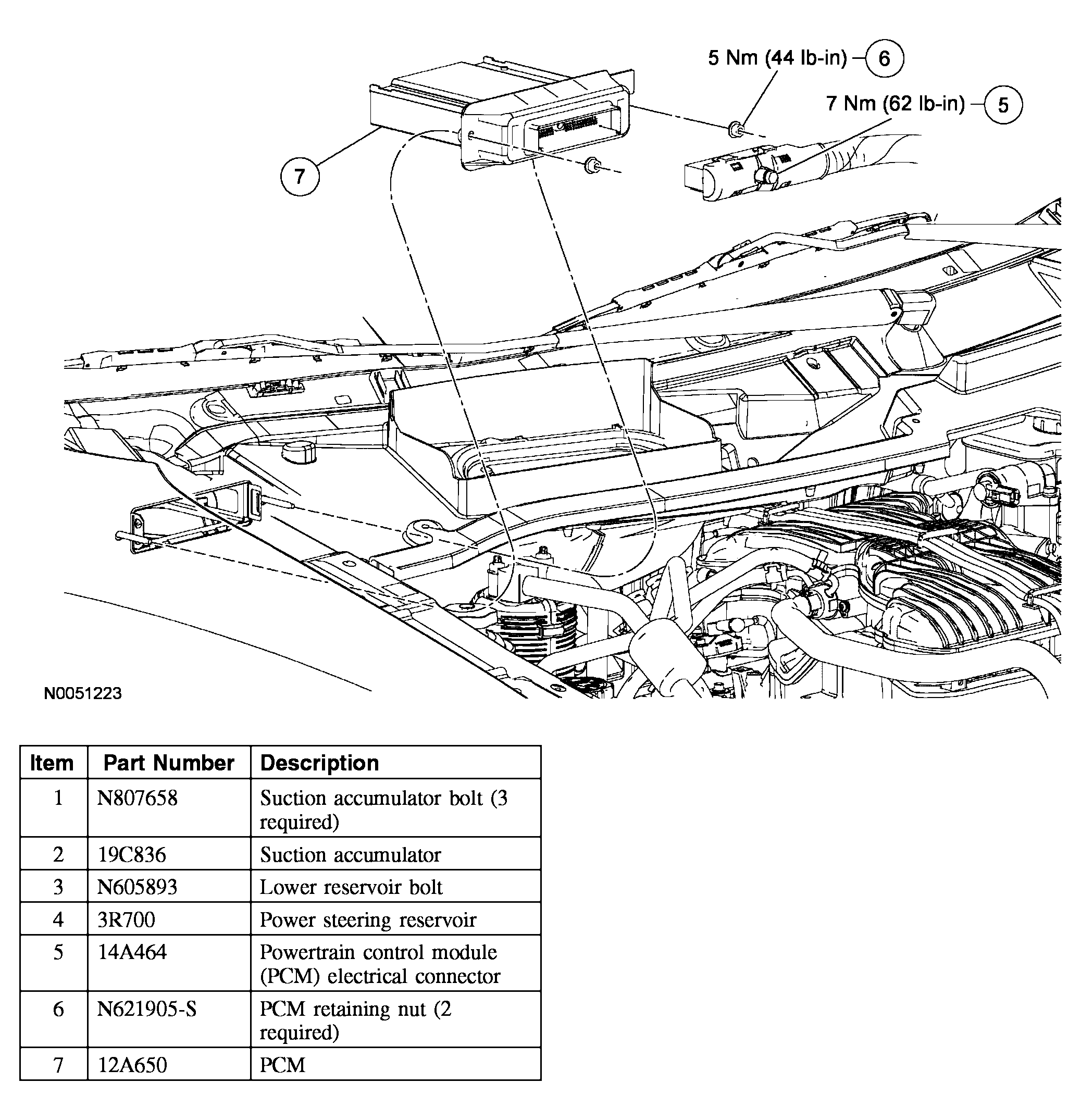

    Fig 2: Removing & Installing Power Steering Reservoir & PCM (2 Of 2)
    G04004504Courtesy of FORD MOTOR CO.
