Steering Column: Assembly

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Floor shift vehicles

  1. Install the inhibitor cable bracket and the 2 bolts.
    • Tighten to 6 Nm (53 lb-in).

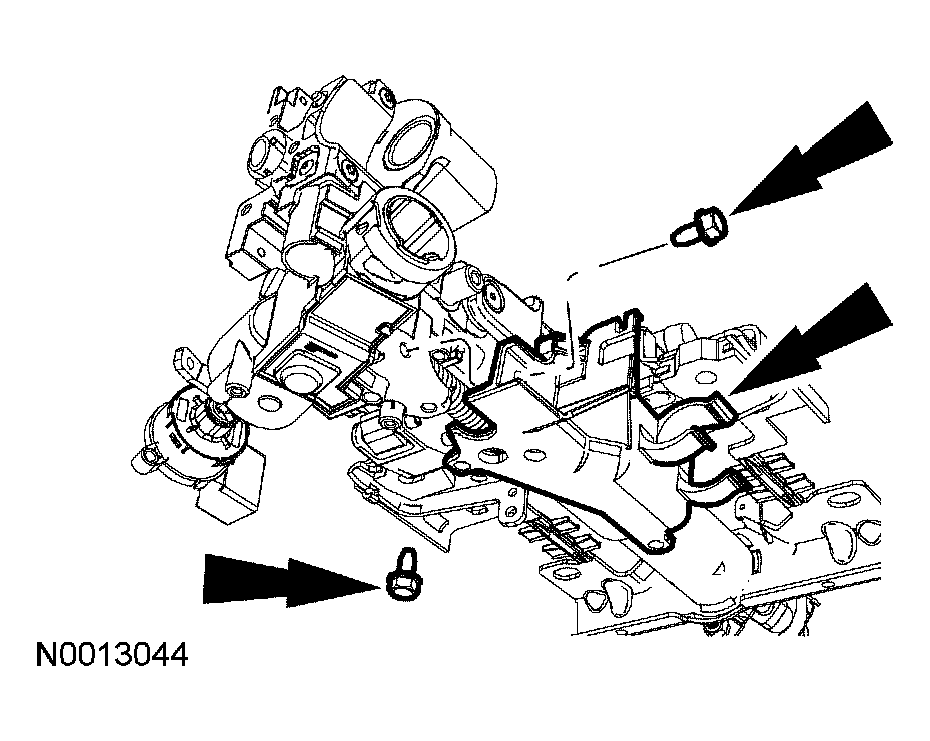

      Fig 1: Installing Inhibitor Cable Bracket And 2 Bolts
      G04583301Courtesy of FORD MOTOR CO.
  2. Column shift vehicles

  3. Install the shift cable bracket and the 2 bolts.
    • Tighten to 9 Nm (80 lb-in).

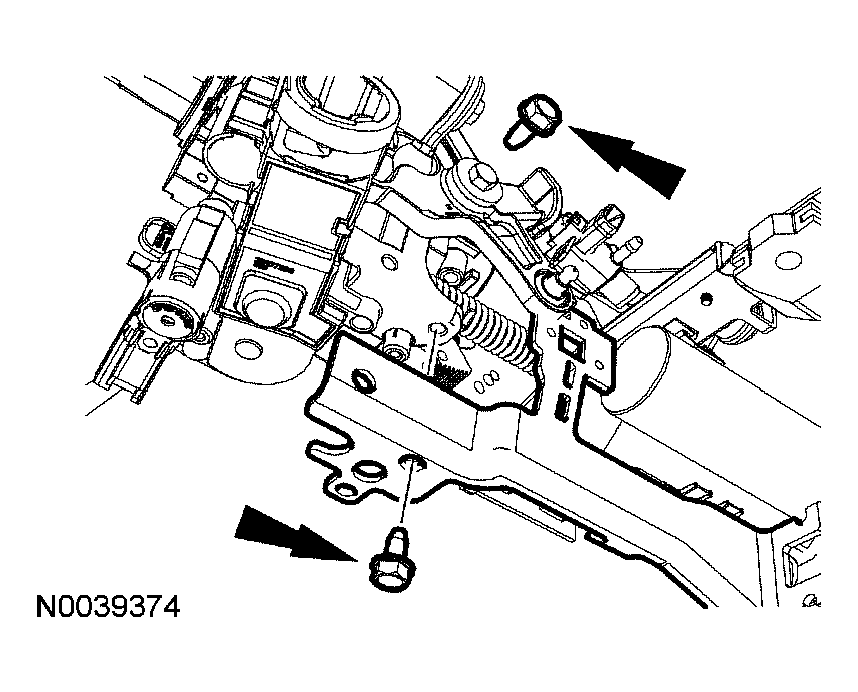

      Fig 2: Installing Shift Cable Bracket And 2 Bolts
      G04583302Courtesy of FORD MOTOR CO.
  4. Install the gearshift lever and the screw.
    • Tighten to 18 Nm (13 lb-ft).
      Fig 3: Installing Gearshift Lever And Screw
      G04583303Courtesy of FORD MOTOR CO.
  5. NOTE: Make sure the pocket in the inhibitor for the brake shift interlock solenoid plunger is free of grease and foreign material.
    NOTE: Place the gear shift lever in the lowest gear position.
  6. Fully insert the inhibitor into the cavity and install the inhibitor spring.
    • Apply grease to the outer surfaces of the inhibitor and in the inhibitor spring pocket.

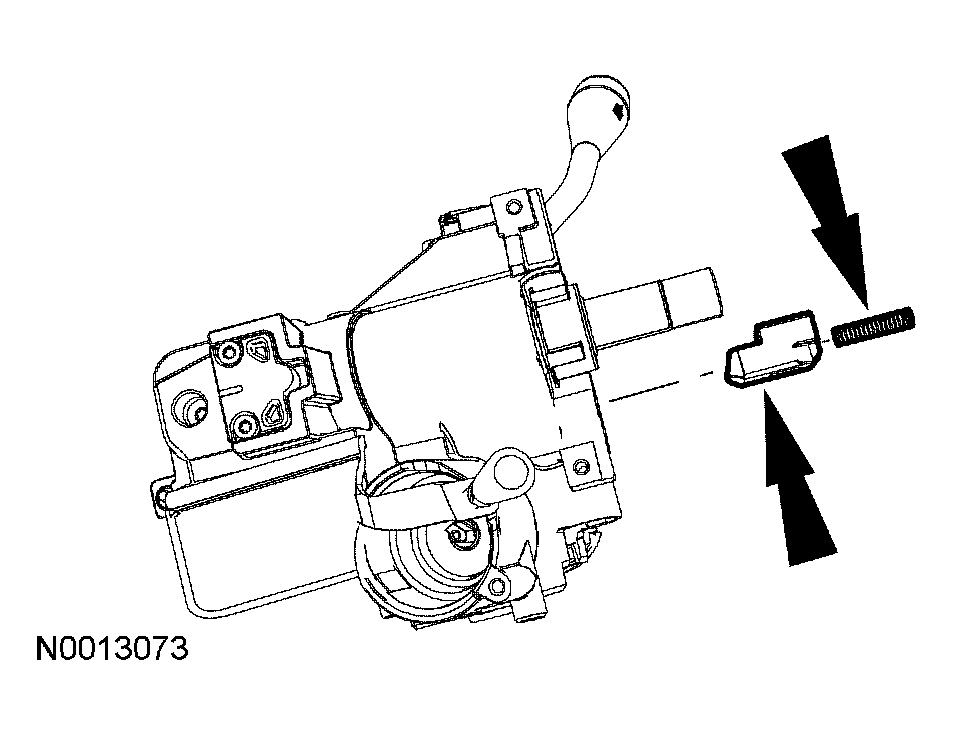

      Fig 4: Inserting Inhibitor Into Cavity And Installing Inhibitor Spring
      G04583304Courtesy of FORD MOTOR CO.
  7. Install the brake shift interlock solenoid.
    • Simultaneously insert the park position switch and the brake shift interlock solenoid.
    • Connect the clip.

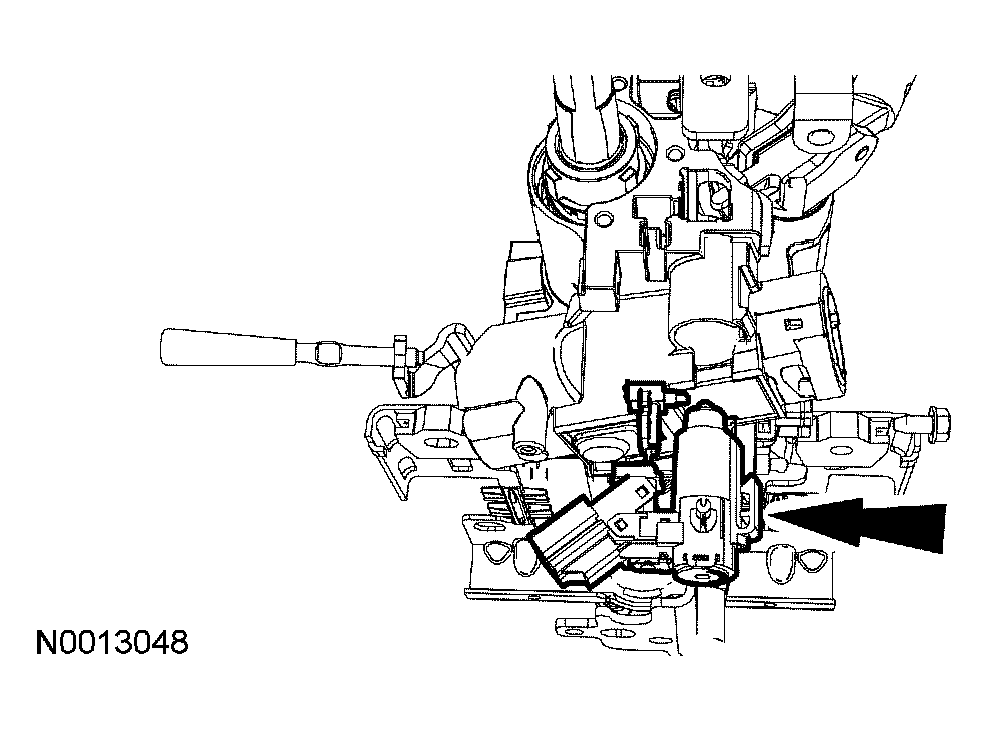

      Fig 5: Installing Brake Shift Interlock Solenoid
      G04583305Courtesy of FORD MOTOR CO.
  8. All vehicles

  9. Install the clockspring mounting bracket and the screw.
    • Tighten to 8 Nm (71 lb-in).

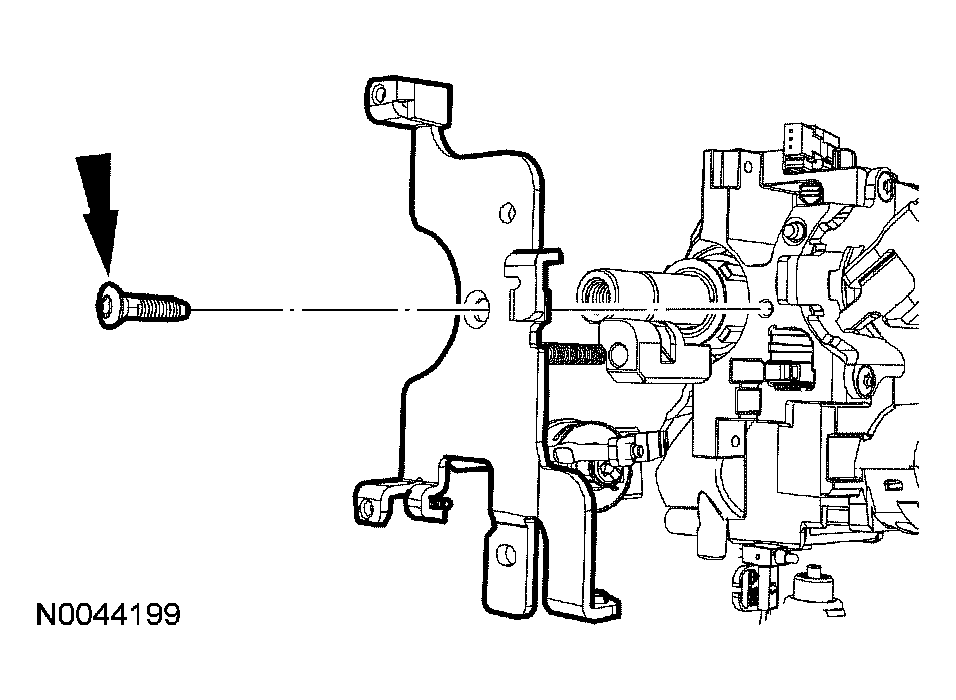

      Fig 6: Installing Clockspring Mounting Bracket Screw
      G04583306Courtesy of FORD MOTOR CO.
  10. NOTE: Place the ignition key in the OFF position.
  11. Install the ignition switch and the screw.
    • Tighten to 5 Nm (44 lb-in).

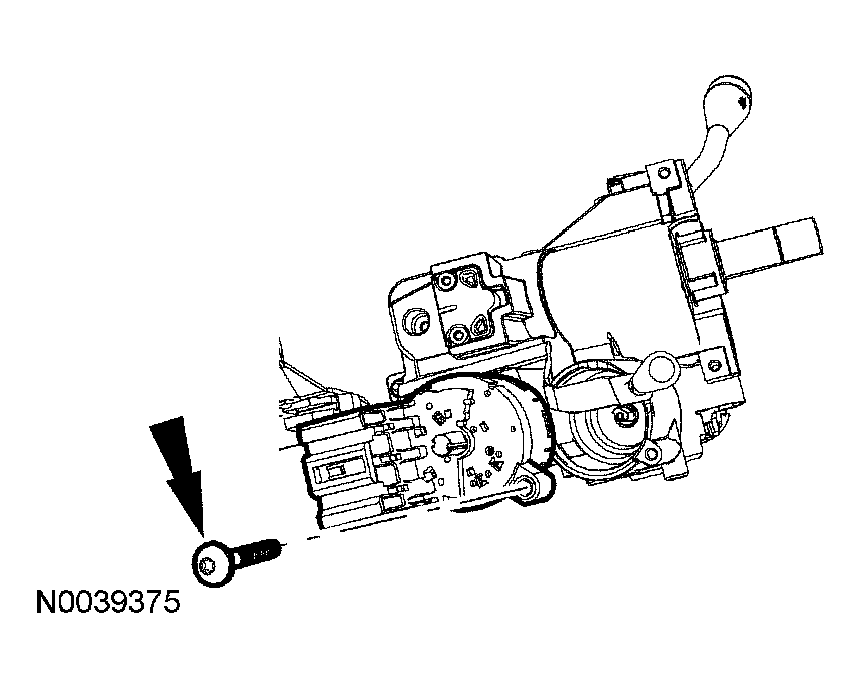

      Fig 7: Installing Ignition Switch Screw
      G04583307Courtesy of FORD MOTOR CO.
  12. Install the multi-function switch. For additional information, refer to STEERING COLUMN SWITCHES .
  13. Install the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  14. Install the steering wheel. For additional information, refer to STEERING WHEEL .
  15. Install the steering column. For additional information, refer to STEERING COLUMN .
