Transaxle Connector Layouts

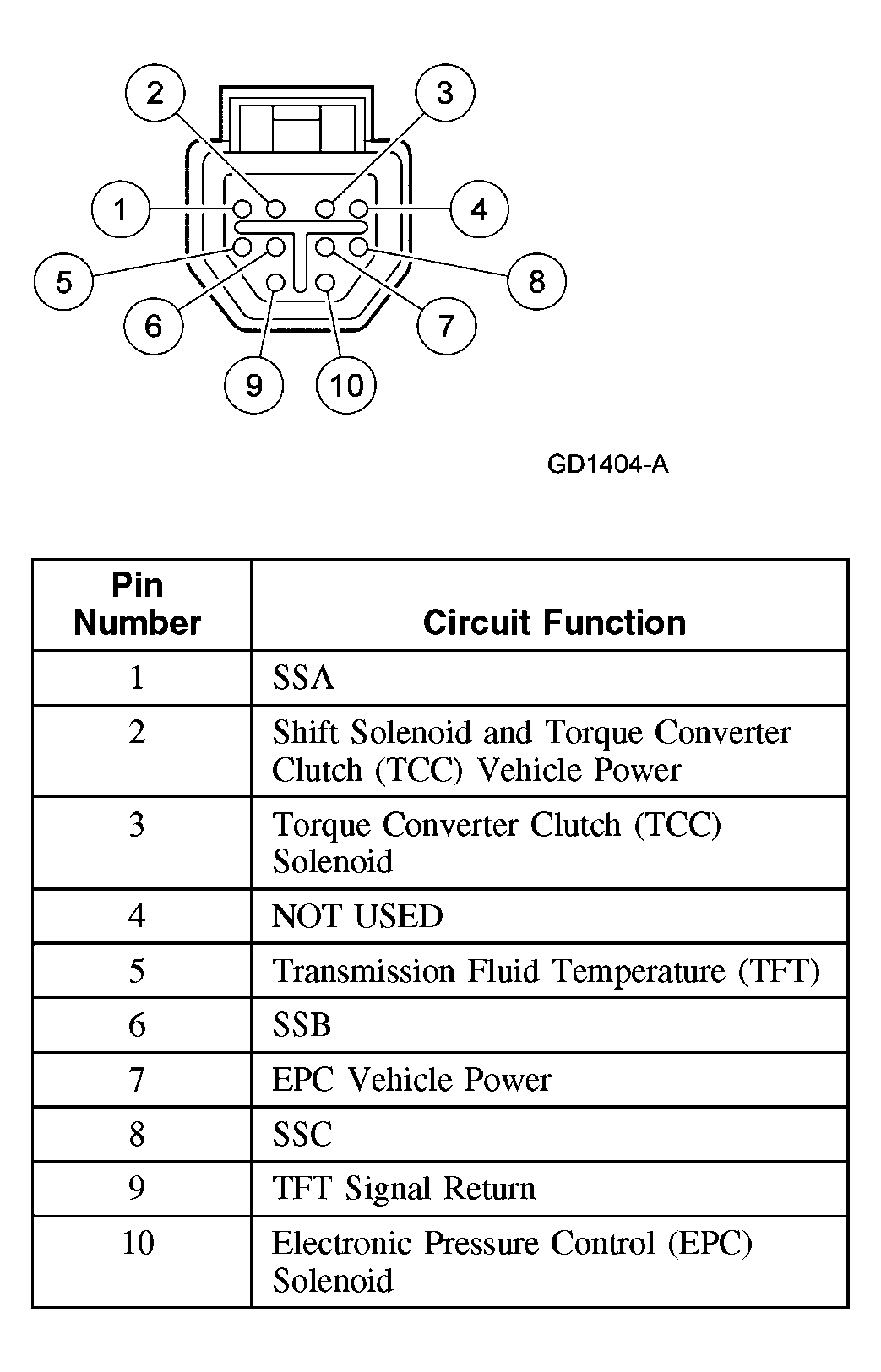

Fig 1: Identifying Transaxle Harness Connector
G04004538Courtesy of FORD MOTOR CO.

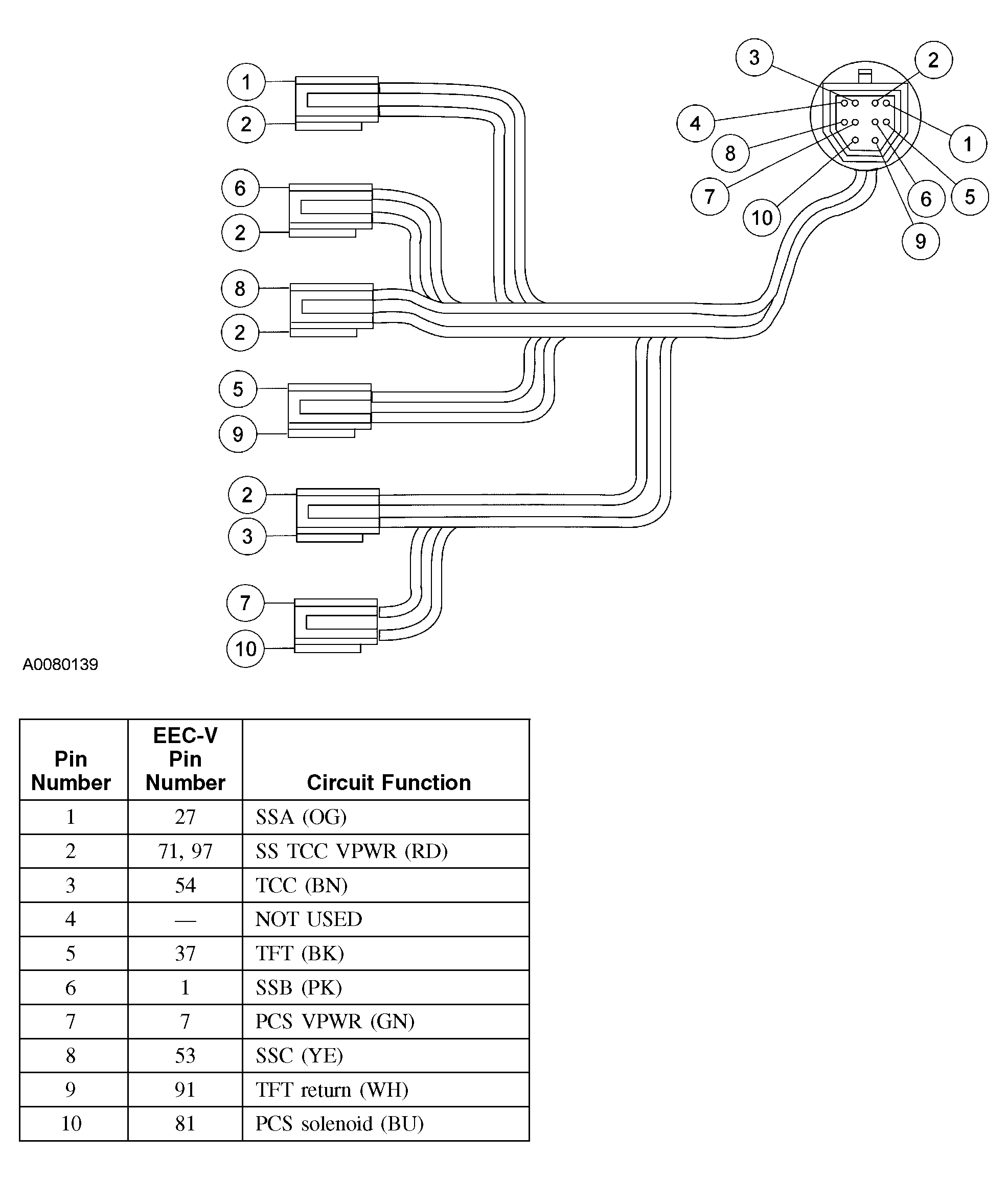

Fig 2: Transaxle Internal Harness Diagram
G04004539Courtesy of FORD MOTOR CO.

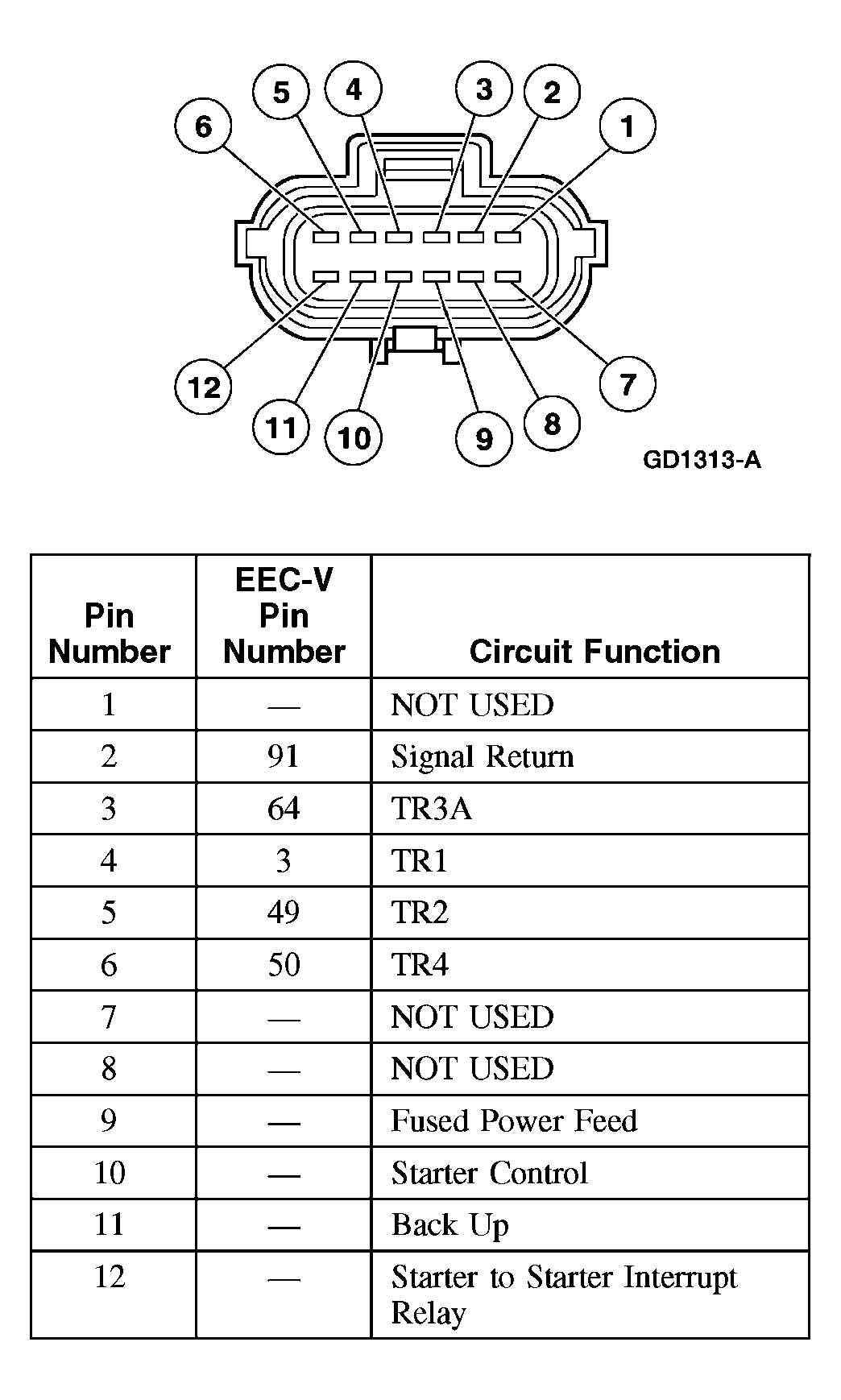

Fig 3: Digital Transmission Range (TR) Sensor Connector
G04004540Courtesy of FORD MOTOR CO.

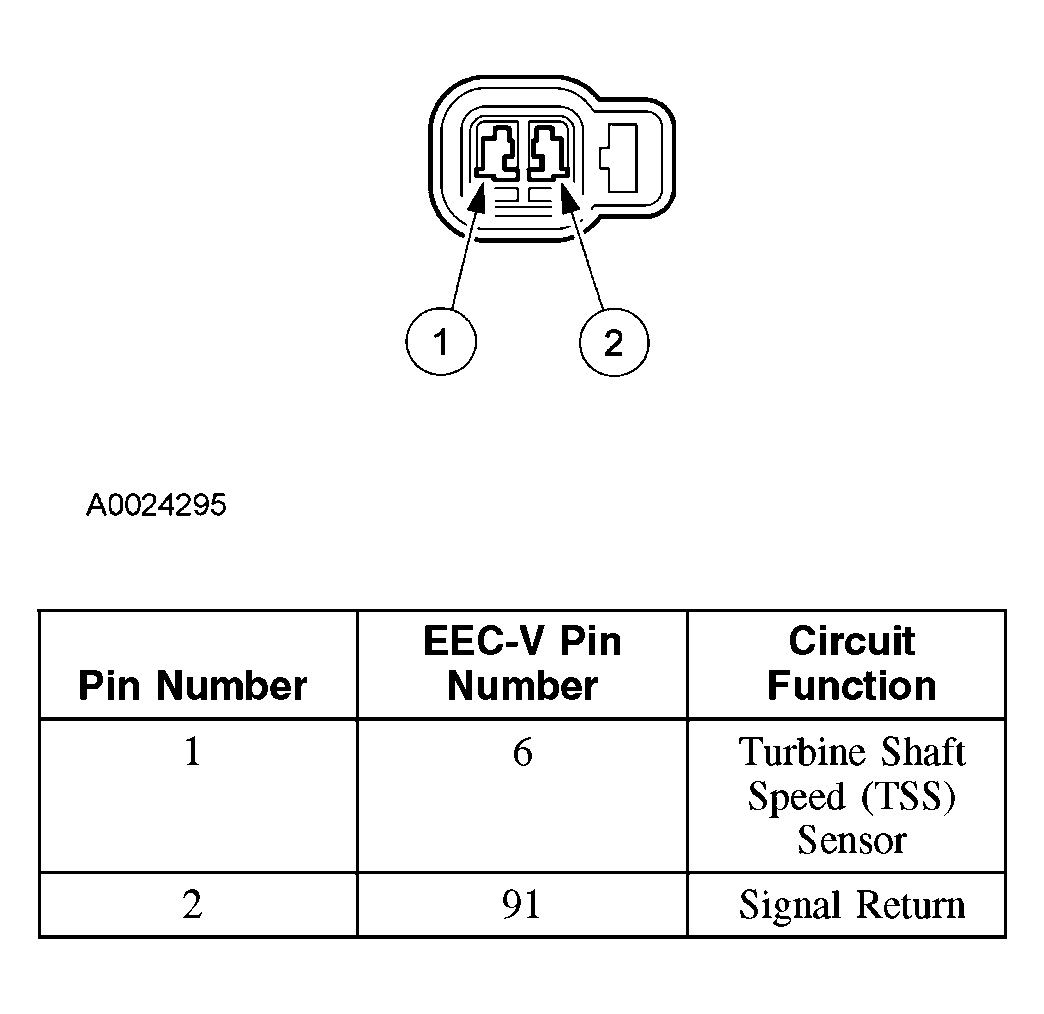

Fig 4: Turbine Shaft Speed (TSS) Sensor Connector
G04004541Courtesy of FORD MOTOR CO.

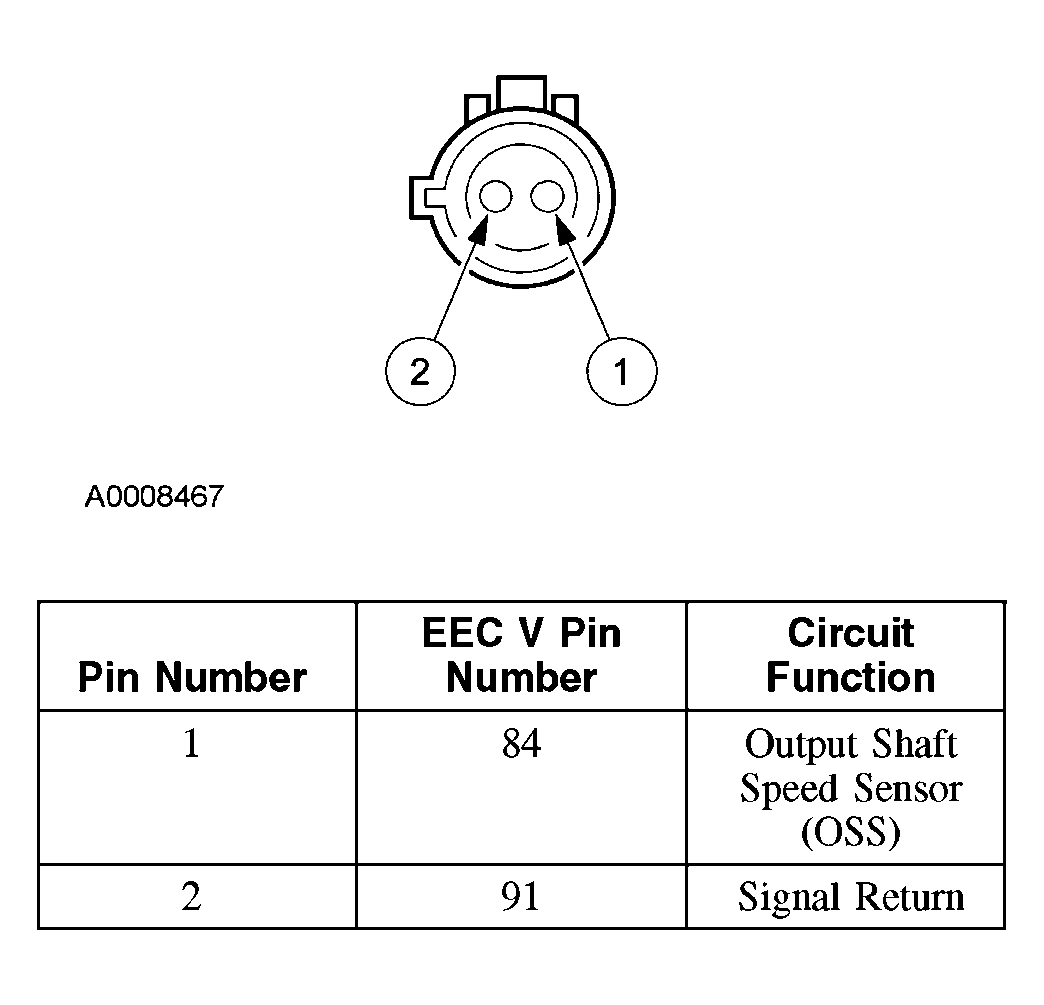

Fig 5: Output Shaft Speed (OSS) Sensor Connector
G04004542Courtesy of FORD MOTOR CO.
