Driven Sprocket Support: Assembly

  1. Make sure that the seals are mated correctly during installation.

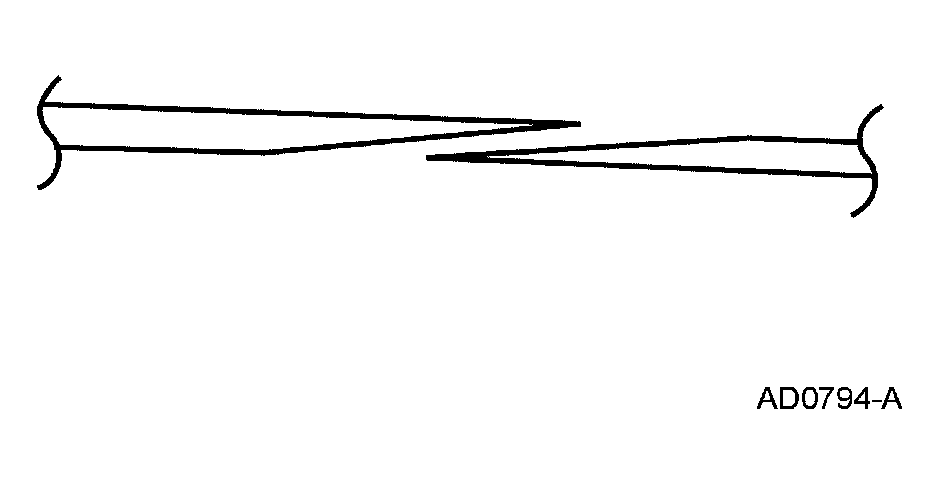

    Fig 1: Identifying Seal Ring Mating
    G03957047Courtesy of FORD MOTOR CO.
    2. CAUTION: The seal rings must be installed correctly. Transmission failure could result.

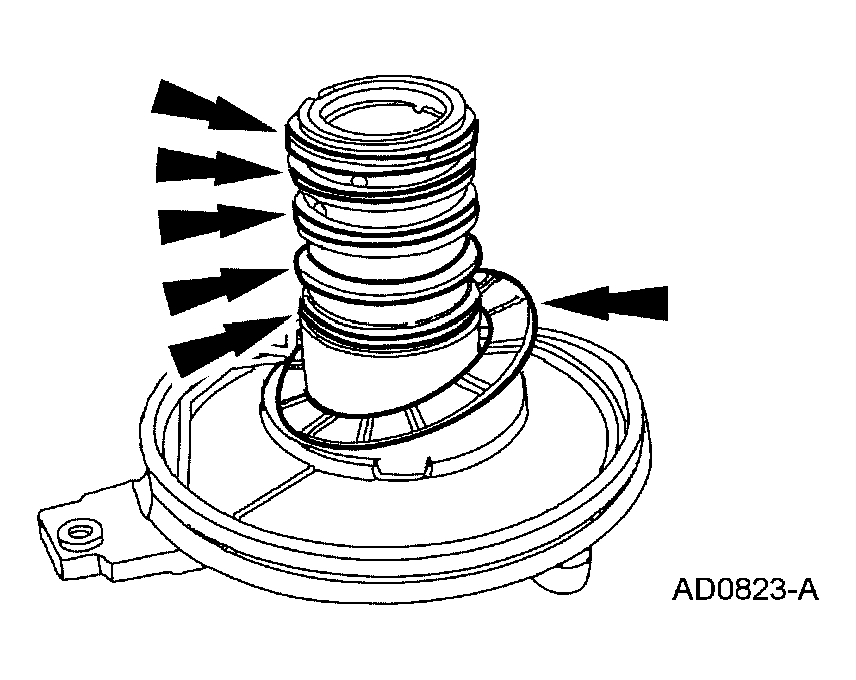

    Fig 2: Installing New Teflon® Seals And No. 5 Thrust Washer
    G03957107Courtesy of FORD MOTOR CO.
  2. Install new Teflon® seals and the No. 5 thrust washer.
