Driven Sprocket: Check

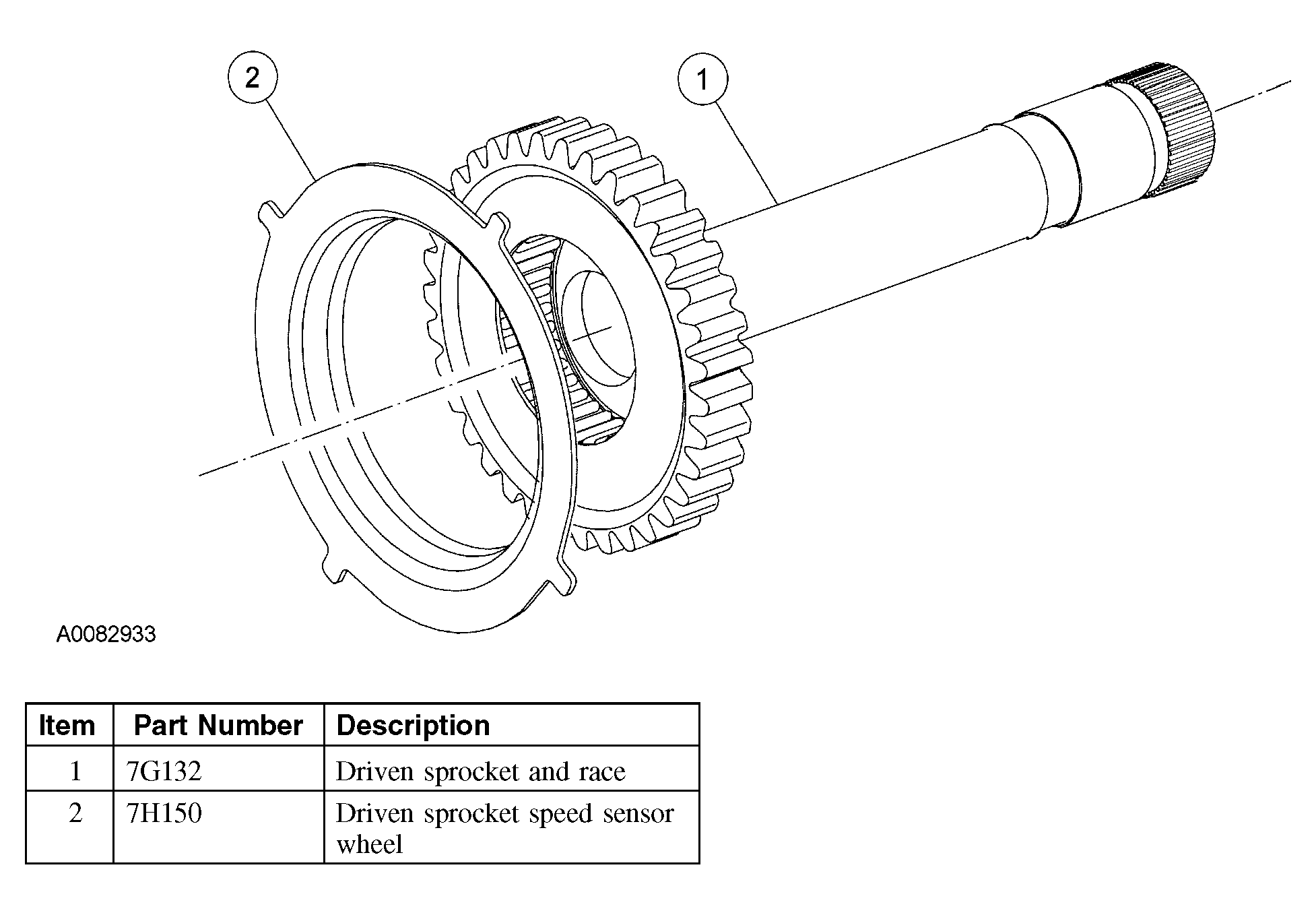

Fig 1: Identifying Driven Sprocket Components

Courtesy of FORD MOTOR CO.

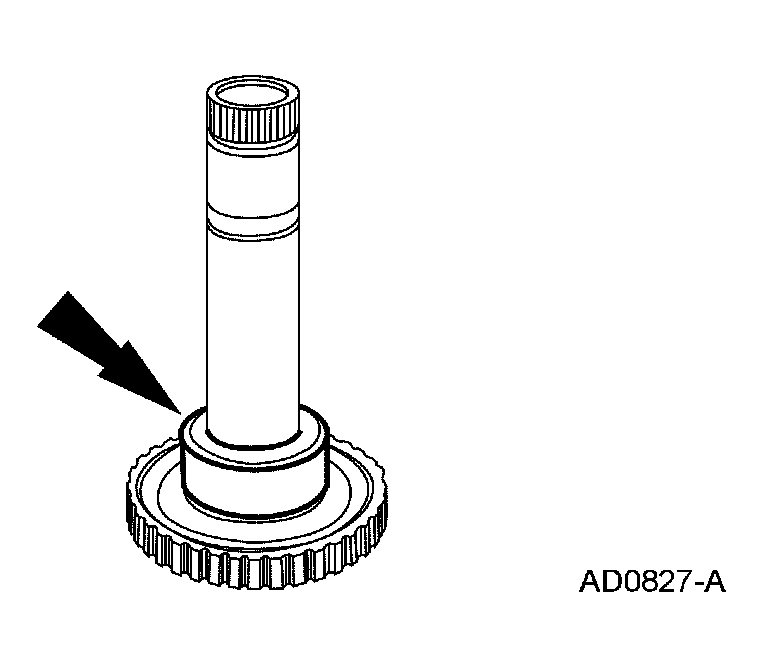

Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, install a new driven sprocket.
Inspect the sensor wheel for bent or damaged tabs.

Fig 2: Inspecting Sensor Wheel For Bent Or Damaged Tabs
Courtesy of FORD MOTOR CO.

NOTE: Install a new speed sensor wheel only if damaged.

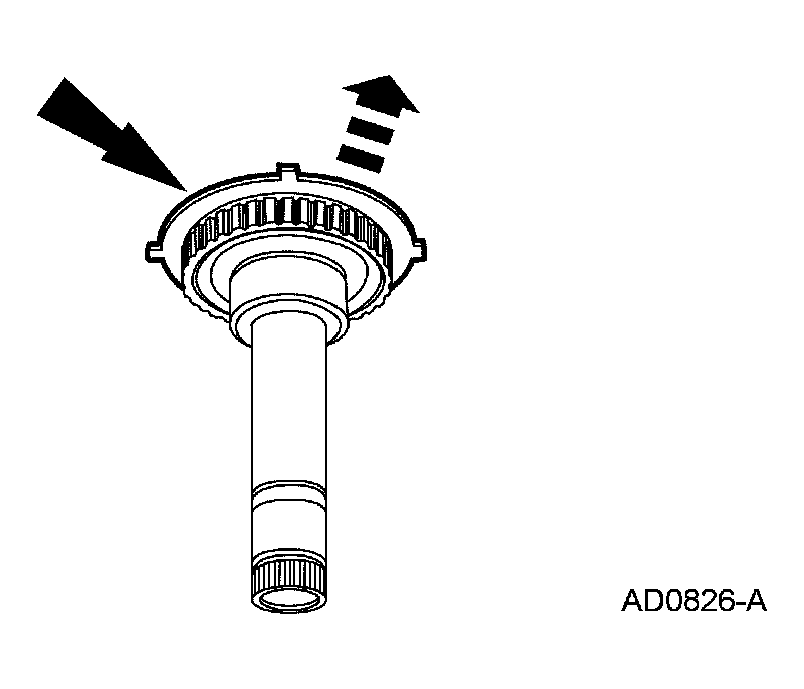

Fig 3: Removing Speed Sensor Wheel

Courtesy of FORD MOTOR CO.

Remove the speed sensor wheel.
Using the special tools, install a new speed sensor ring.

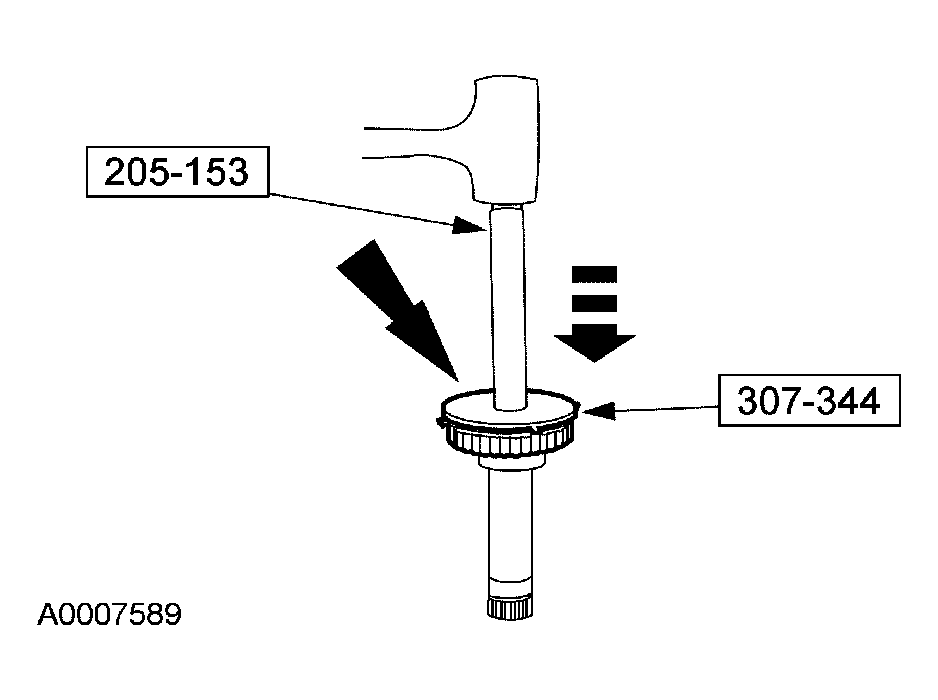

Fig 4: Installing Speed Sensor Ring
Courtesy of FORD MOTOR CO.
