Final Drive: Assembly

NOTE: If excessive wobble or rotational binding or damage is found, a new final drive planet and carrier will need to be installed.

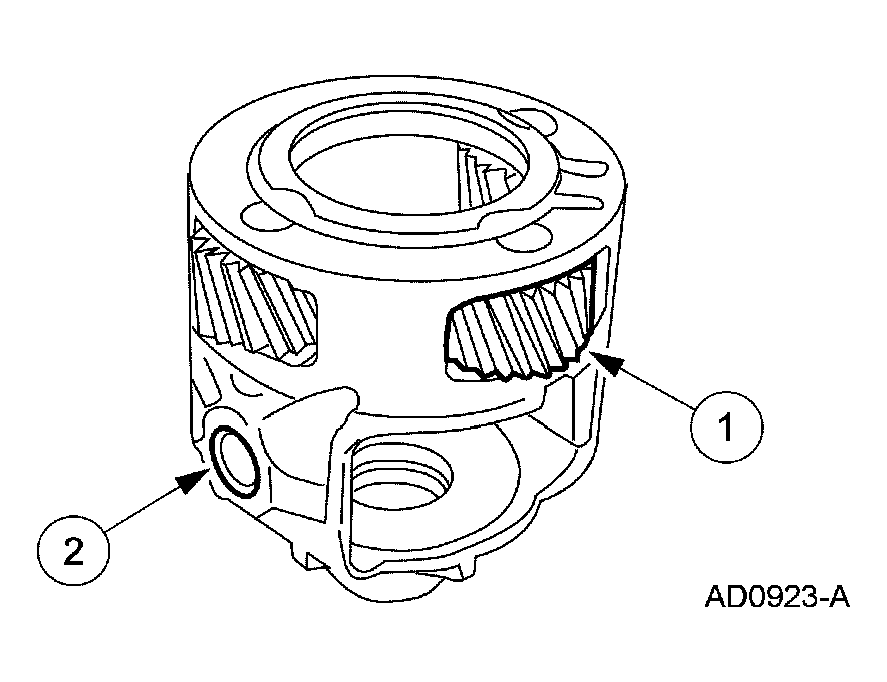

  1. Inspect the differential pinion and side gears for looseness, discoloration, cracks or excessive gear wear.
    1. Inspect the final drive planet gears.
    2. Inspect the pinion shaft bores.
    Fig 1: Inspecting Differential Pinion And Side Gears For Looseness, Discoloration, Cracks Or Excessive Gear Wear
    G03957262Courtesy of FORD MOTOR CO.

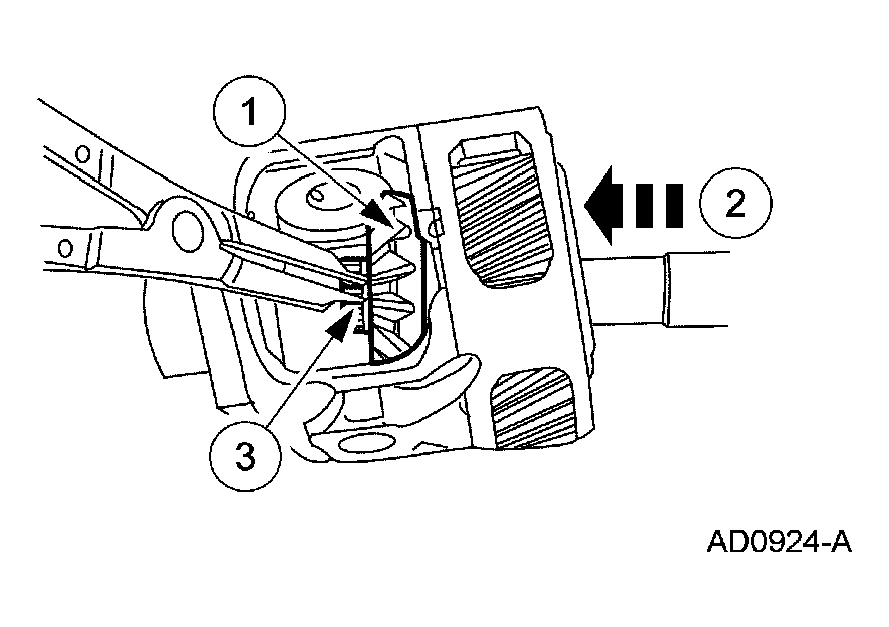

  2. Install the differential side gear and differential side gear thrust washer.
    1. Install the differential side gear and differential side gear thrust washer.
    2. Install the output shaft.
    3. Install the retaining ring.
    Fig 2: Installing Differential Side Gear And Differential Side Gear Thrust Washer
    G03957263Courtesy of FORD MOTOR CO.

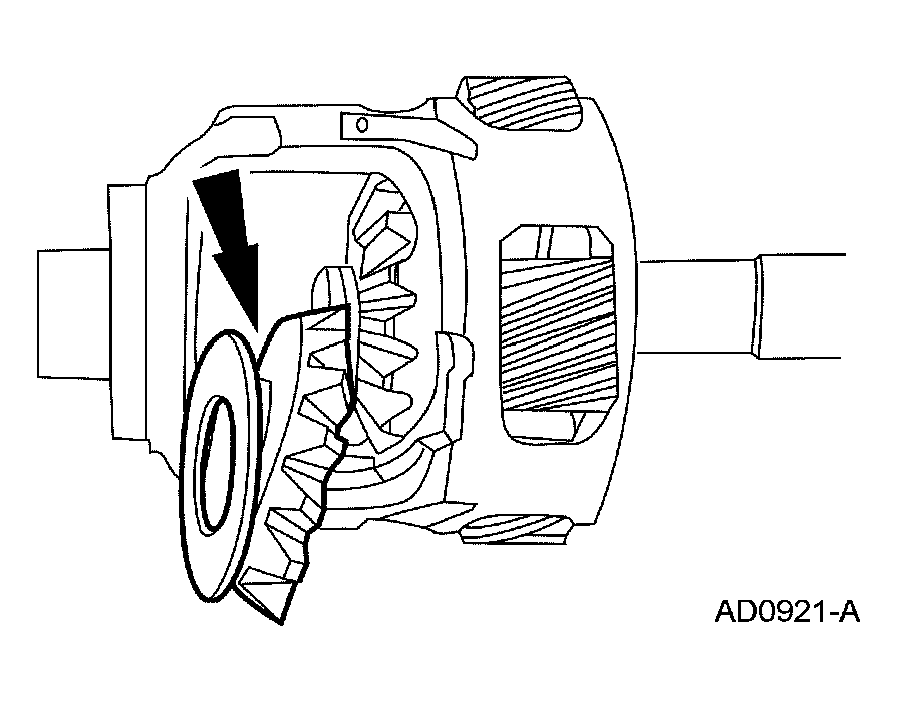

  3. Install the differential side gear and differential side gear thrust washer.
    Fig 3: Installing Differential Side Gear And Differential Side Gear Thrust Washer
    G03957260Courtesy of FORD MOTOR CO.

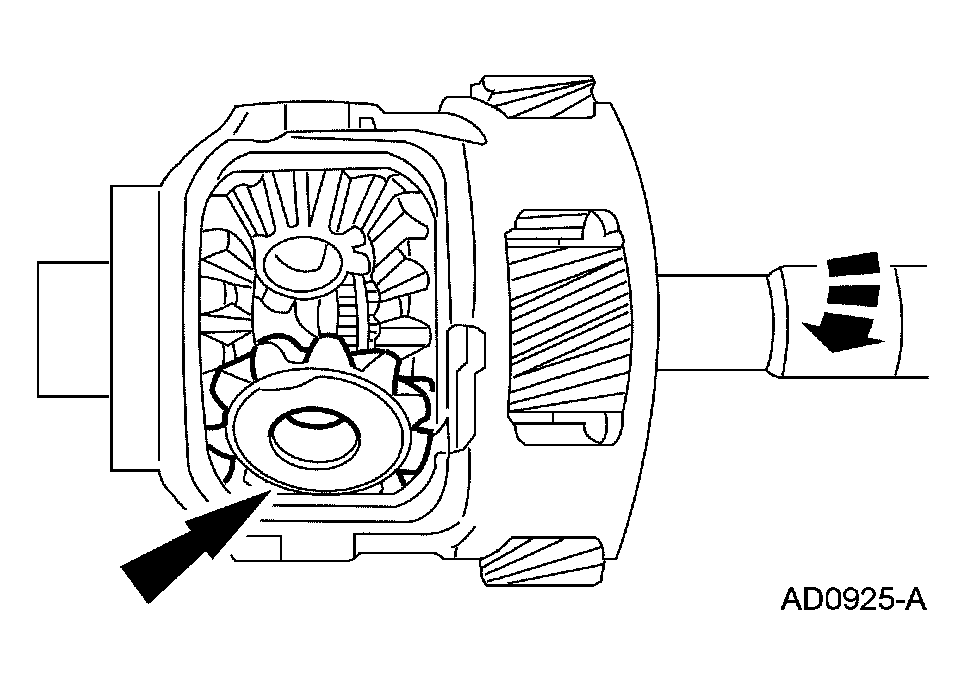

  4. Install the differential pinion gears, and differential pinion thrust washers.
    Fig 4: Installing Differential Pinion Gears, And Differential Pinion Thrust Washers
    G03957265Courtesy of FORD MOTOR CO.

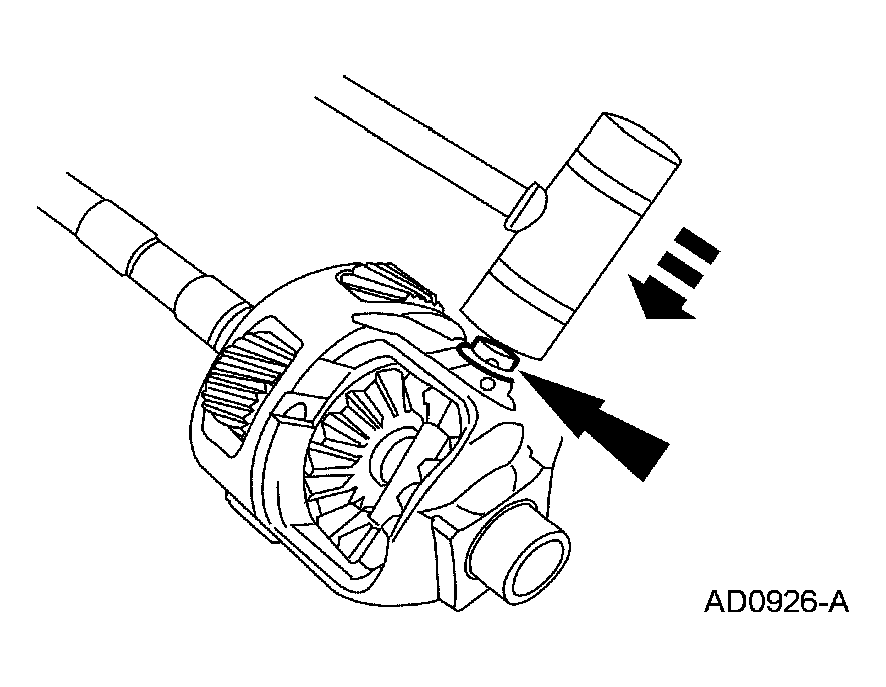

  5. Install the differential pinion shaft.
    Fig 5: Installing Differential Pinion Shaft
    G03957266Courtesy of FORD MOTOR CO.

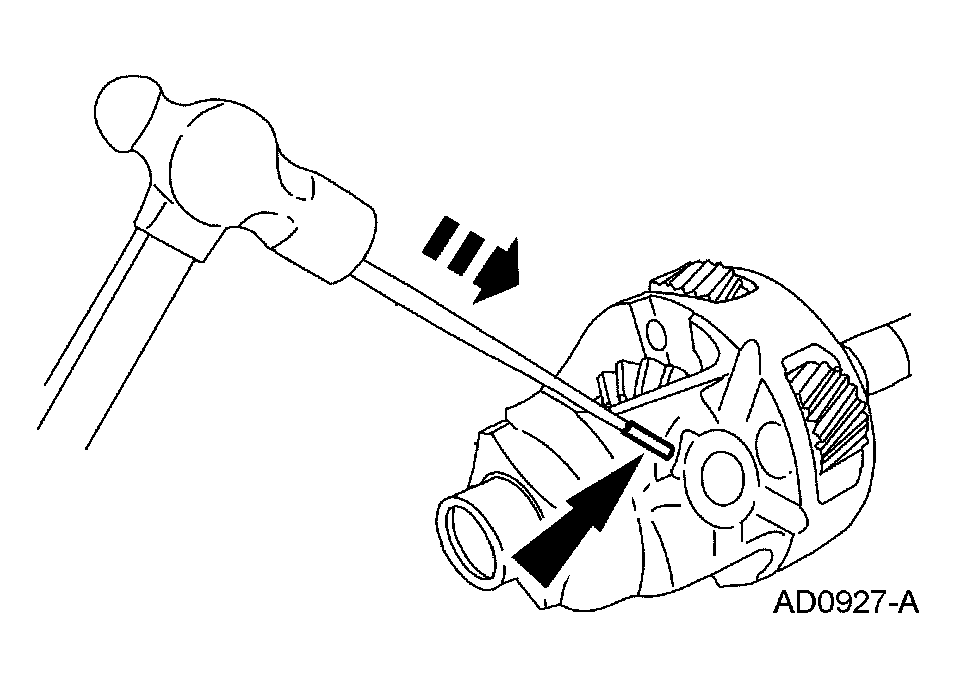

  6. Install the differential pinion shaft roll pin.
    Fig 6: Installing Differential Pinion Shaft Roll Pin
    G03957267Courtesy of FORD MOTOR CO.

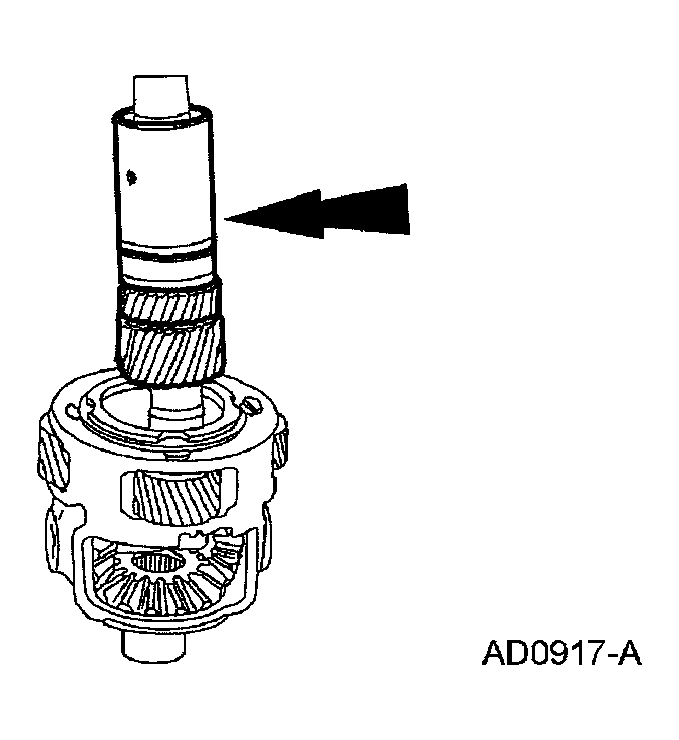

  7. Install the final drive sun gear and deflector assembly.
    Fig 7: Installing Final Drive Sun Gear And Deflector Assembly
    G03957256Courtesy of FORD MOTOR CO.

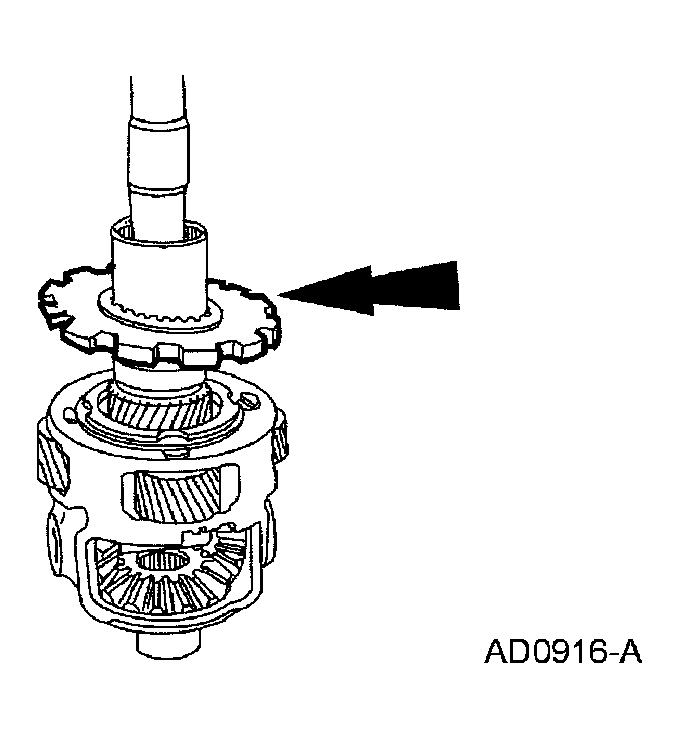

  8. Install the park gear.
    Fig 8: Installing Park Gear
    G03957255Courtesy of FORD MOTOR CO.

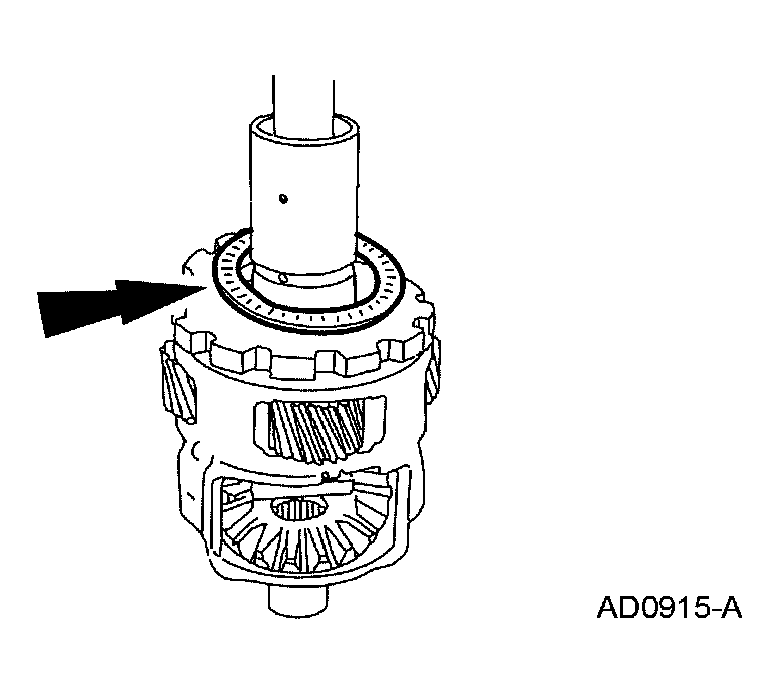

  9. Install the No. 16 final drive gear front thrust bearing.
    Fig 9: Installing No. 16 Final Drive Gear Front Thrust Bearing
    G03957254Courtesy of FORD MOTOR CO.

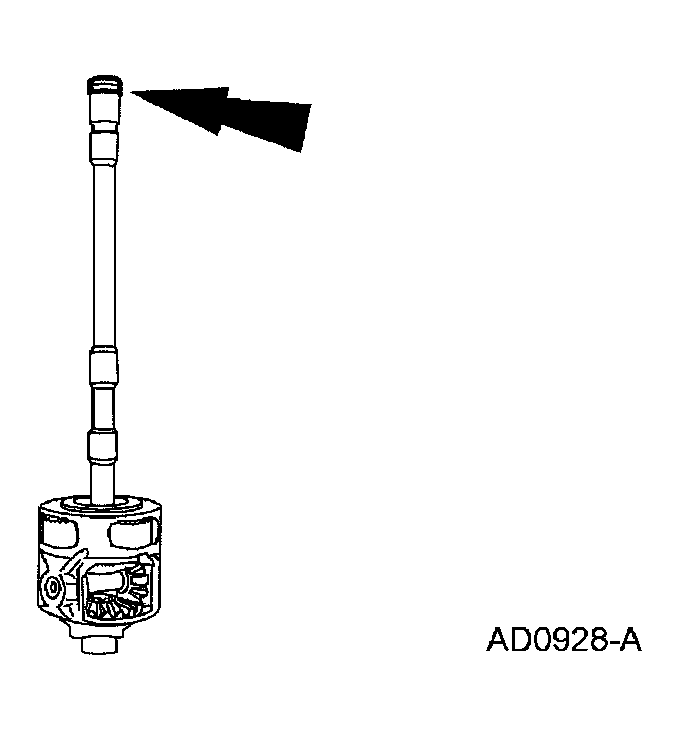

  10. Install new retaining circle clips.
    Fig 10: Installing New Retaining Circle Clips
    G03957271Courtesy of FORD MOTOR CO.

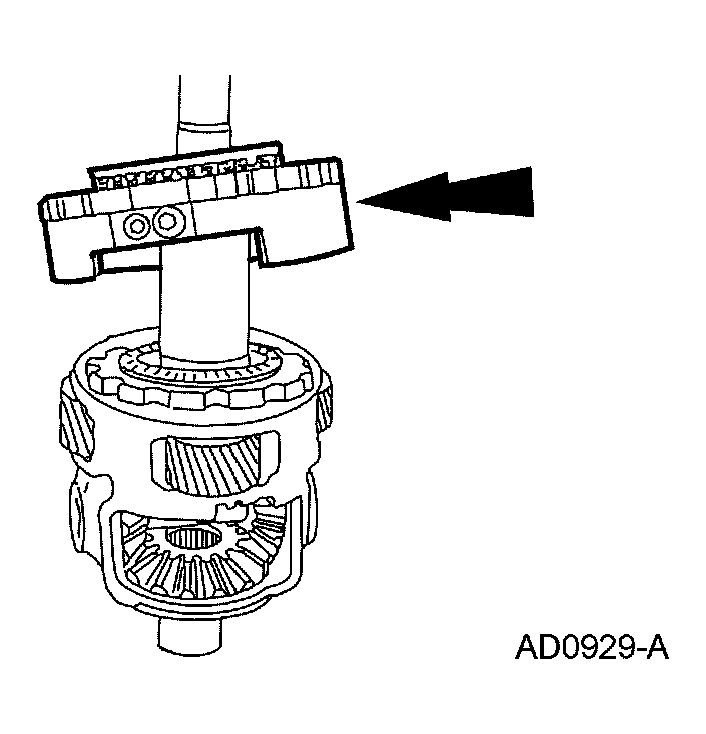

  11. Install the low intermediate clutch piston and rear planet support.
    Fig 11: Installing Low Intermediate Clutch Piston And Rear Planet Support
    G03957272Courtesy of FORD MOTOR CO.
