Main Control Valve Body: Disassembly

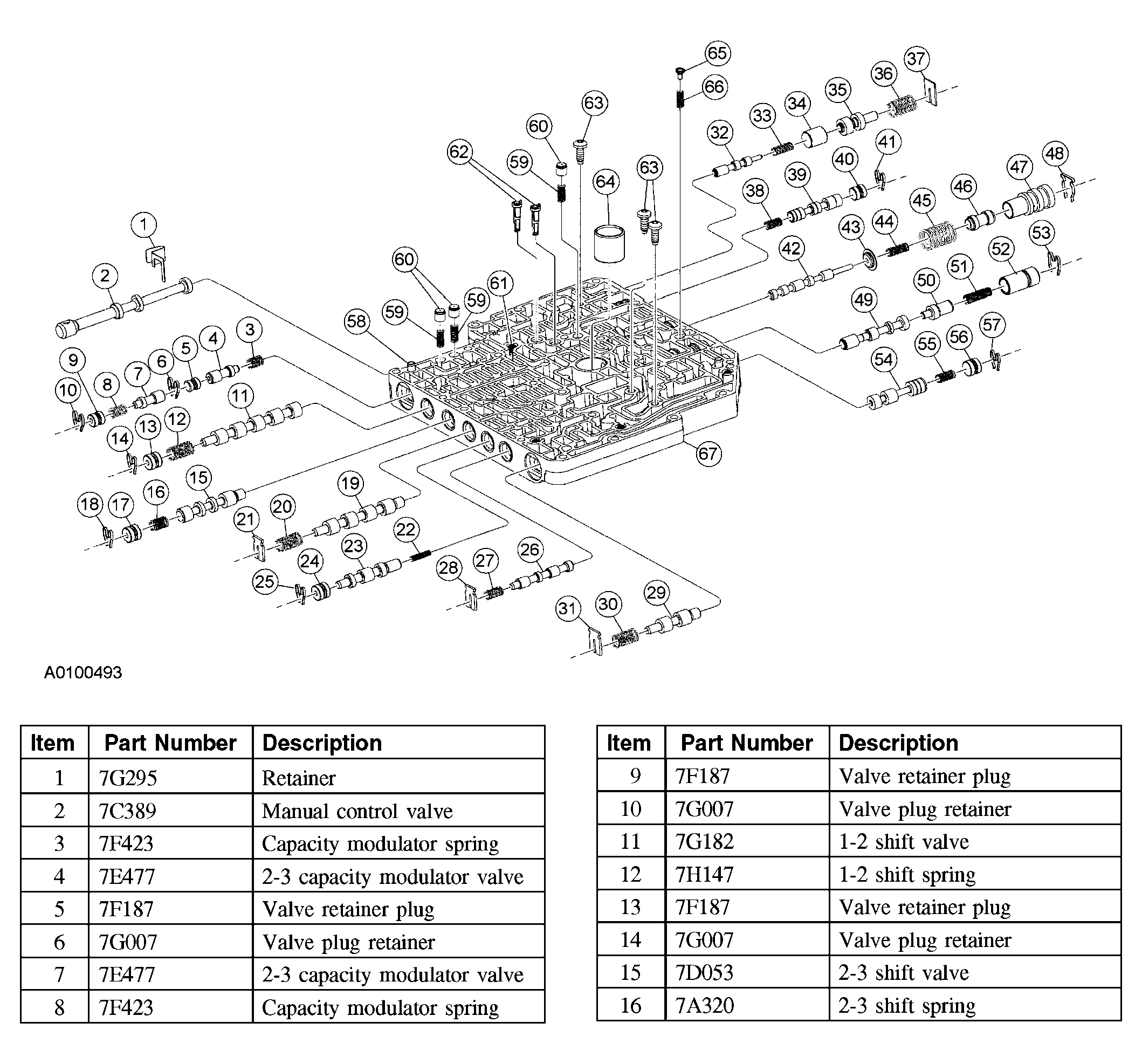

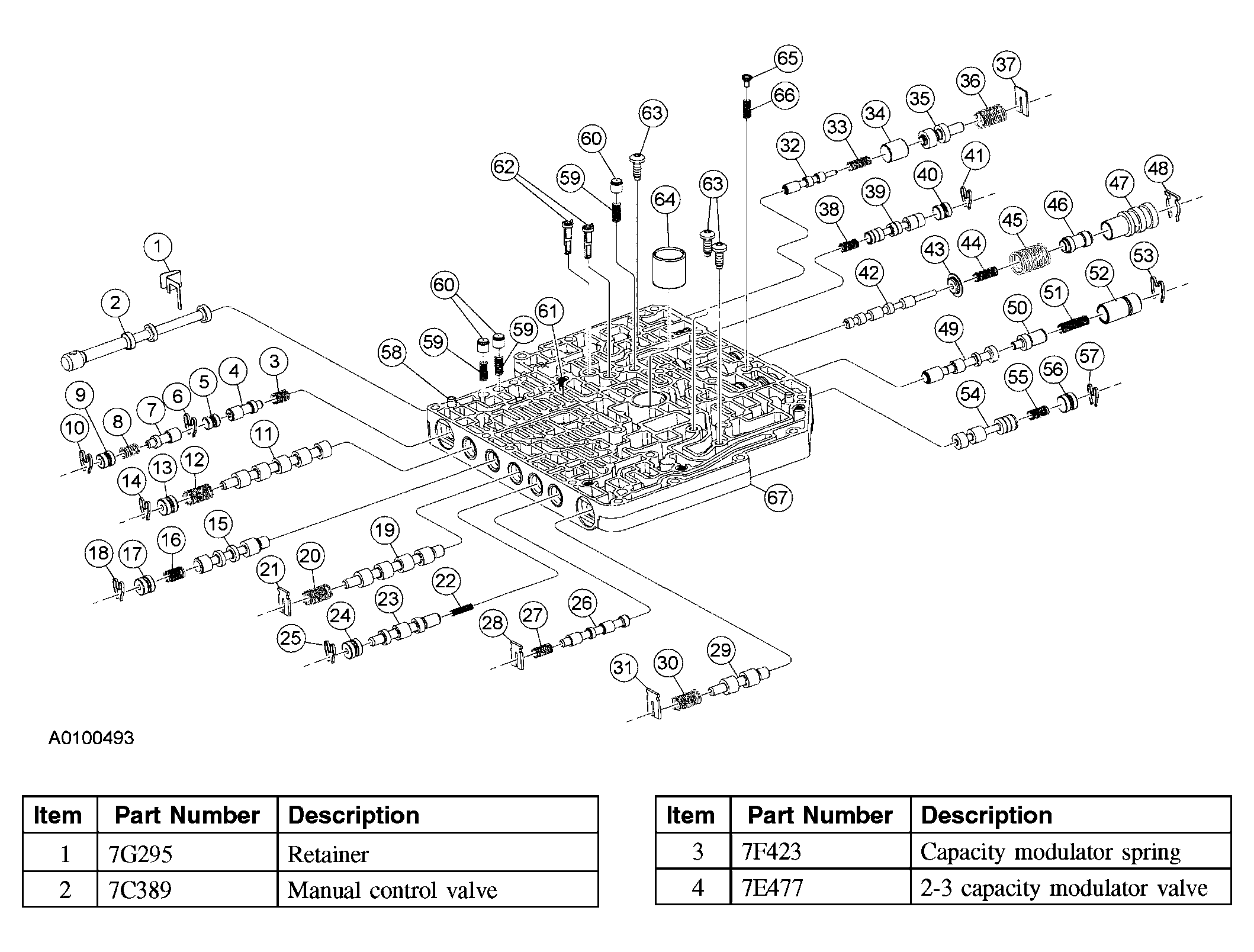

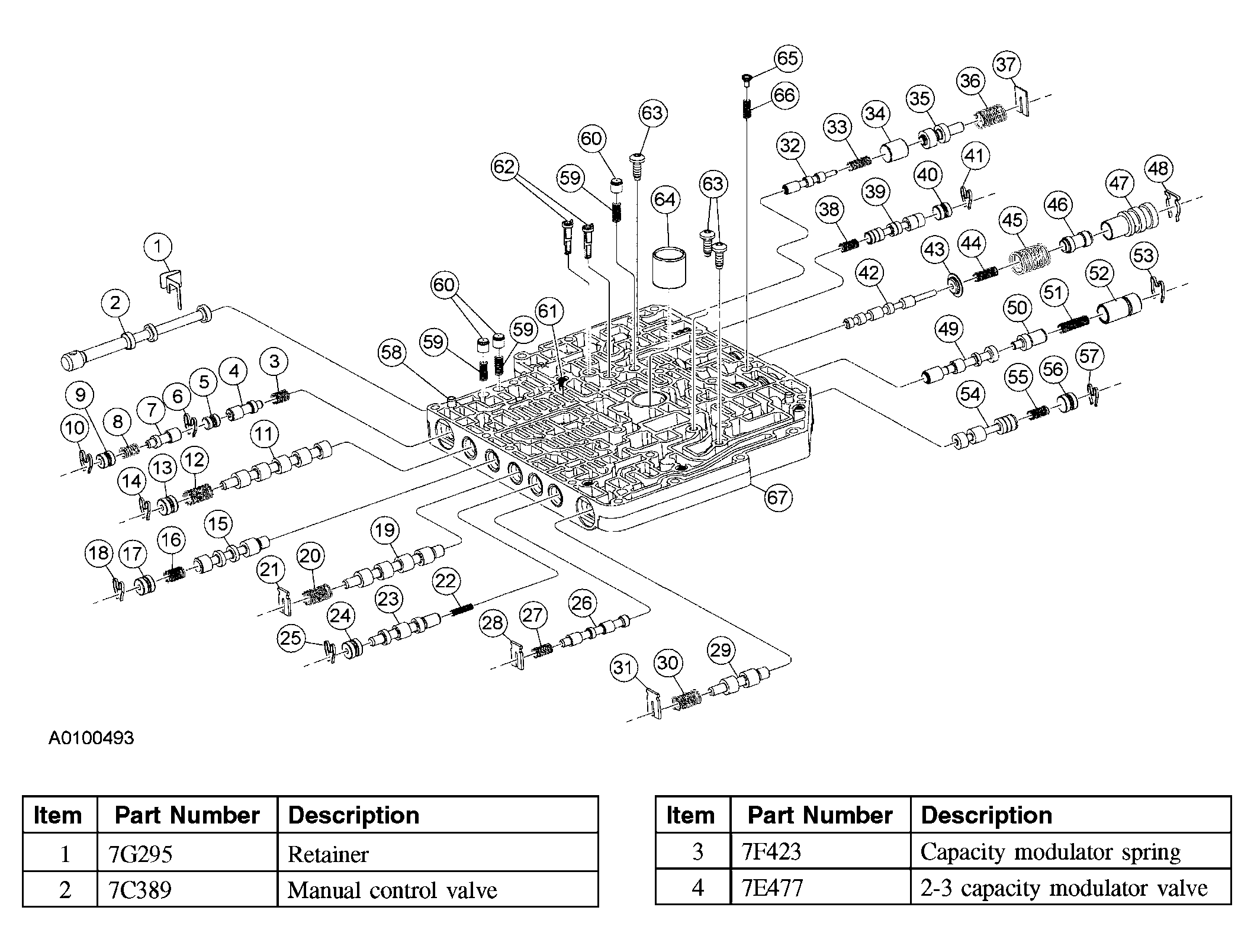

Fig 1: Identifying Main Control Valve Body Components
G04004933Courtesy of FORD MOTOR CO.

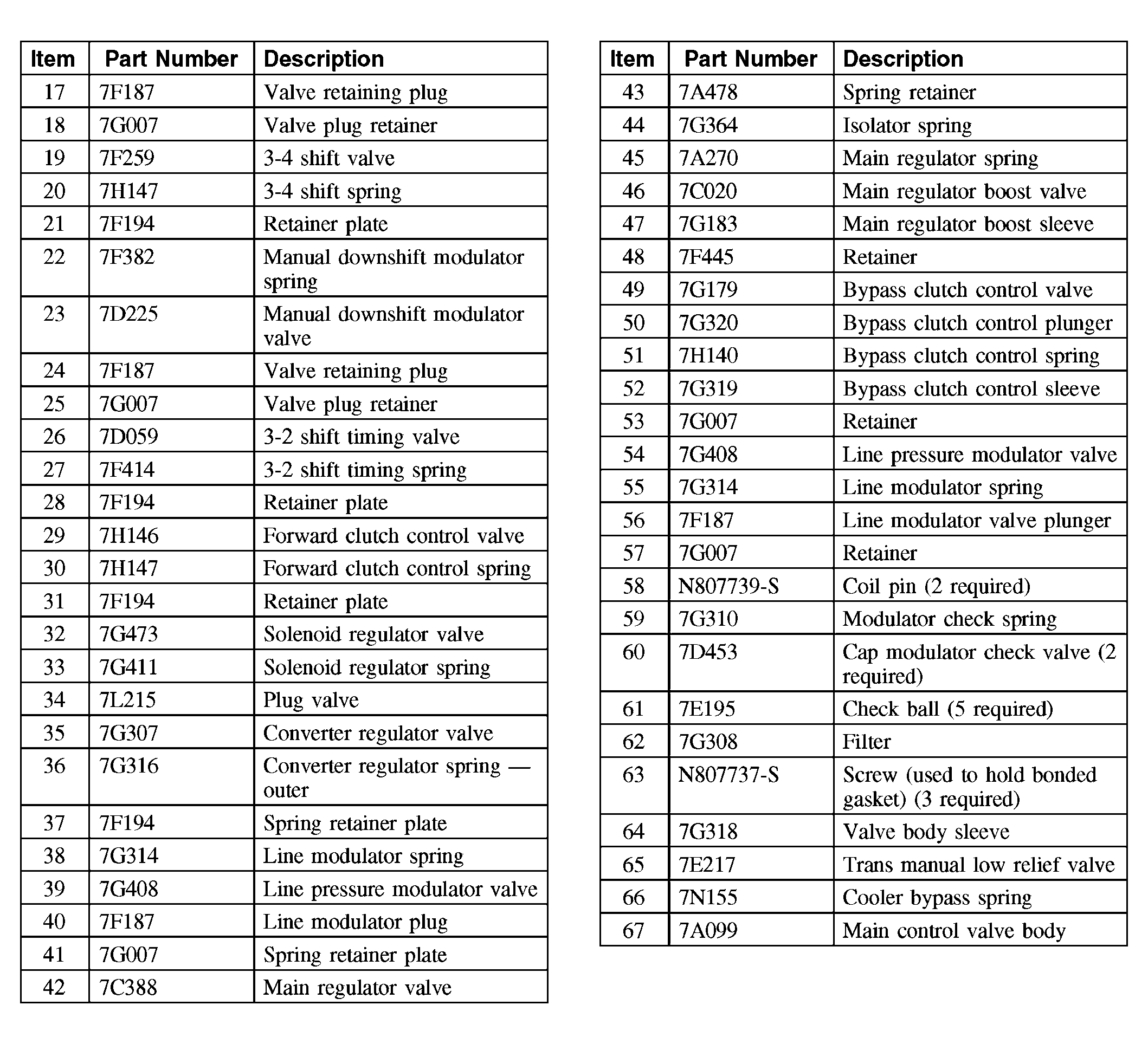

Fig 2: Identifying Main Control Valve Body Component Descriptions
G04004934Courtesy of FORD MOTOR CO.

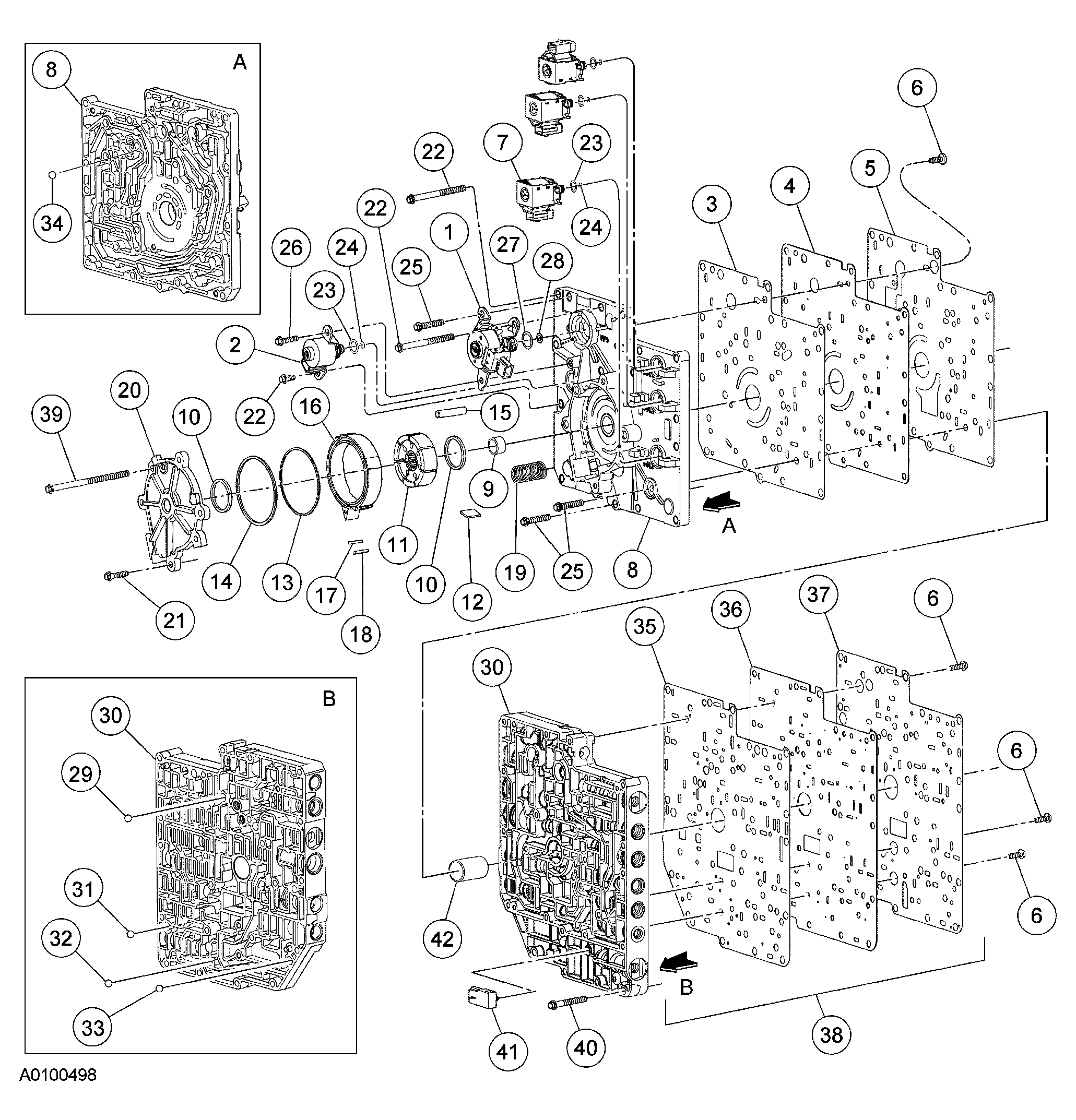

Fig 3: Identifying Main Control Pump Assembly Components
G03957051Courtesy of FORD MOTOR CO.

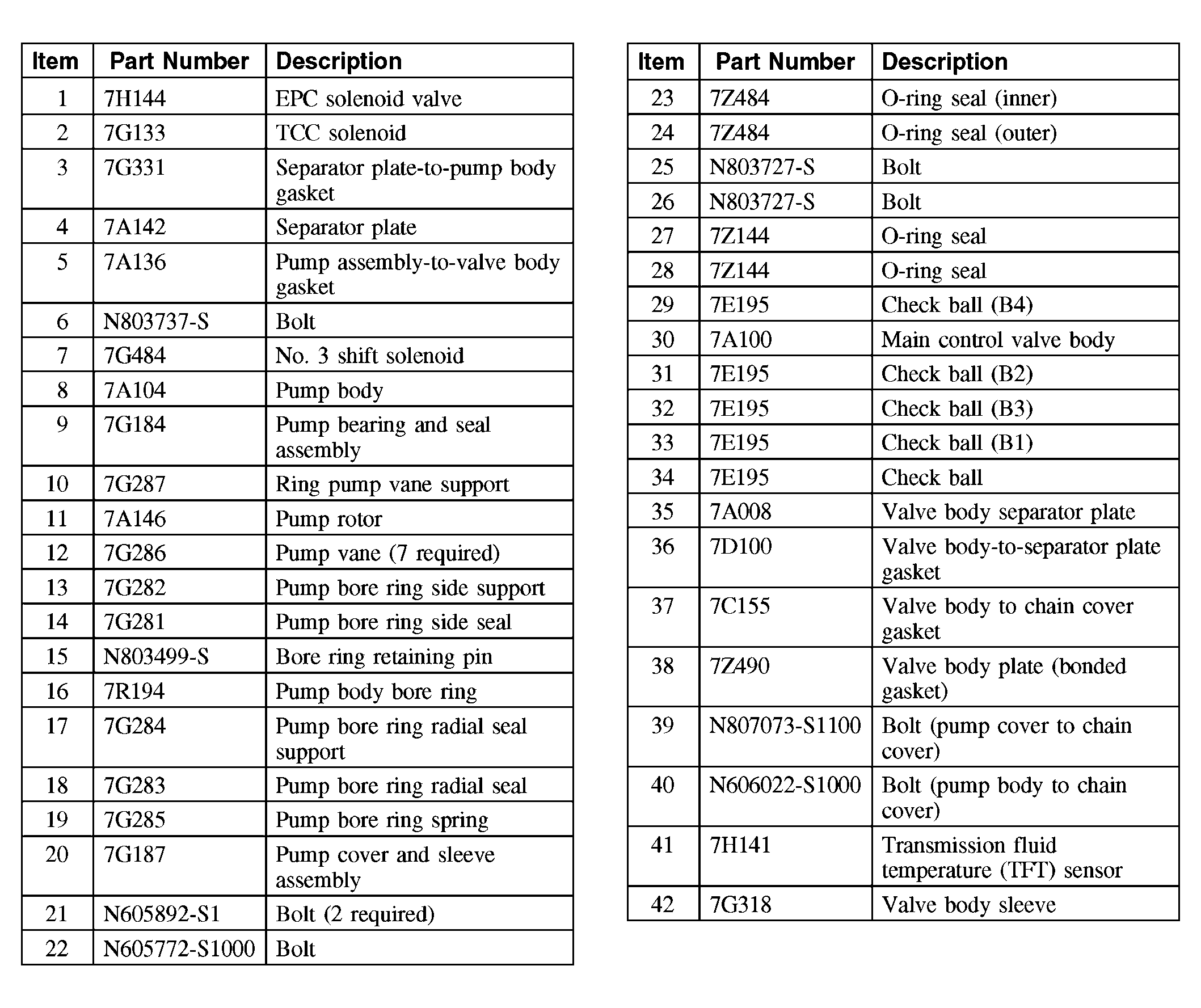

Fig 4: Identifying Main Control Pump Assembly Component Descriptions
G04004936Courtesy of FORD MOTOR CO.
  1. Remove the pump assembly.
    • Remove the bolts.
    • Remove the pump.

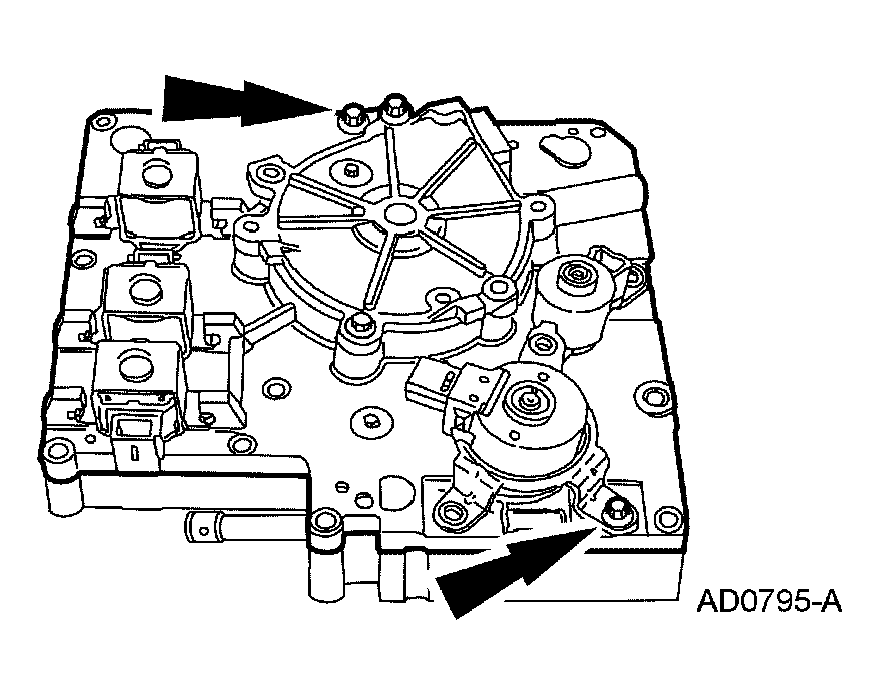

    Fig 5: Removing Pump Assembly
    G03957053Courtesy of FORD MOTOR CO.
    2. NOTE: The valve body separator plate has a bonded gasket.

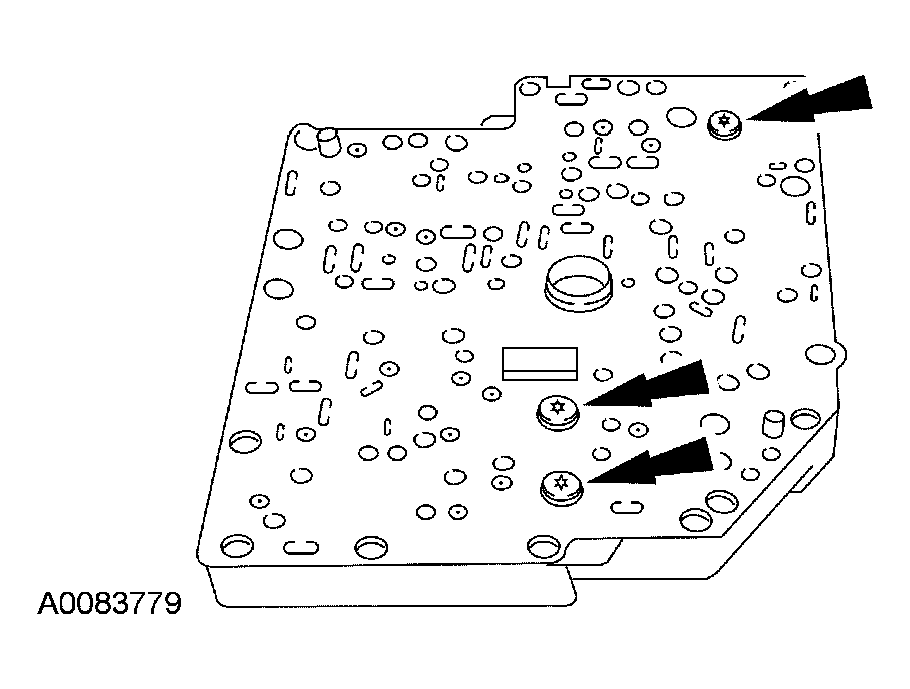

    Fig 6: Removing Separator Plate
    G03957054Courtesy of FORD MOTOR CO.
  2. Remove the bolts and the separator plate.
    3. NOTE: Be sure to note the location of the check balls.

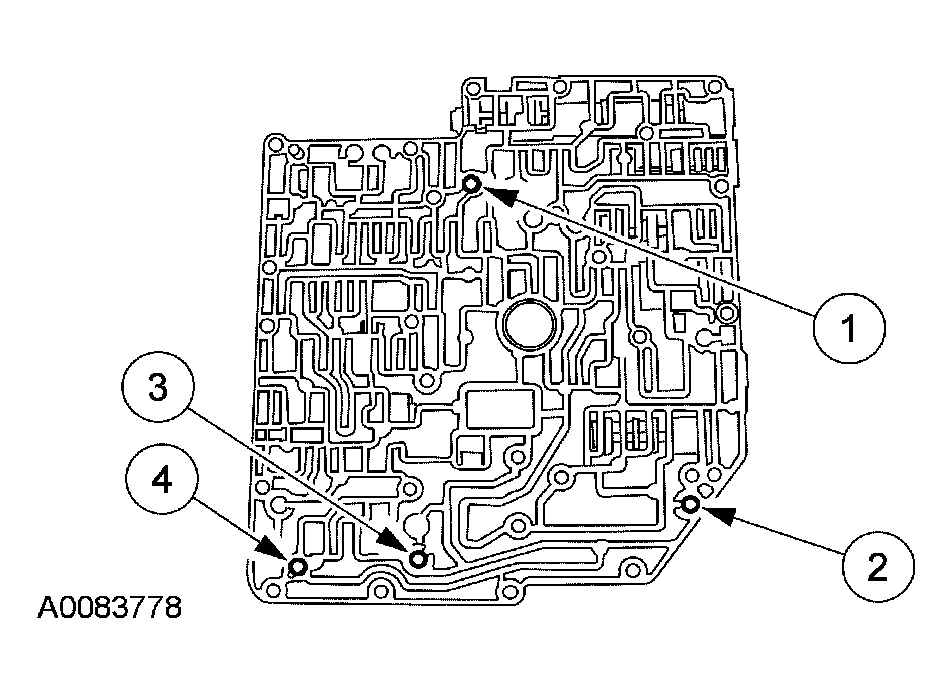

    Fig 7: Identifying Check Ball Locations
    G03957055Courtesy of FORD MOTOR CO.
  3. Remove the check balls.
    CHECK BALLS IDENTIFICATION

    Item Check Ball Identification
    1 B4
    2 B1
    3 B3
    4 B2
    4. NOTE: The relief valve springs are not interchangeable.

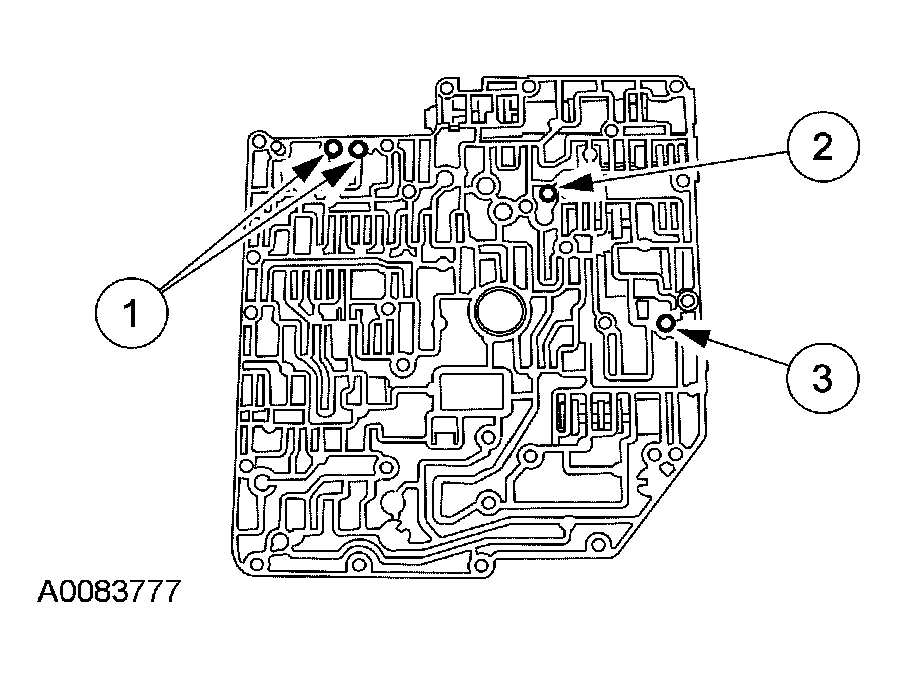

    Fig 8: Identifying Relief Valve Spring Locations
    G03957056Courtesy of FORD MOTOR CO.
  4. Tag and mark the location of the relief valve springs.
    1. Remove the modulator check valve and springs.
    2. Remove the modulator check valve and drain back spring.
    3. Remove the manual low relief valve and cooler bypass spring.
  5. Remove and discard the filters.
    1. Remove the solenoid regulator filter.
    2. Remove the torque converter clutch filter.

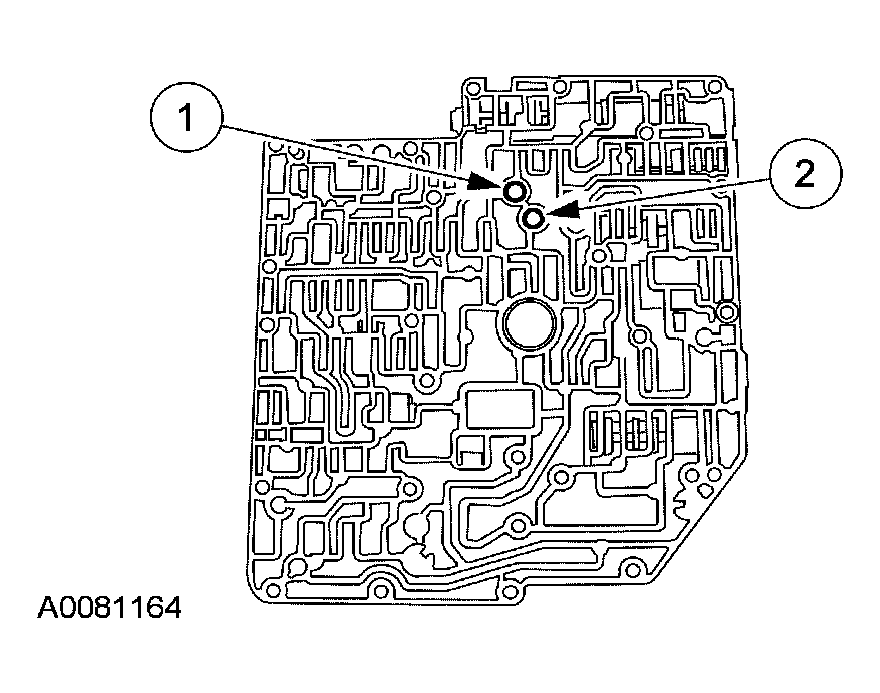

    Fig 9: Removing Filters
    G03957057Courtesy of FORD MOTOR CO.
    6. CAUTION: Most valves are aluminum and cannot be removed using a magnet. Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange the parts as they are removed to avoid mixing similar pieces.
    CAUTION: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.
  6. Remove the individual valves and springs by removing the retaining clips and bore plugs. See Figure for valve and spring locations. Clean valves, springs and main control valve body.
  7. Inspect the valve body sleeve for wear or damage.
    • Verify that the hole in the valve body sleeve aligns with the hole in the circuit passage.
    • Verify that the edge of the sleeve is 5.5 mm (0.21 in) above the valve body surface.

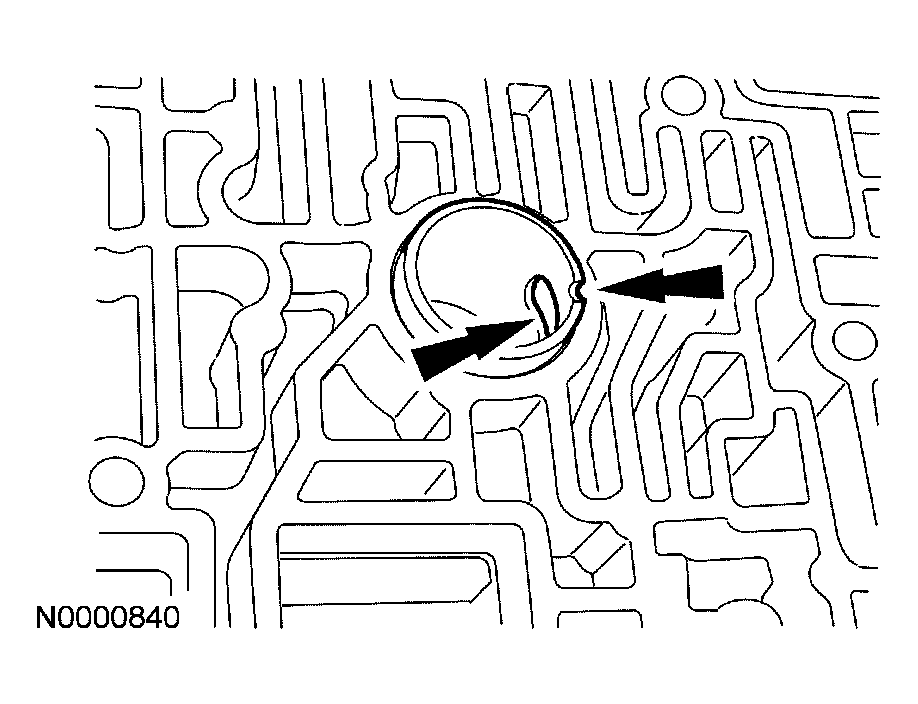

    Fig 10: Inspecting Valve Body Sleeve For Wear Or Damage
    G03957058Courtesy of FORD MOTOR CO.
    8. CAUTION: All the valves must be removed from the valve body during replacement of the sleeve to prevent possible damage.
    CAUTION: The machined passage surfaces of the valve body that contact the press supports should be protected during sleeve replacement.
    CAUTION: Do not press with excessive force when installing a new sleeve.

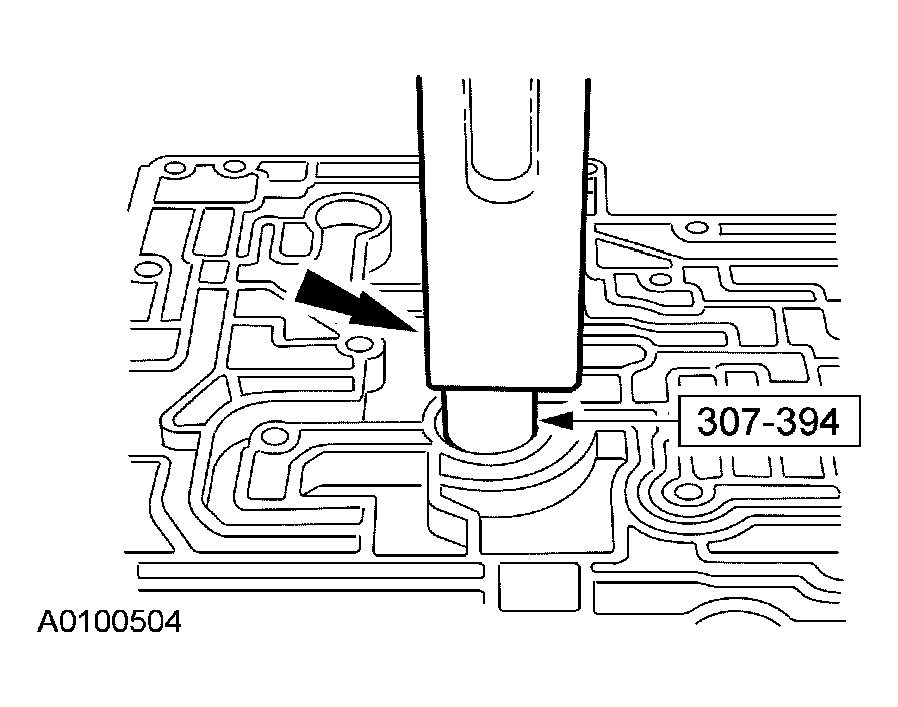

    Fig 11: Pushing Sleeve From Valve Body
    G03957059Courtesy of FORD MOTOR CO.
  8. If a new sleeve is required, use the special tool and a suitable press to push the sleeve from the valve body.
