Overdrive Servo: Assembly

  1. Install the servo piston seal.

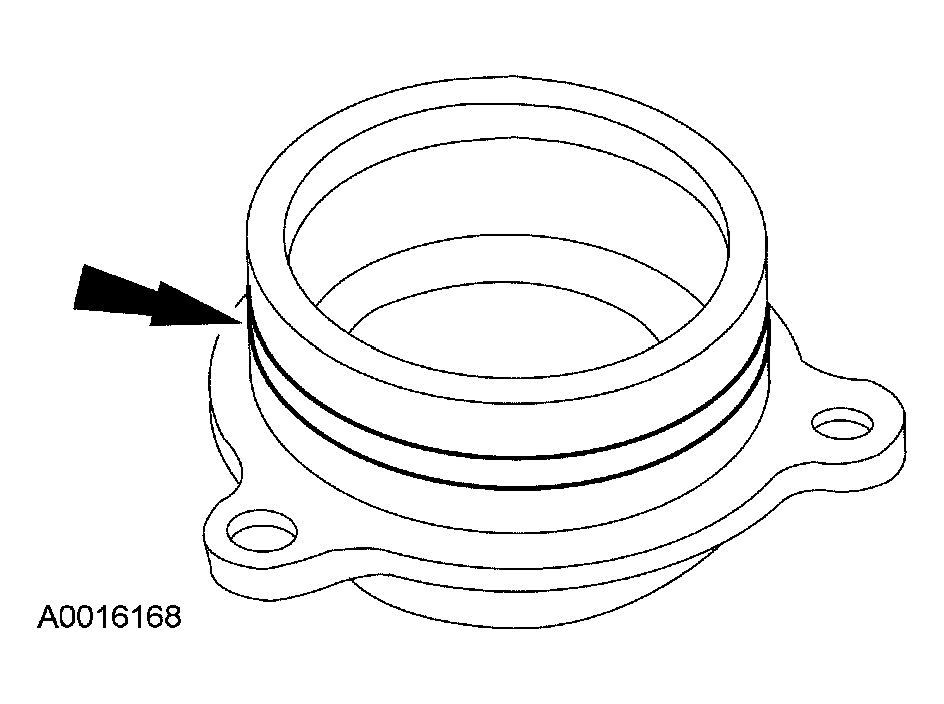

    Fig 1: Installing Servo Piston Seal
    G03957276Courtesy of FORD MOTOR CO.
    2. NOTE: Lubricate the piston seals with petroleum jelly prior to installation.

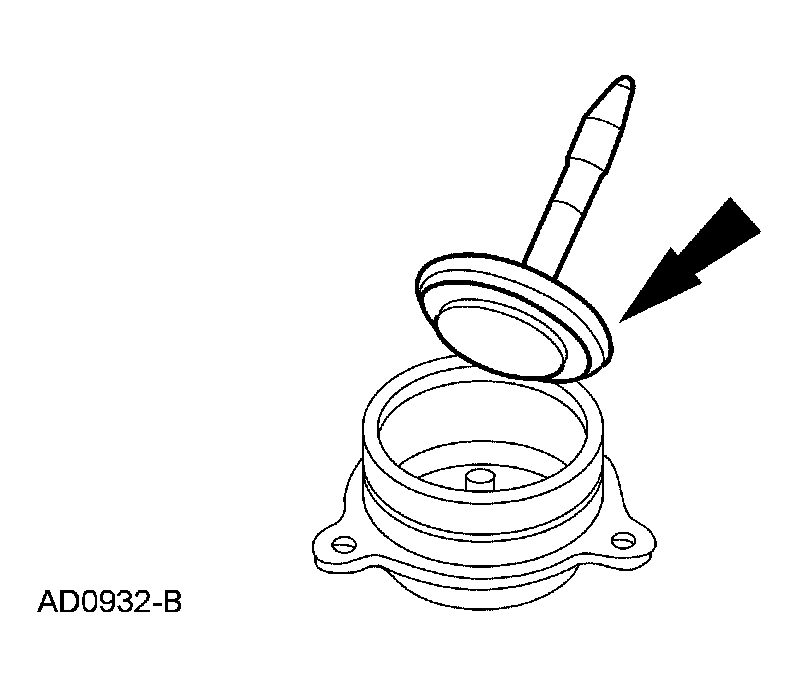

    Fig 2: Installing Overdrive Servo Piston And Rod Assembly
    G03957275Courtesy of FORD MOTOR CO.
  2. Install the overdrive servo piston and rod assembly.
  3. Install the overdrive servo piston return spring.

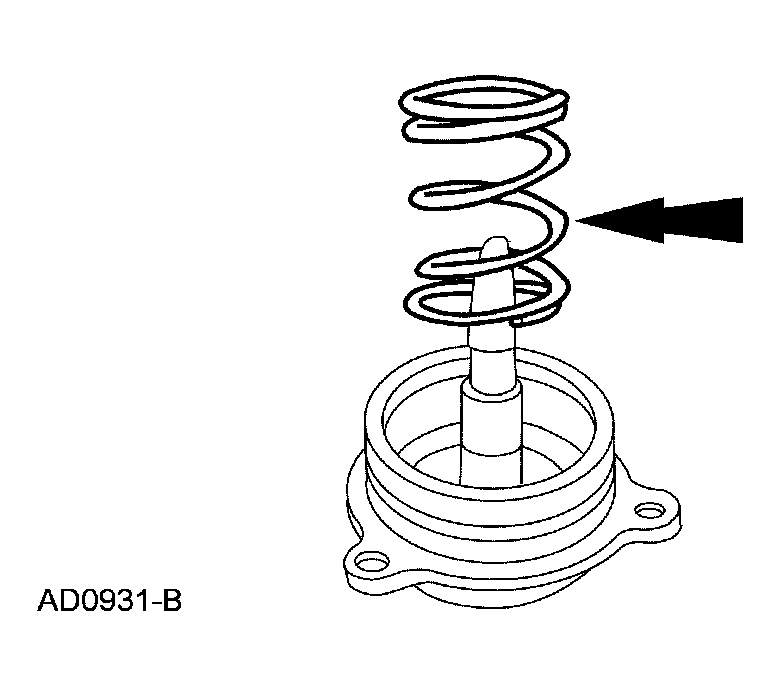

    Fig 3: Installing Overdrive Servo Piston Return Spring
    G03957274Courtesy of FORD MOTOR CO.
