Planet Assembly: Assembly

  1. Install the retaining ring.
    1. Install rear planetary gear assembly.
    2. Install the No. 13 needle bearing with black side of bearing facing up.
    3. Install the front planetary gear assembly.
    4. Install the retaining ring.
    Fig 1: Installing Planetary Gear Assembly Components
    G03957225Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that the reverse clutch assembly is fully seated.

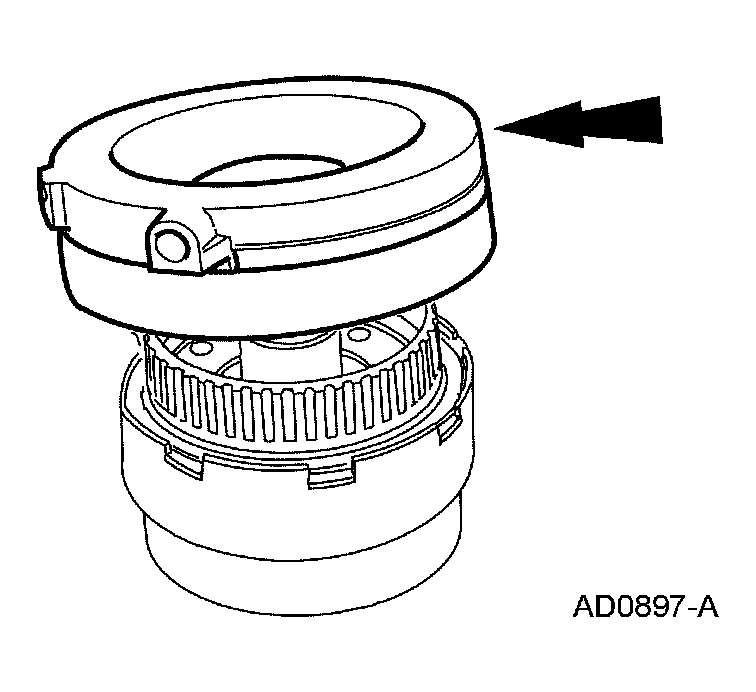

    Fig 2: Installing Reverse Clutch Assembly
    G03957226Courtesy of FORD MOTOR CO.
  2. Install the reverse clutch assembly.
