Transaxle Support Insulator: Notes

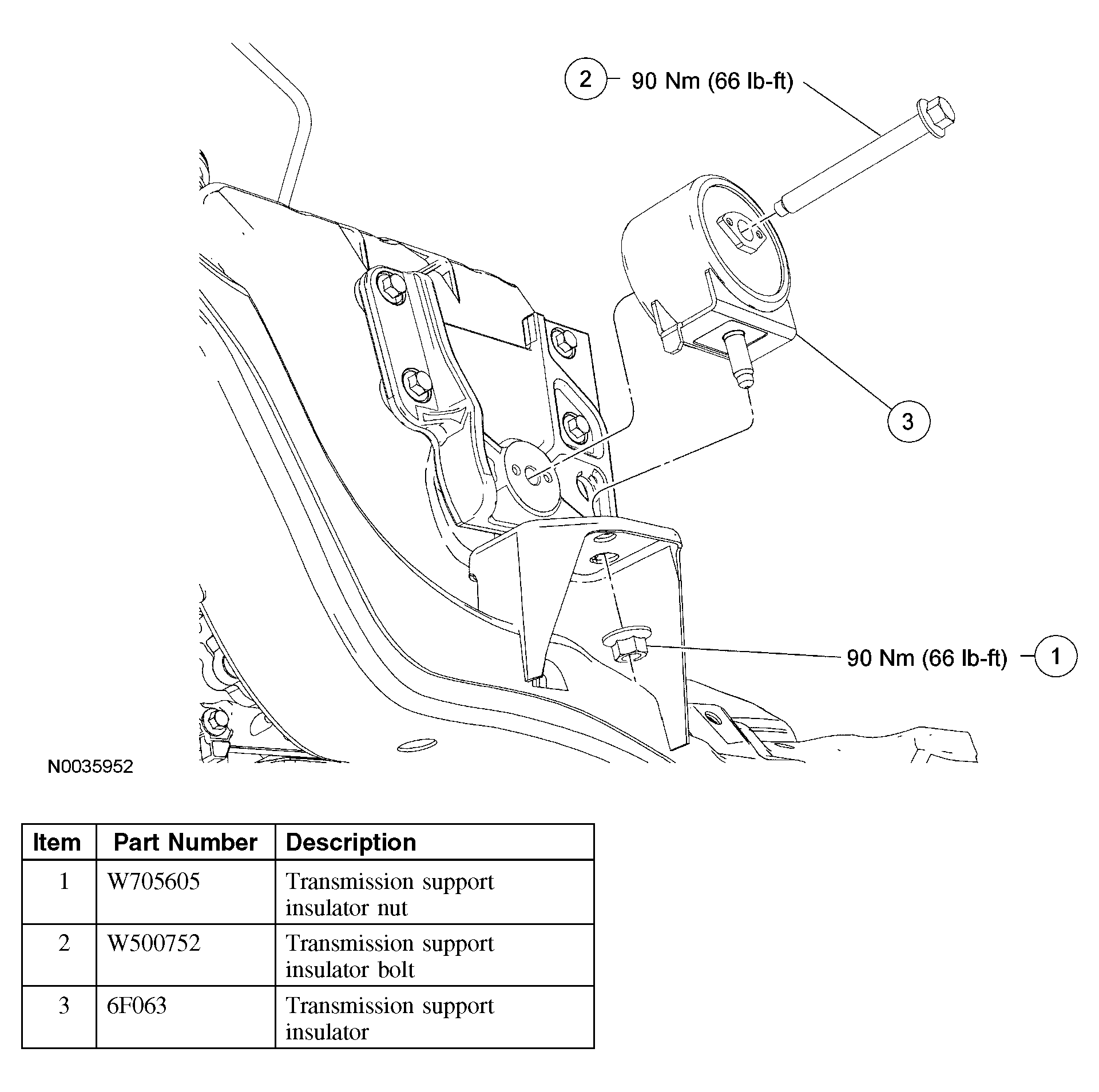

Fig 1: Identifying Tightening Torque Of Transaxle Support Insulator Bolt
G04004756Courtesy of FORD MOTOR CO.
