Accelerator Control System Components - Exploded View

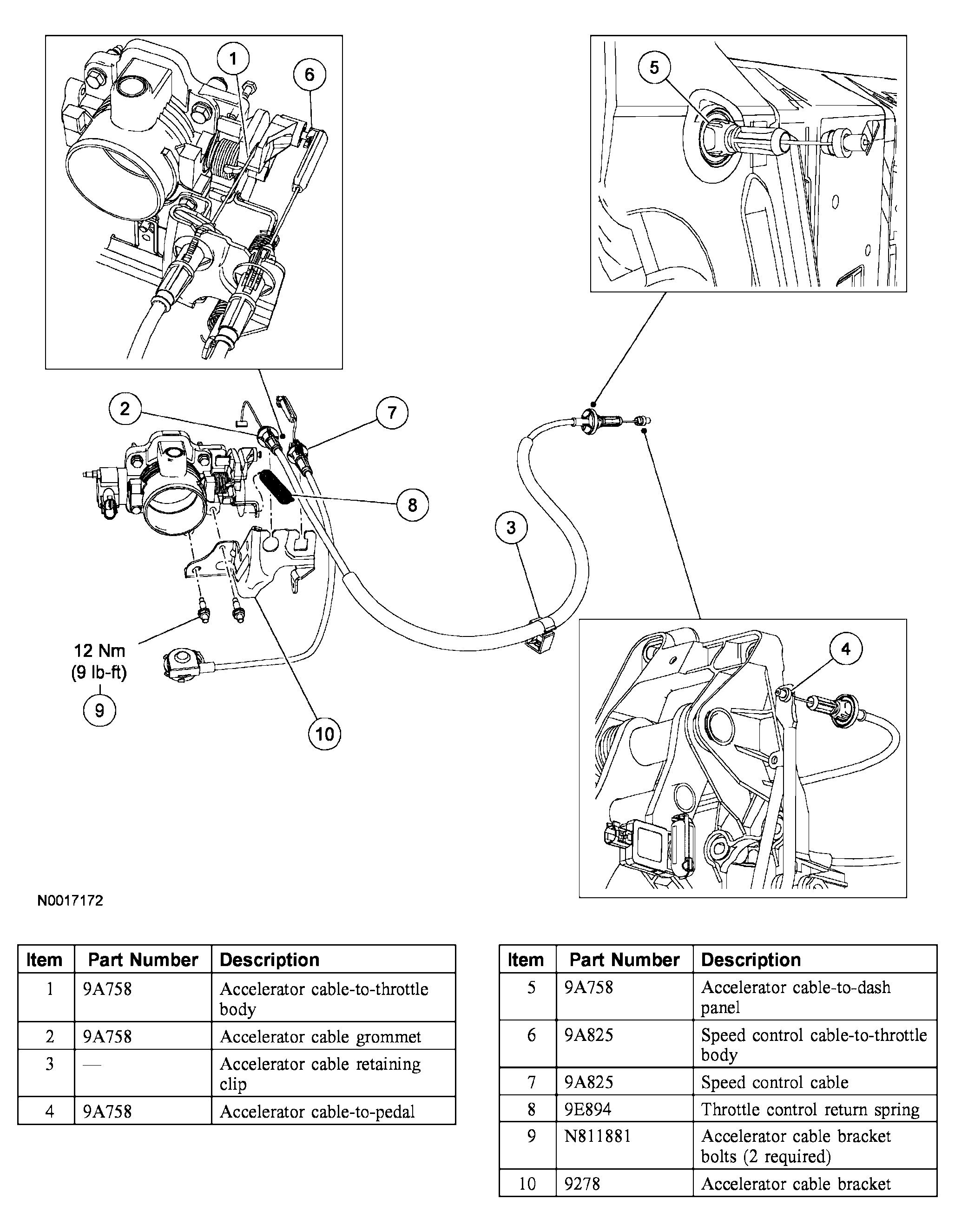

Fig 1: Exploded View Of Accelerator Control System Components
G04005474Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate component removal and installation procedures.
