Engine Ignition Components - Exploded View

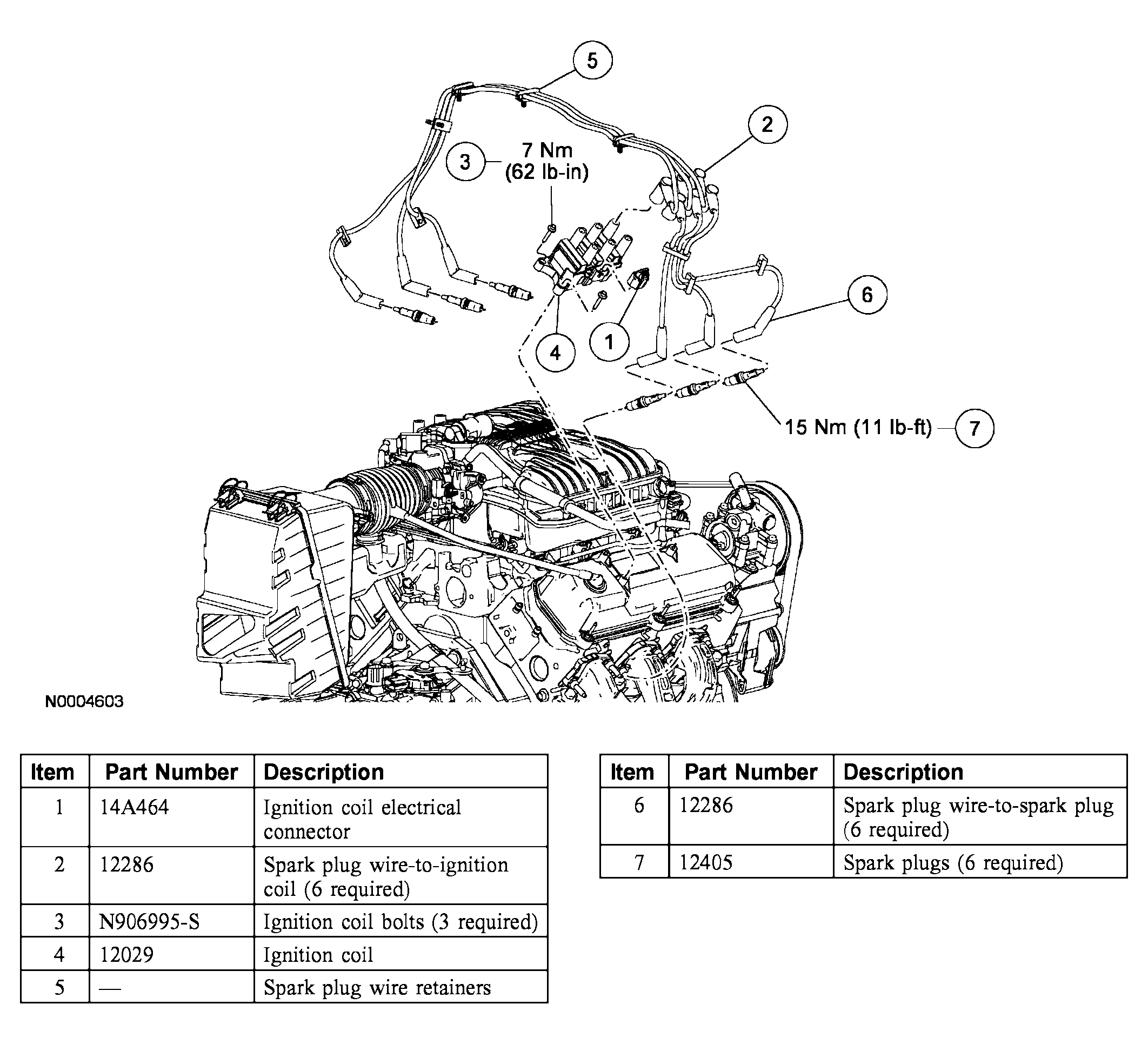

Fig 1: Exploded View Of Engine Ignition Components
G04004473Courtesy of FORD MOTOR CO.

For additional information, refer to the removal and installation procedures.
