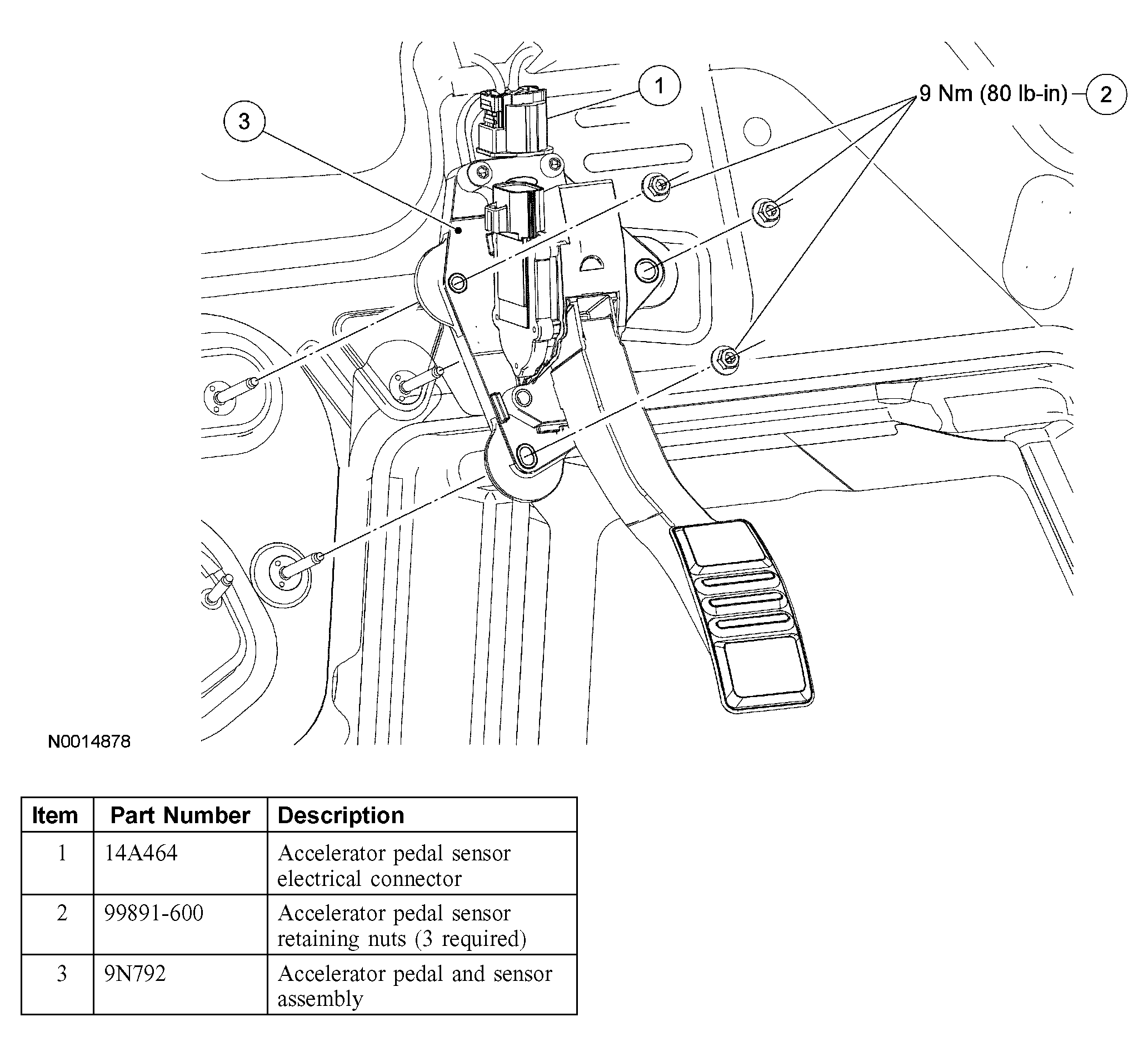

Accelerator Pedal
- Disconnect the accelerator pedal sensor electrical connector.
- Upon installation, make sure that the red lock tab on the electrical connector is fully engaged to ensure a complete connection.
- Remove the 3 accelerator pedal and sensor retaining nuts.
- To install, tighten to 9 Nm (80 lb-in).
- Remove the accelerator pedal and sensor assembly.
- To install, reverse the removal procedure.
