Engine Ignition Components - Exploded View

NOTE: RH shown, LH similar.

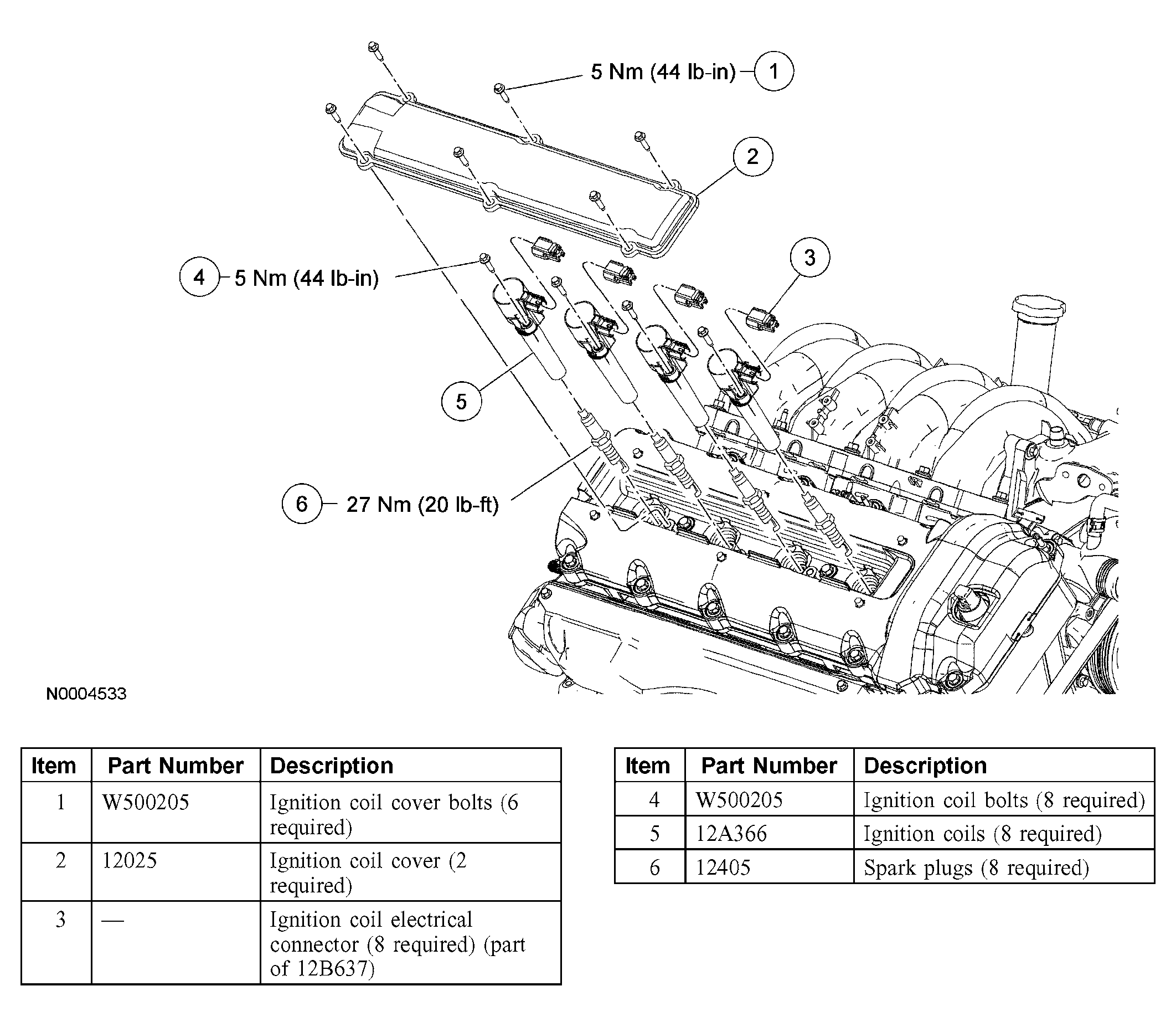

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications
G04008018Courtesy of FORD MOTOR CO.
  1. For additional information, refer to REMOVAL AND INSTALLATION  in this article.
