Removal and Installation

Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the PRNDL indicator bulb from the electrical connector.

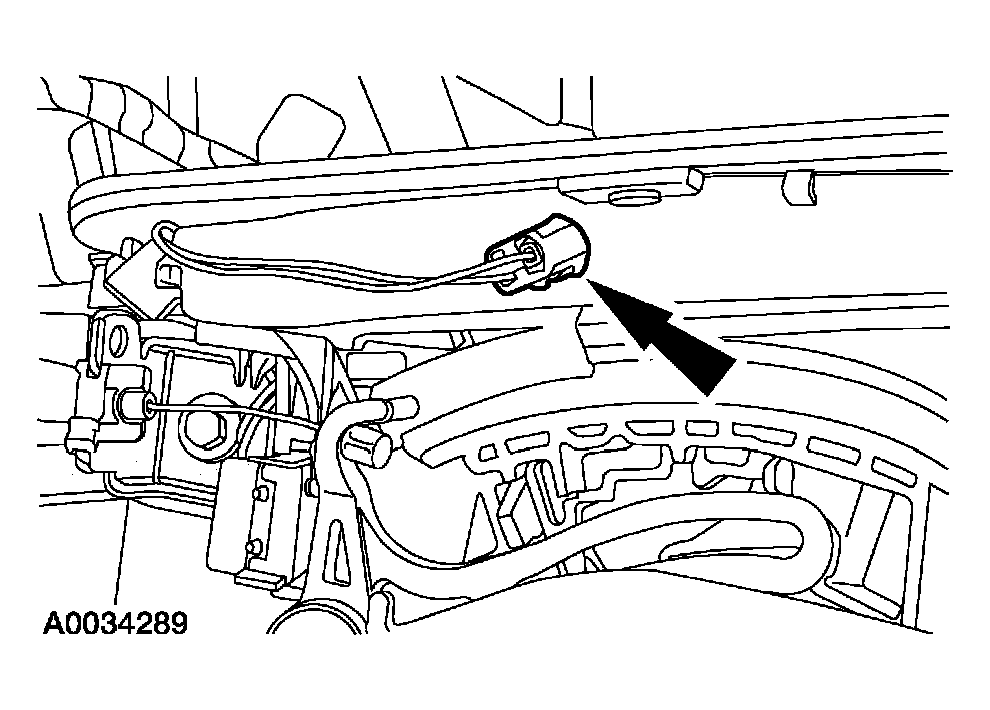

Fig 1: Removing PRNDL Indicator Bulb From Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

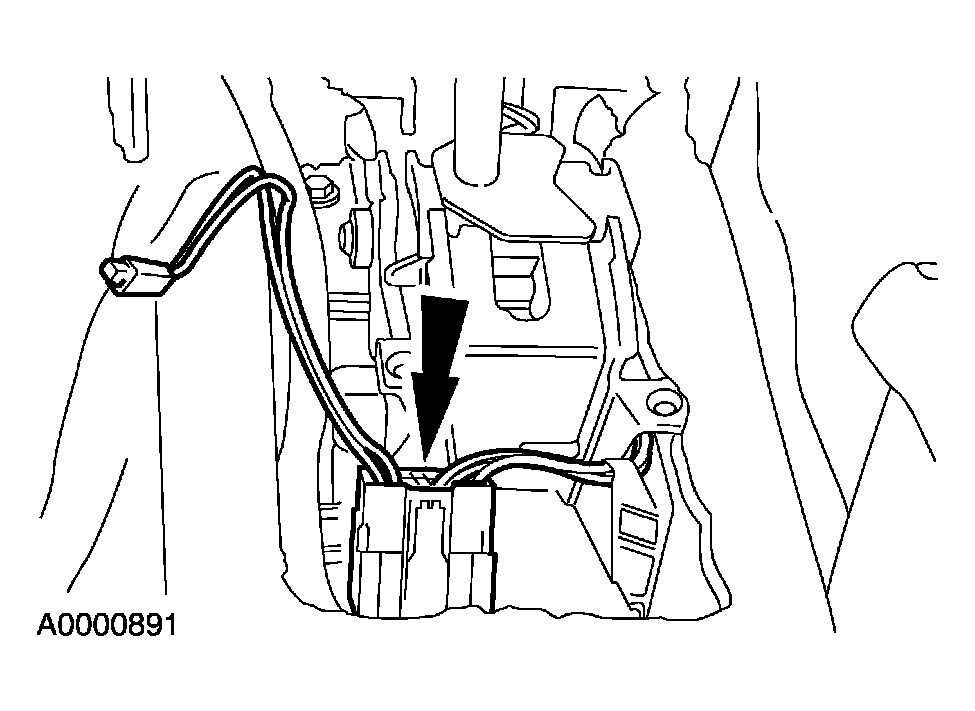

Fig 2: Locating Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the switches and remove the harness.

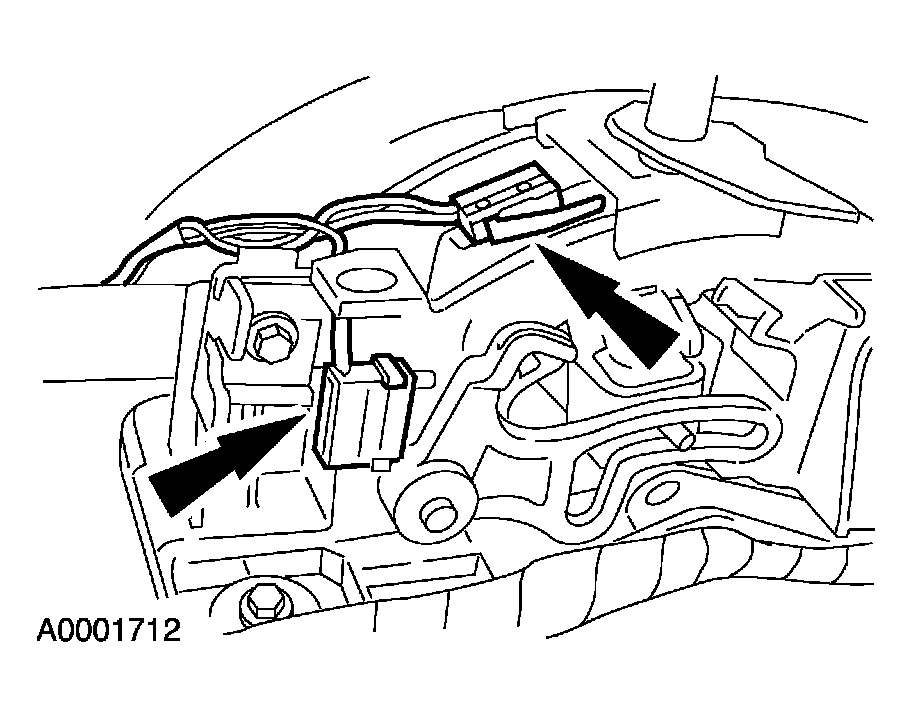

Fig 3: Identifying Switches & Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
