Powertrain Control Module (PCM): Notes

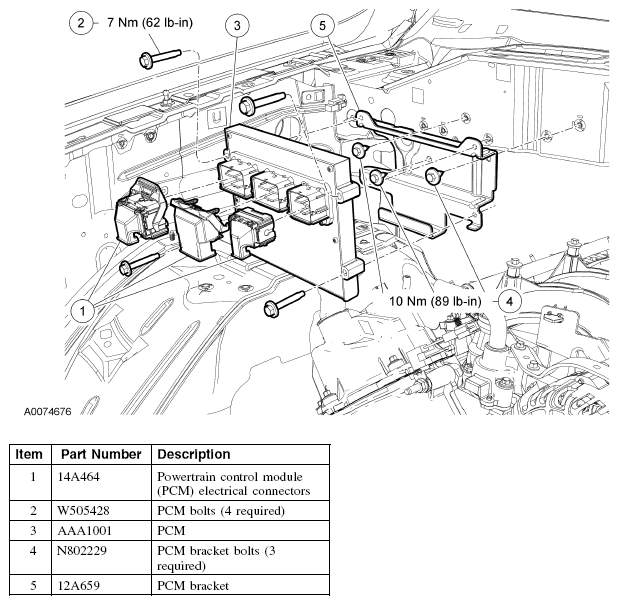

Fig 1: Powertrain Control Module Replacement Components With Torque Specifications
G04627662Courtesy of FORD MOTOR CO.
