Selector Lever Bezel: Installation

Position the bezel on the selector lever and fasten the 3 tabs.

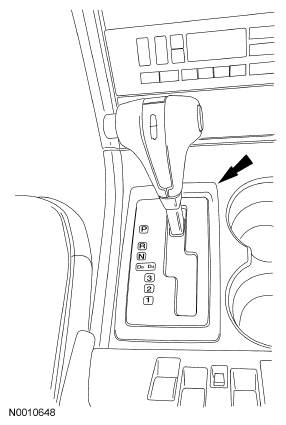

Fig 1: Locating Bezel Position On Selector Lever
Courtesy of FORD MOTOR CO.
Connect the 3 electrical connectors,

Fig 2: Locating Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the console finish panel and the 2 screws.

Fig 3: Locating Electrical Connectors Screws
Courtesy of FORD MOTOR CO.
Install the selector lever knob and the 2 screws.

Fig 4: Locating Selector Lever Knob Screws
Courtesy of FORD MOTOR CO.

NOTE: The selector lever button spring must be aligned on the locator on the underside of the selector lever knob bezel.

Fig 5: Locating Selector Lever Knob Bezel

Courtesy of FORD MOTOR CO.

NOTE:

The tool relief opening should be at the bottom of the button assembly.
It may be necessary to put pressure on the top of the selector lever knob bezel while installing the selector lever button.

Fig 6: Locating Selector Lever Ring Slot

Courtesy of FORD MOTOR CO.

Install the selector lever button.
NOTE: Install the PRNDL trim plate.

Fig 7: Locating PRNDL Trim Plate
Courtesy of FORD MOTOR CO.
