Powertrain Control Module (PCM): Removal

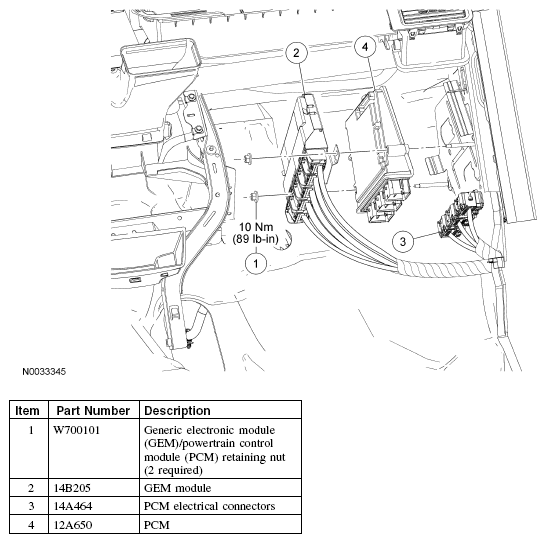

Fig 1: Powertrain Control Module (PCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Any PCM replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION .
Remove the instrument panel side trim.

Fig 2: Removing Instrument Panel Side Trim
Courtesy of FORD MOTOR CO.
Remove the cowl side trim panel.

Fig 3: Locating Cowl Side Trim Panel
Courtesy of FORD MOTOR CO.
Remove the glove compartment.

Fig 4: Locating Glove Compartment Bolts
Courtesy of FORD MOTOR CO.
Remove the passenger side lower footwell trim panel.

Fig 5: Locating Passenger Side Lower Footwell Trim Panel
Courtesy of FORD MOTOR CO.
Remove the 2 generic electronic module (GEM) nuts and position aside.
Disconnect the PCM electrical connectors and remove the PCM.
