Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Bussed Electrical Center (BEC)

G00267594

Courtesy of FORD MOTOR CO.

Fig 2: Smart Junction Box (SJB)

G00267595

Courtesy of FORD MOTOR CO.

Fig 3: Auxiliary Relay Box 1

G00360351

Courtesy of FORD MOTOR CO.

Fig 4: Dual Cooling Fans

G00267597

Courtesy of FORD MOTOR CO.

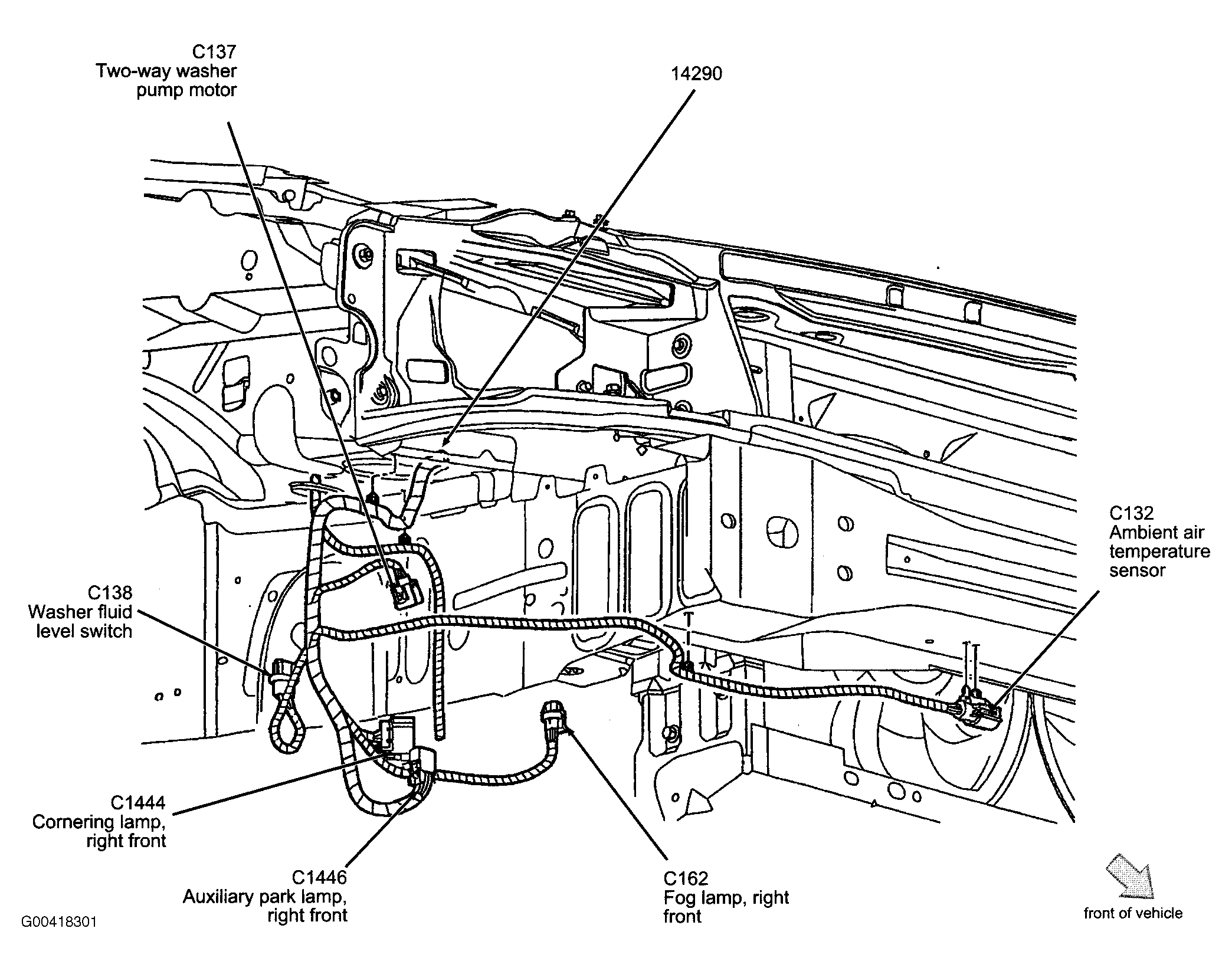

Fig 5: Right Front Of Engine Compartment

G00418301

Courtesy of FORD MOTOR CO.

Fig 6: Left Rear Of Engine Compartment

G00267599

Courtesy of FORD MOTOR CO.

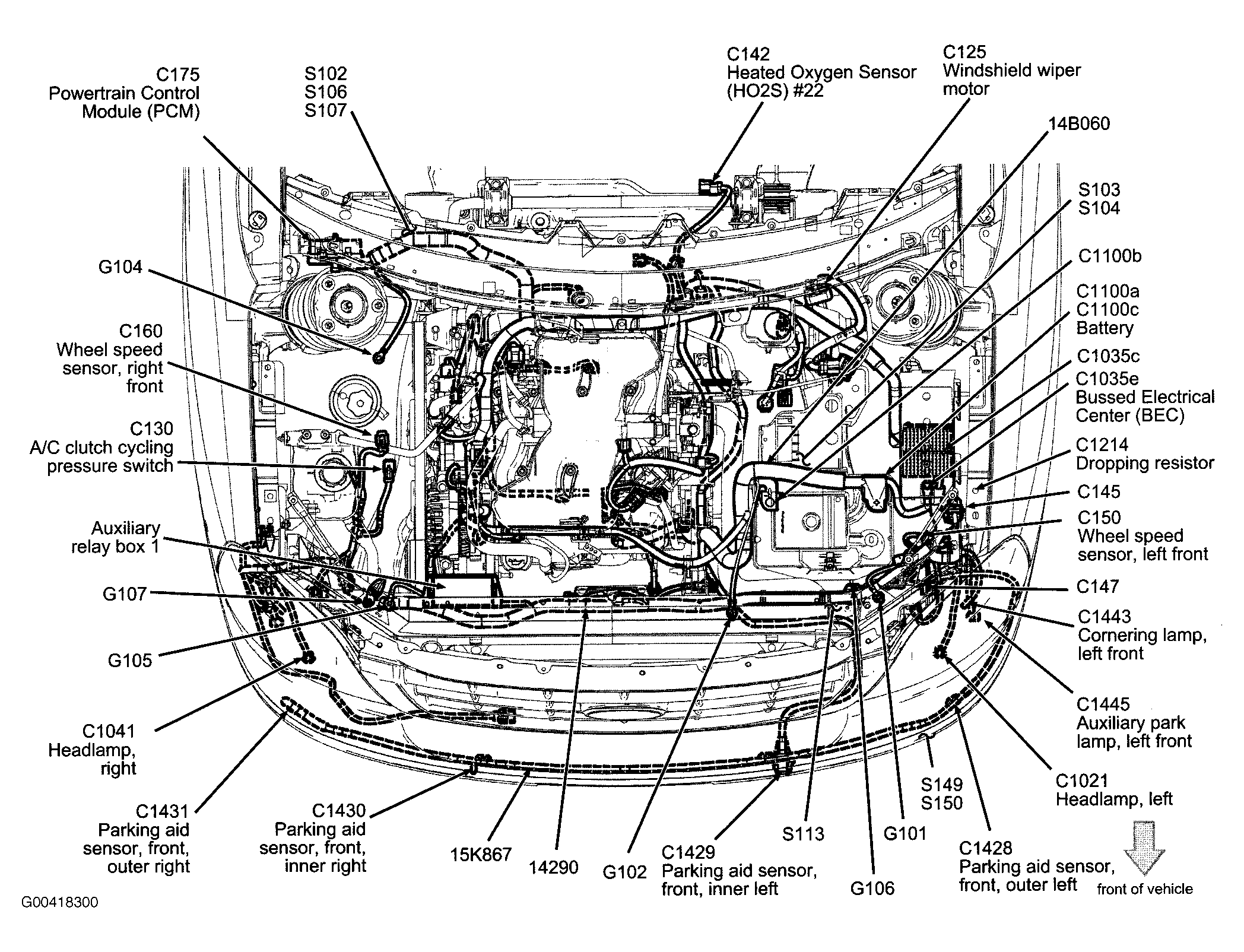

Fig 7: Engine Compartment

G00418300

Courtesy of FORD MOTOR CO.

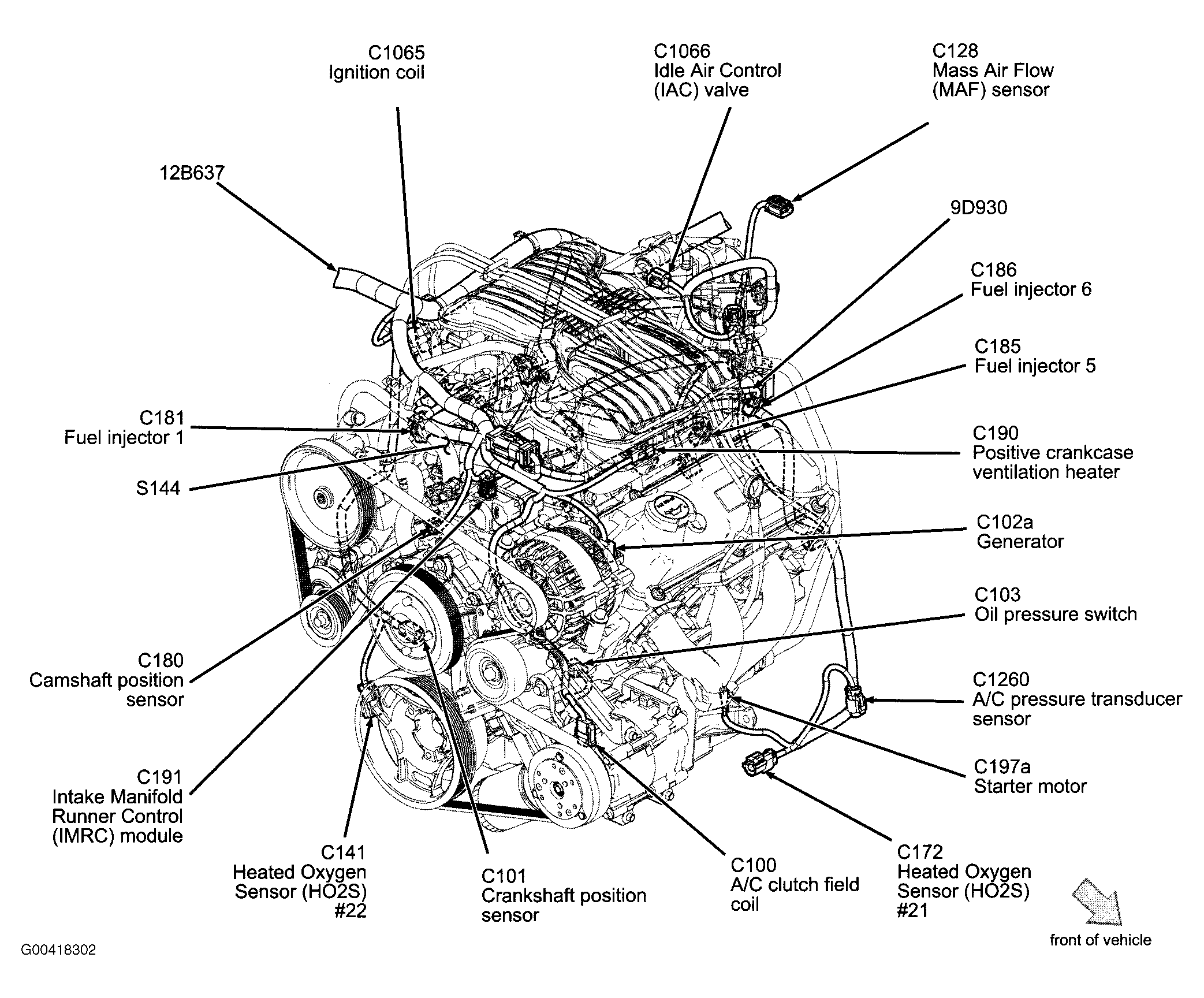

Fig 8: Front Left Side Of Engine

G00418302

Courtesy of FORD MOTOR CO.

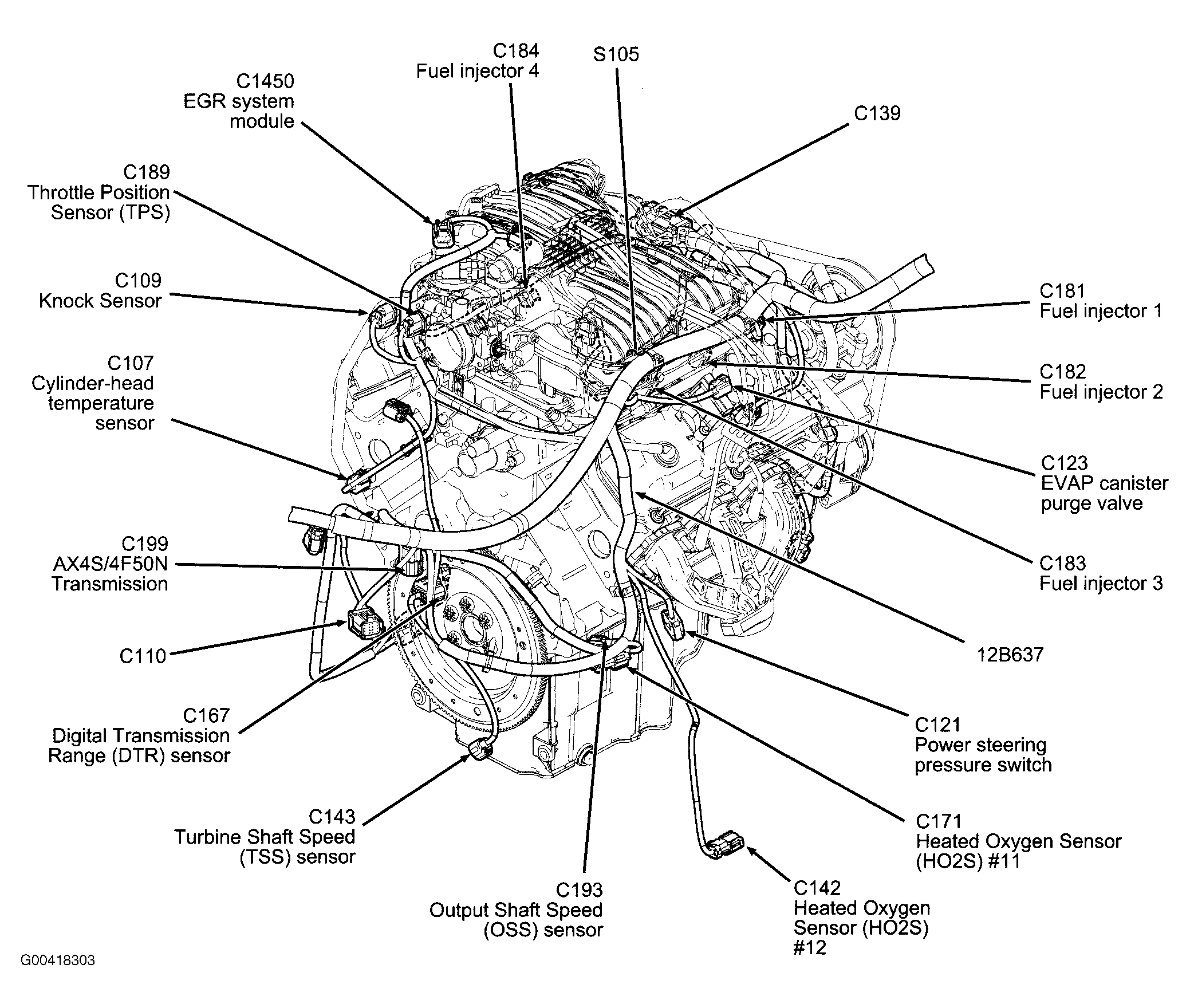

Fig 9: Right Rear Of Engine

G00418303

Courtesy of FORD MOTOR CO.

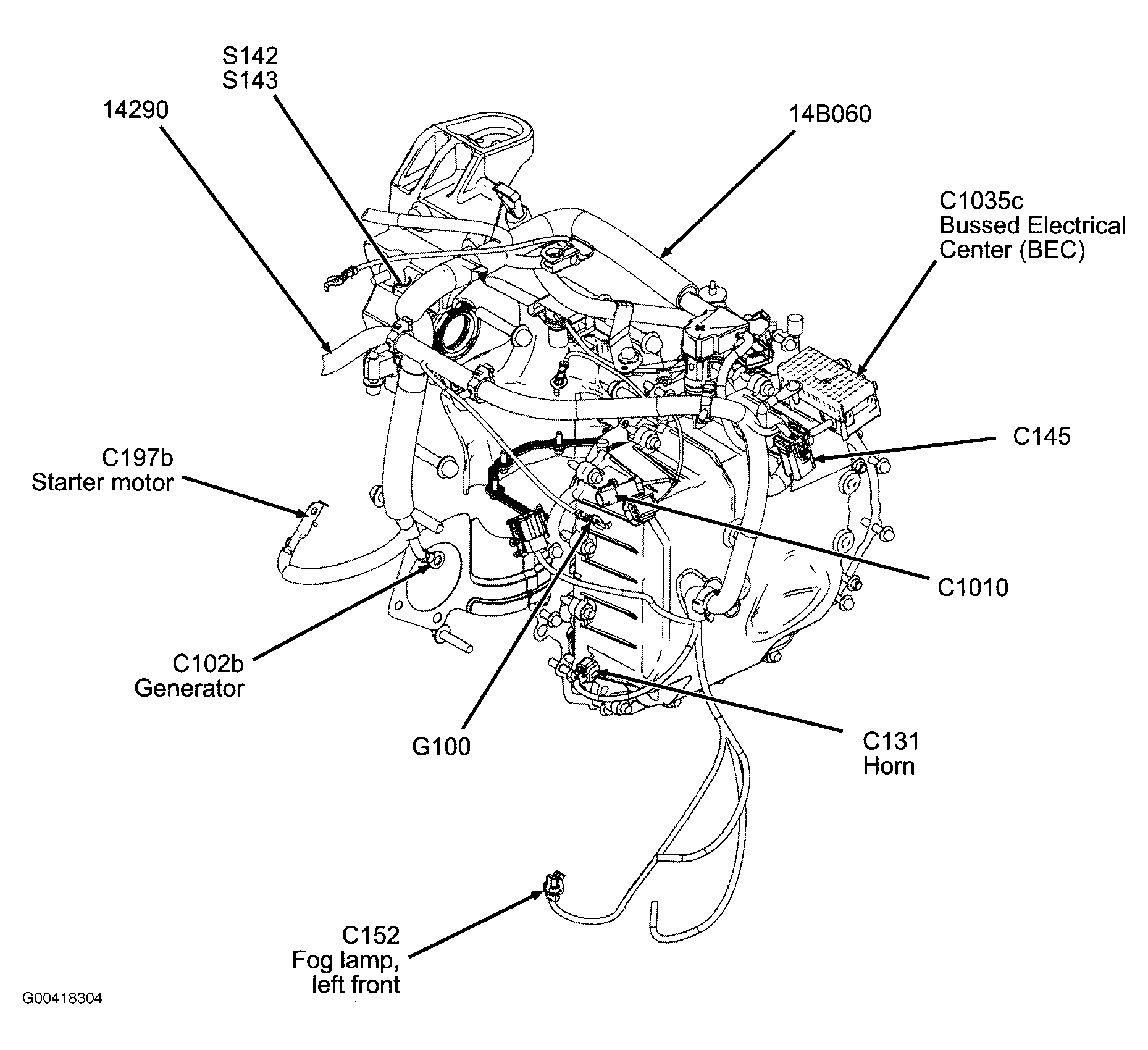

Fig 10: Transmission

G00418304

Courtesy of FORD MOTOR CO.

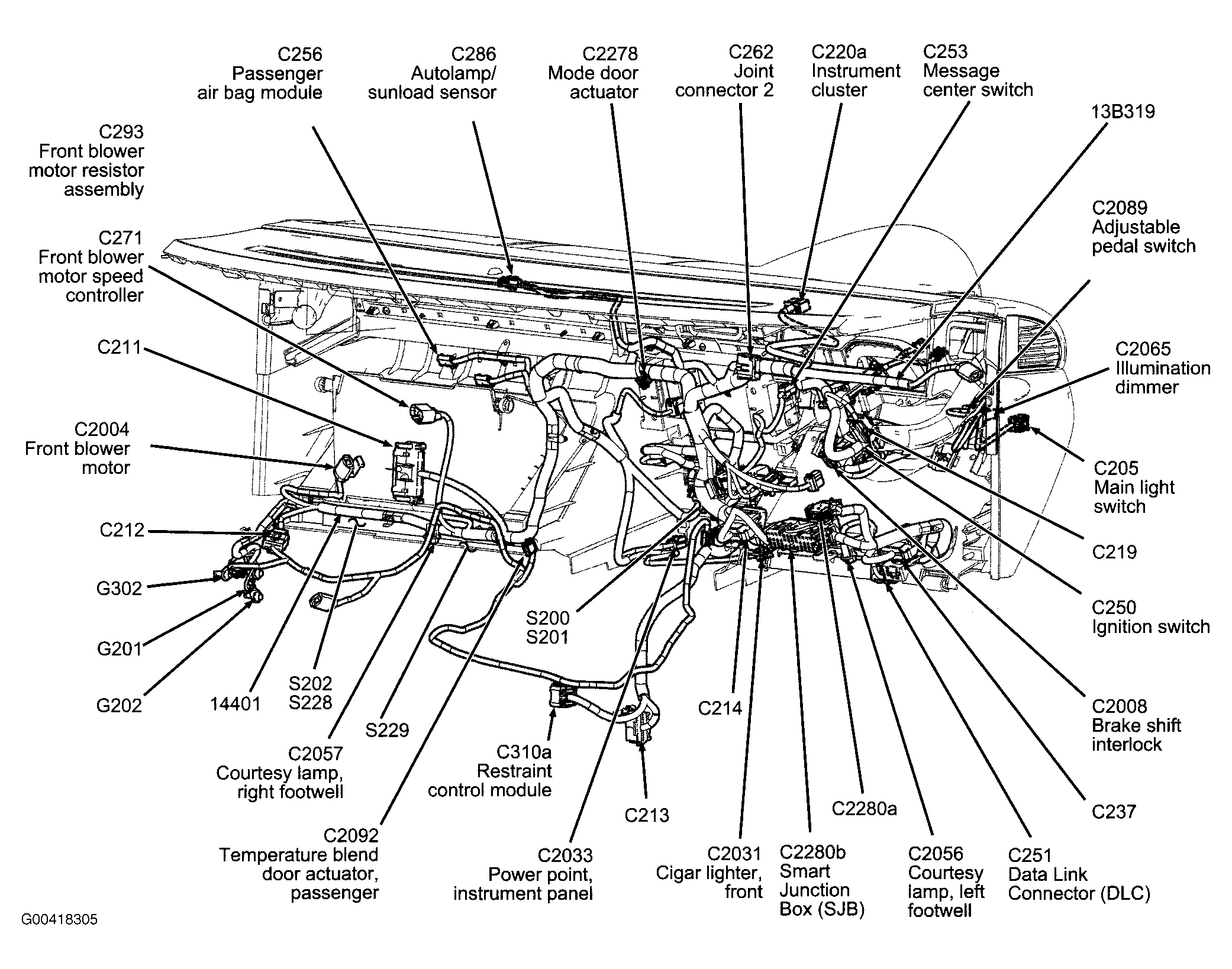

Fig 11: Rear Of Dash

G00418305

Courtesy of FORD MOTOR CO.

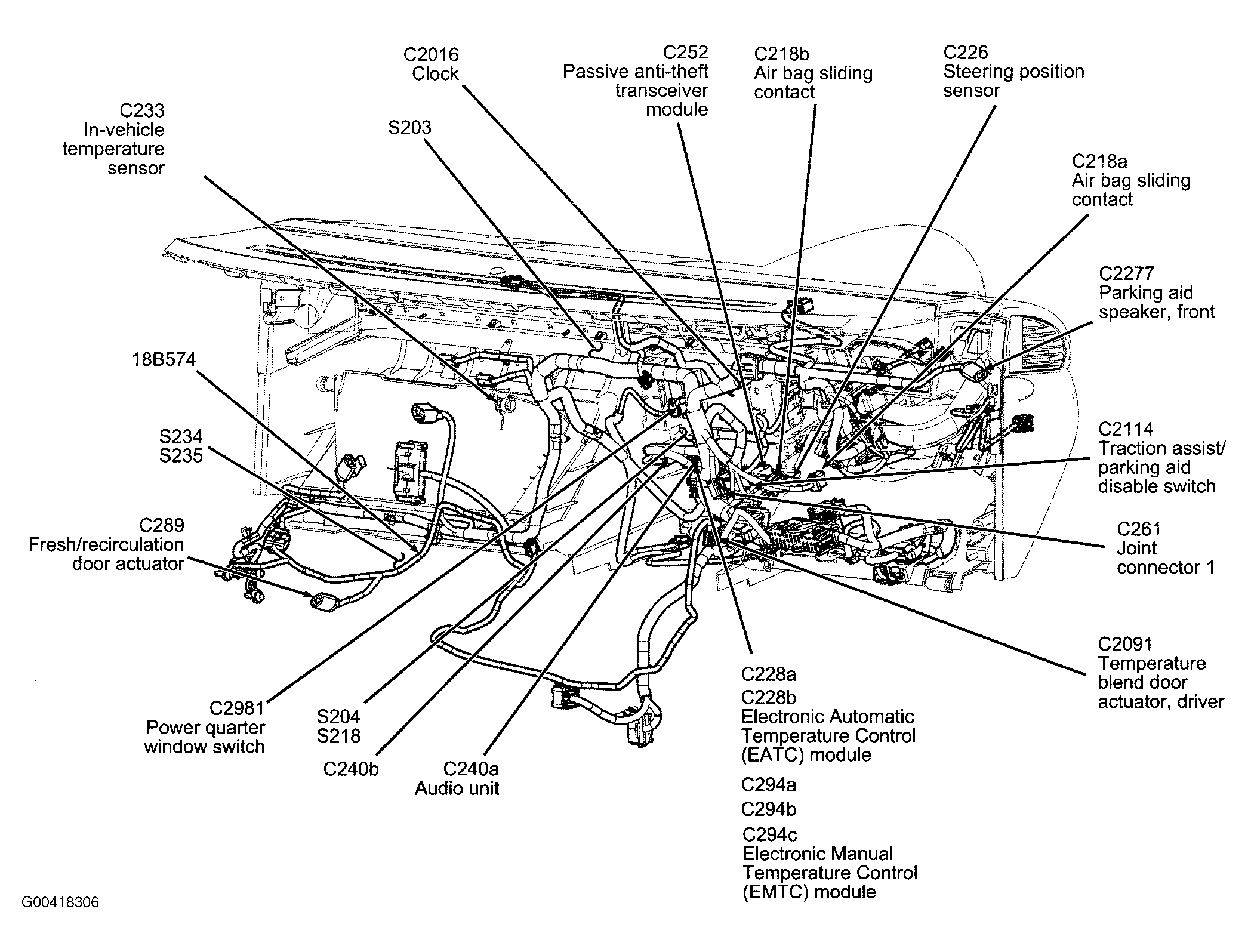

Fig 12: Rear Of Dash

G00418306

Courtesy of FORD MOTOR CO.

Fig 13: Steering Column

G00267606

Courtesy of FORD MOTOR CO.

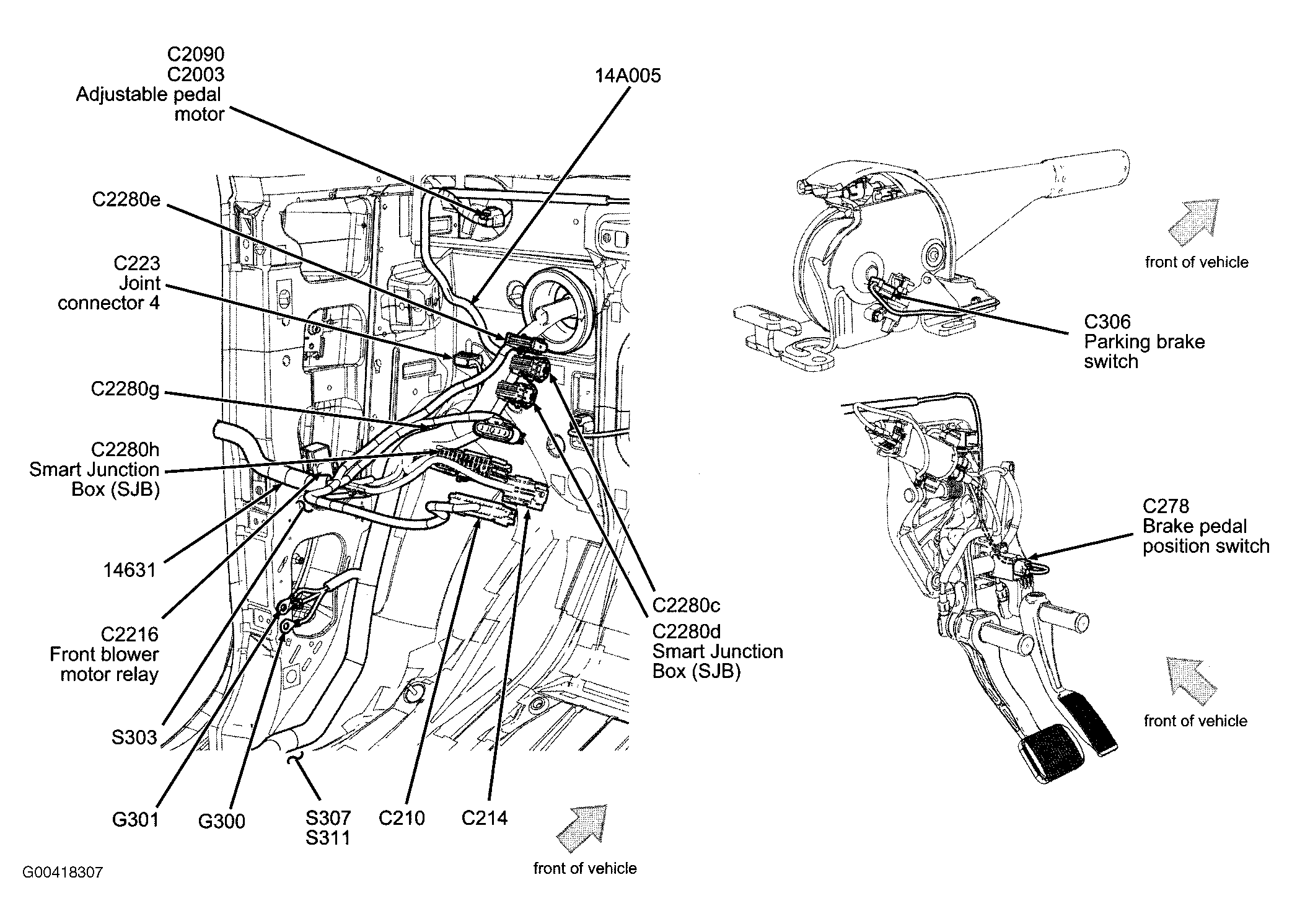

Fig 14: Left Kick Panel

G00418307

Courtesy of FORD MOTOR CO.

Fig 15: Right Kick Panel

G00267608

Courtesy of FORD MOTOR CO.

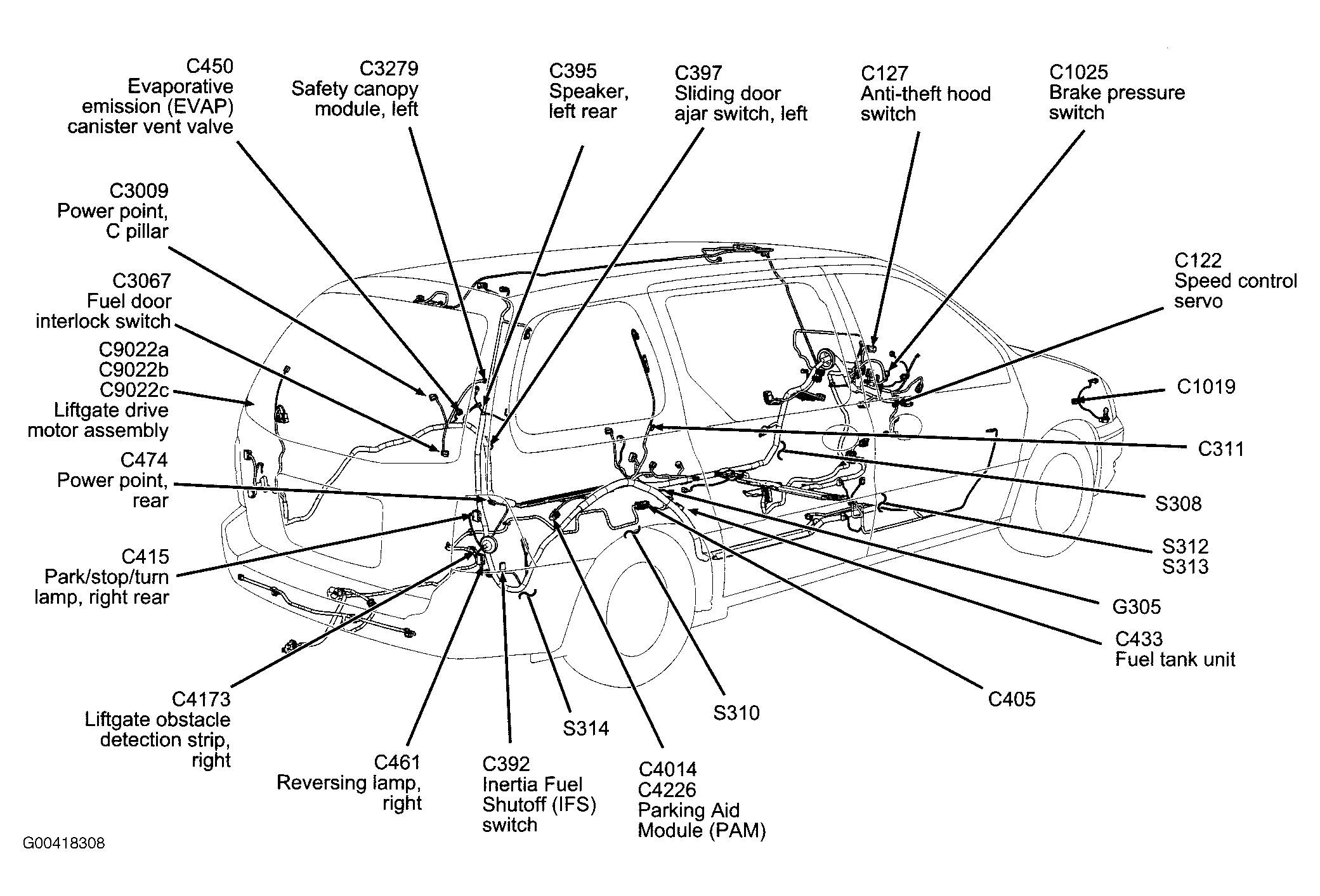

Fig 16: Vehicle Overview

G00418308

Courtesy of FORD MOTOR CO.

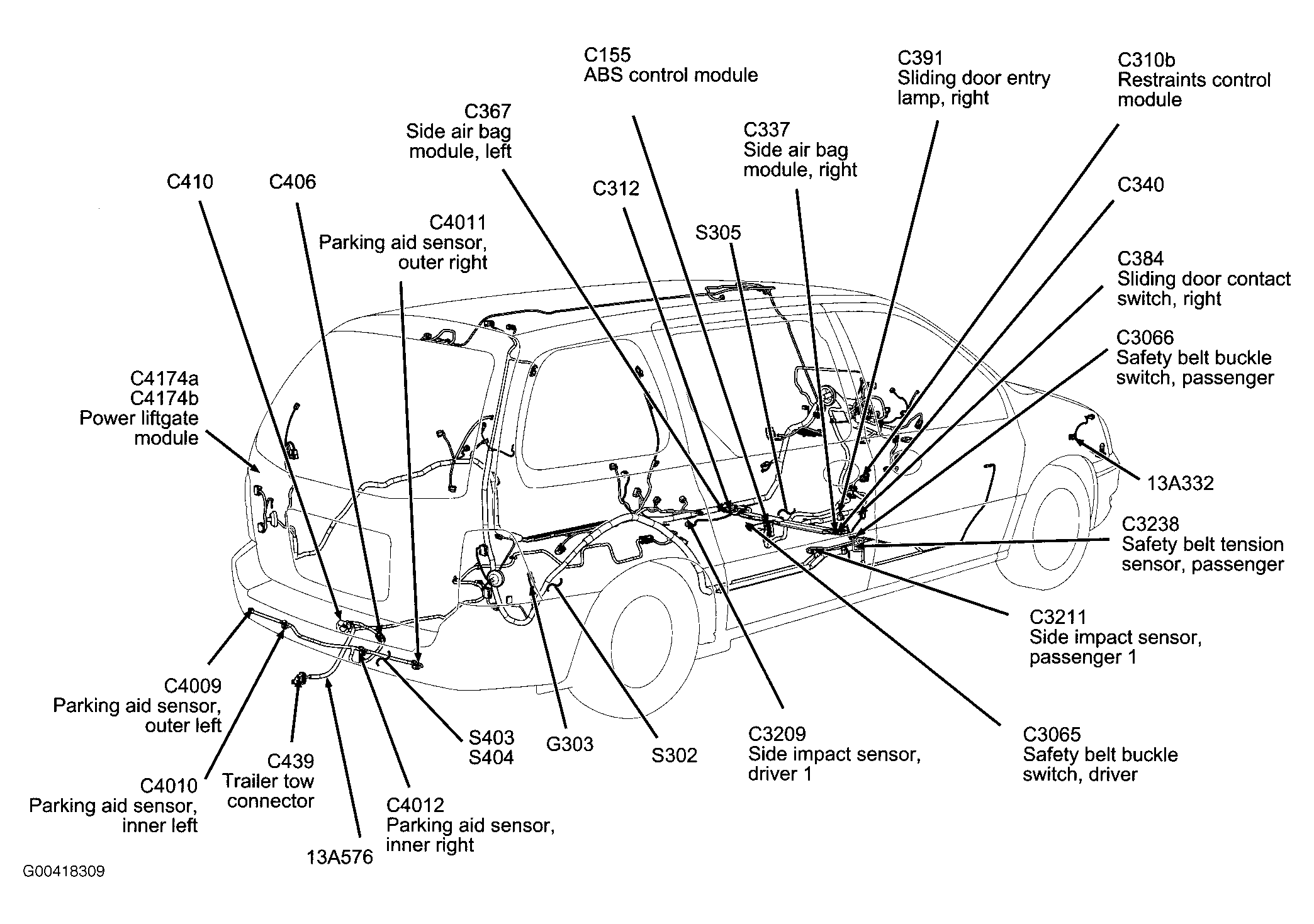

Fig 17: Vehicle Overview

G00418309

Courtesy of FORD MOTOR CO.

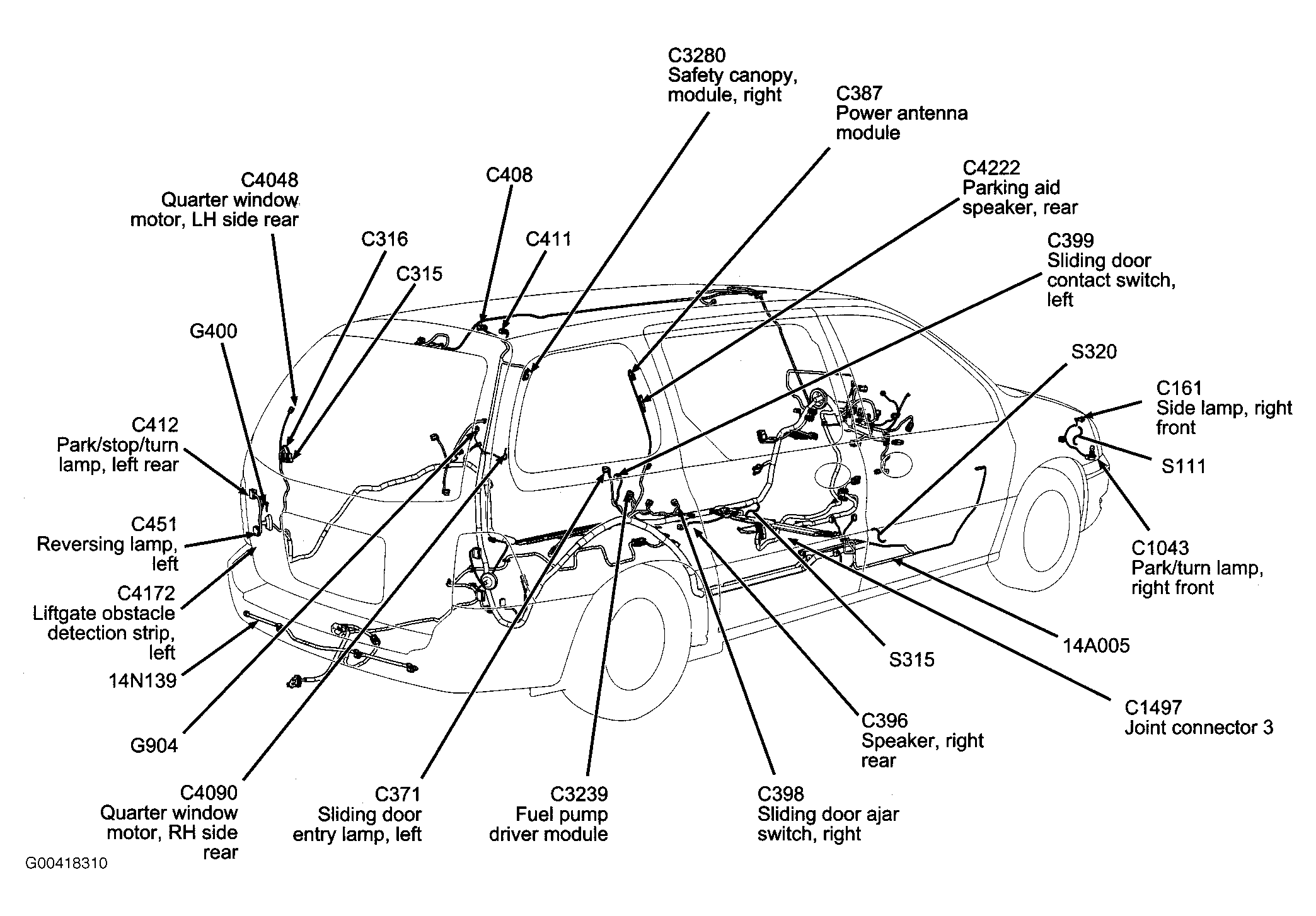

Fig 18: Vehicle Overview

G00418310

Courtesy of FORD MOTOR CO.

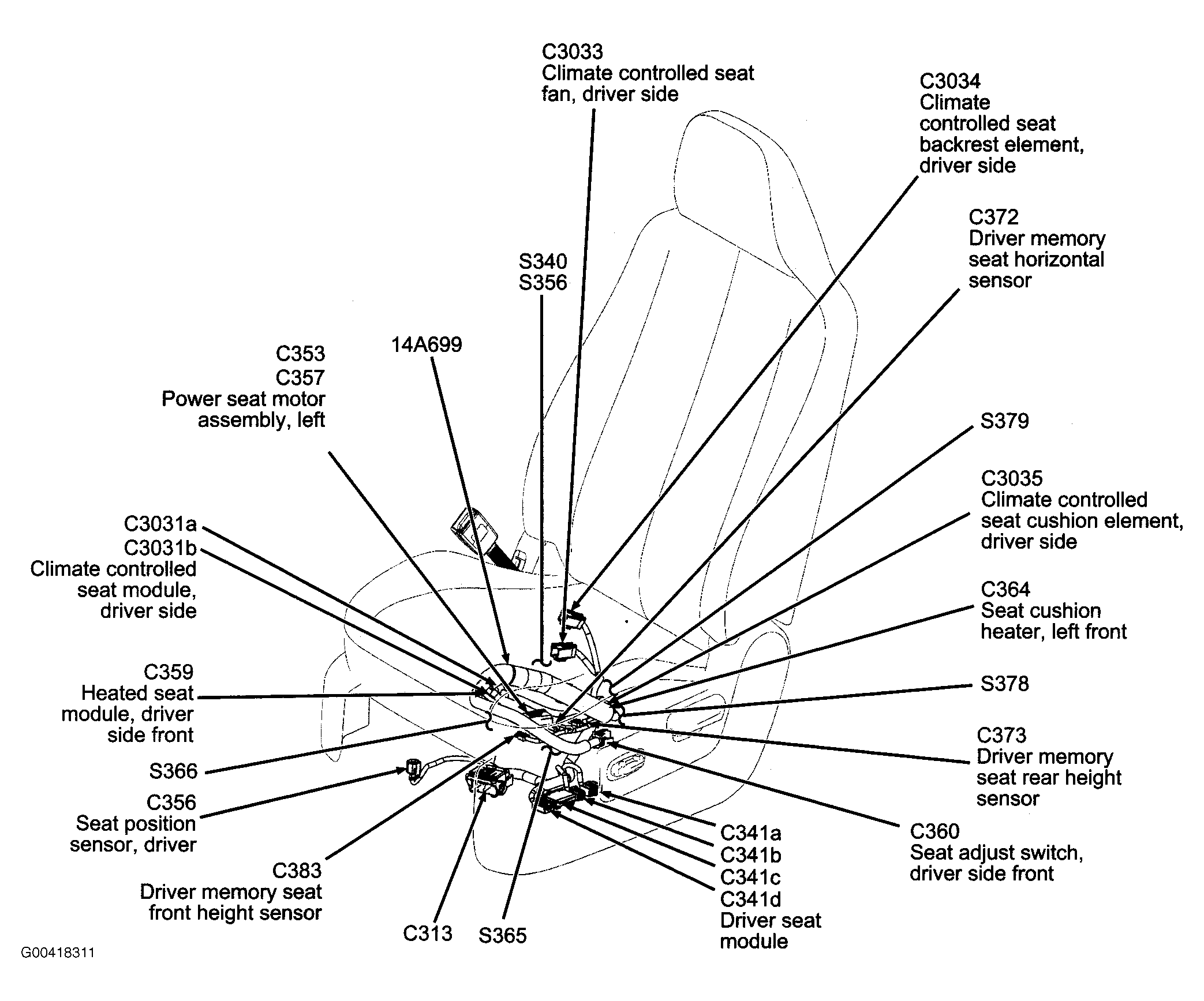

Fig 19: Driver Seat

G00418311

Courtesy of FORD MOTOR CO.

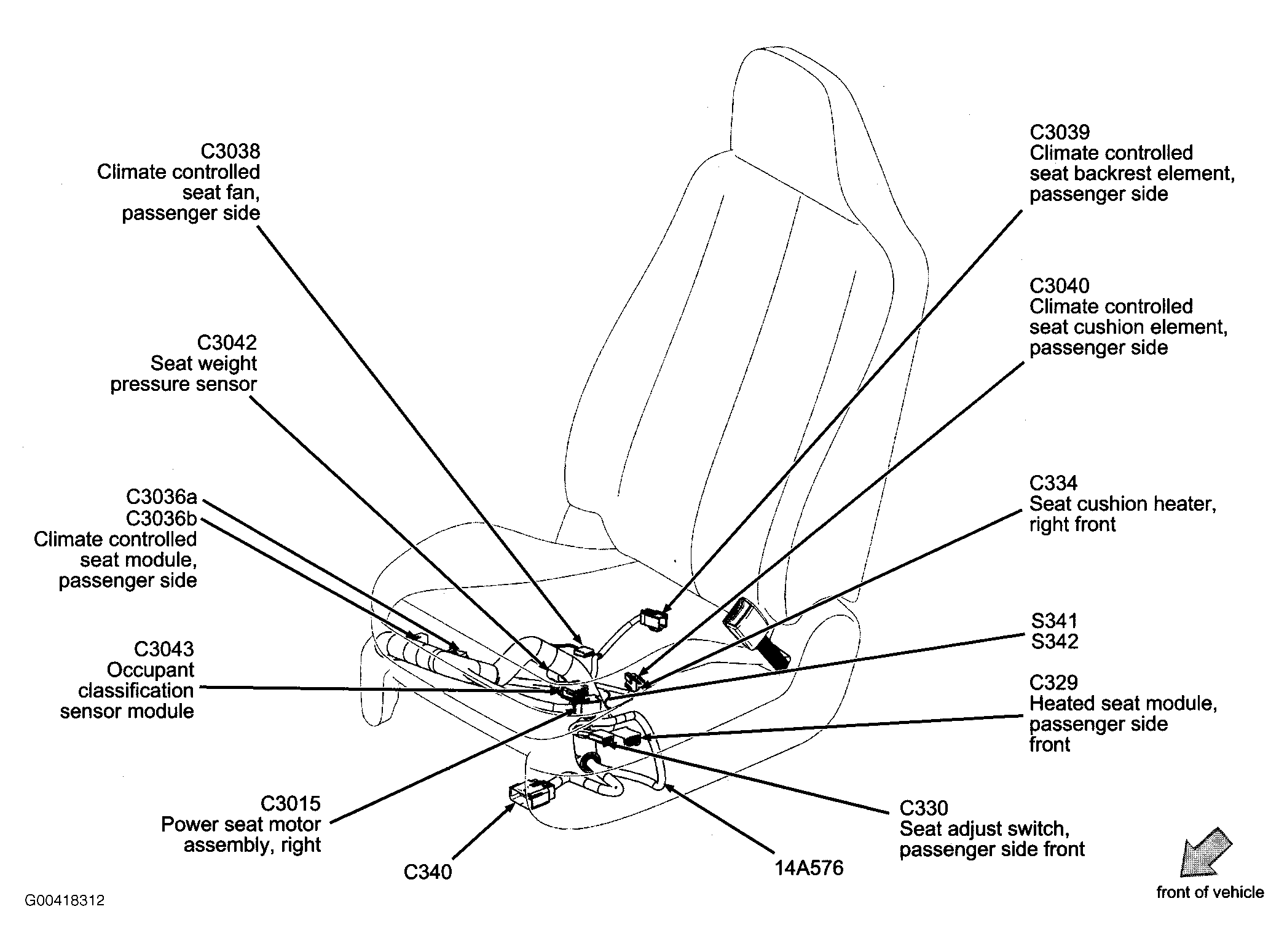

Fig 20: Passenger Seat

G00418312

Courtesy of FORD MOTOR CO.

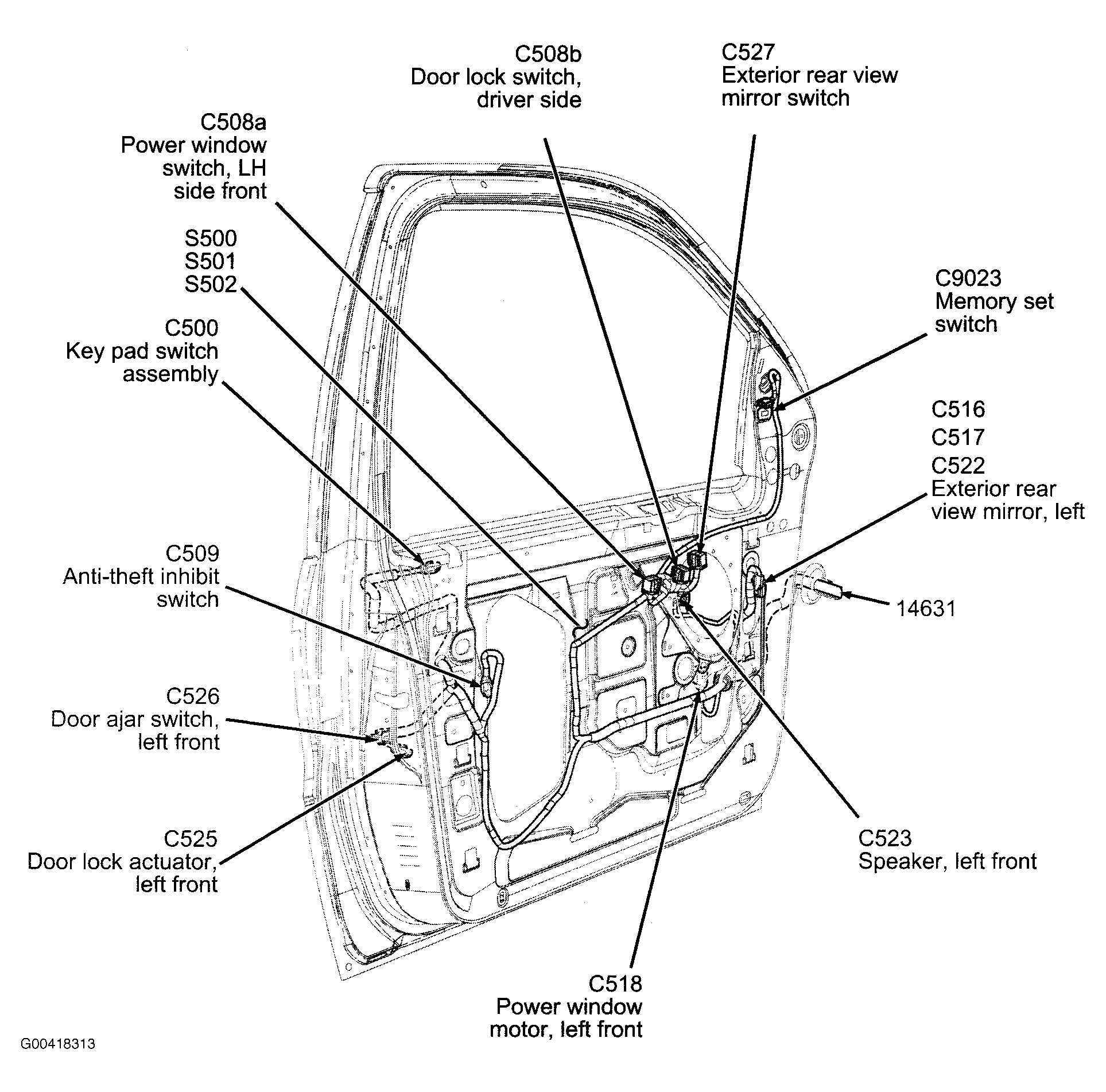

Fig 21: Left Front Door

G00418313

Courtesy of FORD MOTOR CO.

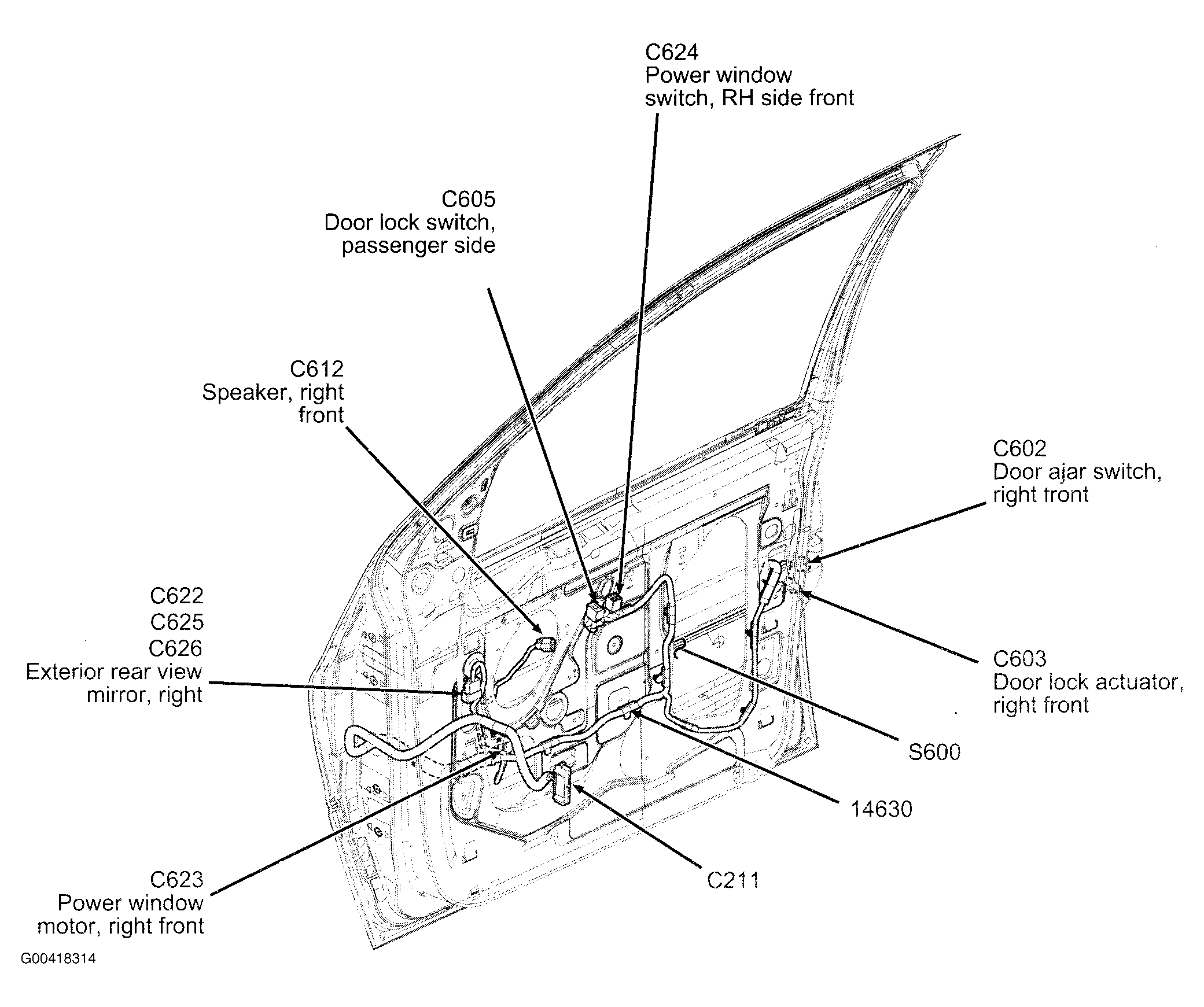

Fig 22: Right Front Door

G00418314

Courtesy of FORD MOTOR CO.

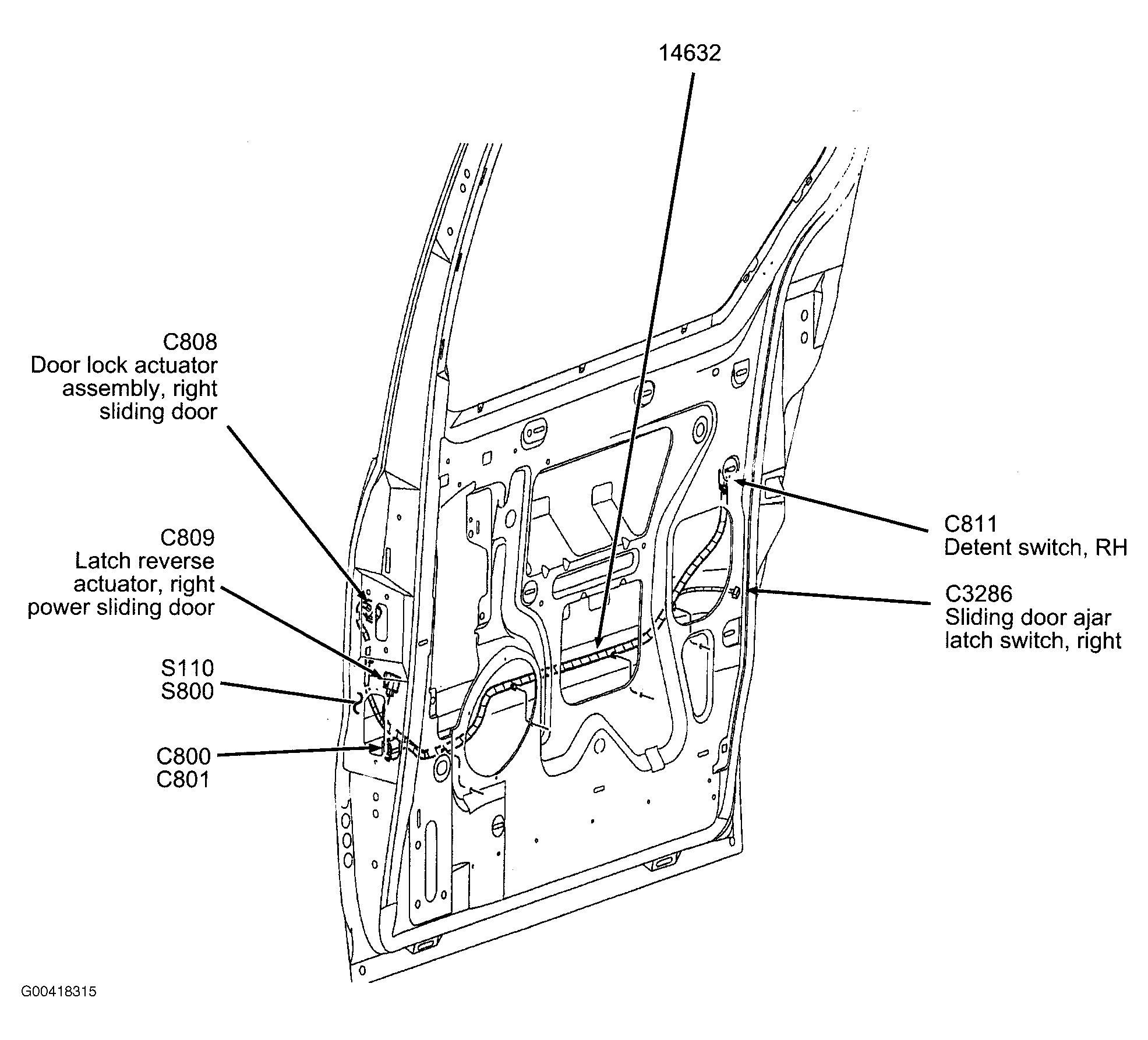

Fig 23: Right Rear Door

G00418315

Courtesy of FORD MOTOR CO.

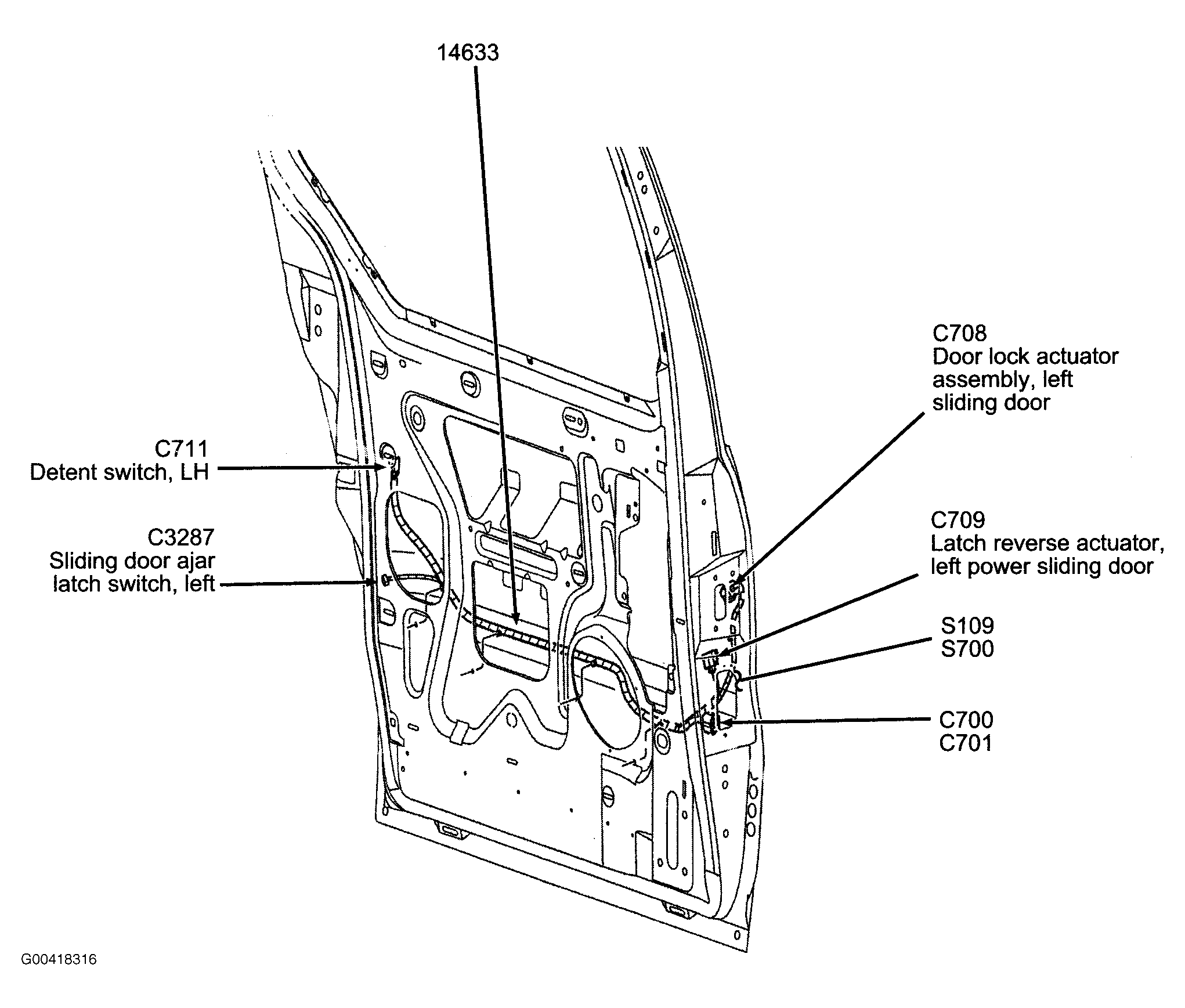

Fig 24: Left Rear Door

G00418316

Courtesy of FORD MOTOR CO.

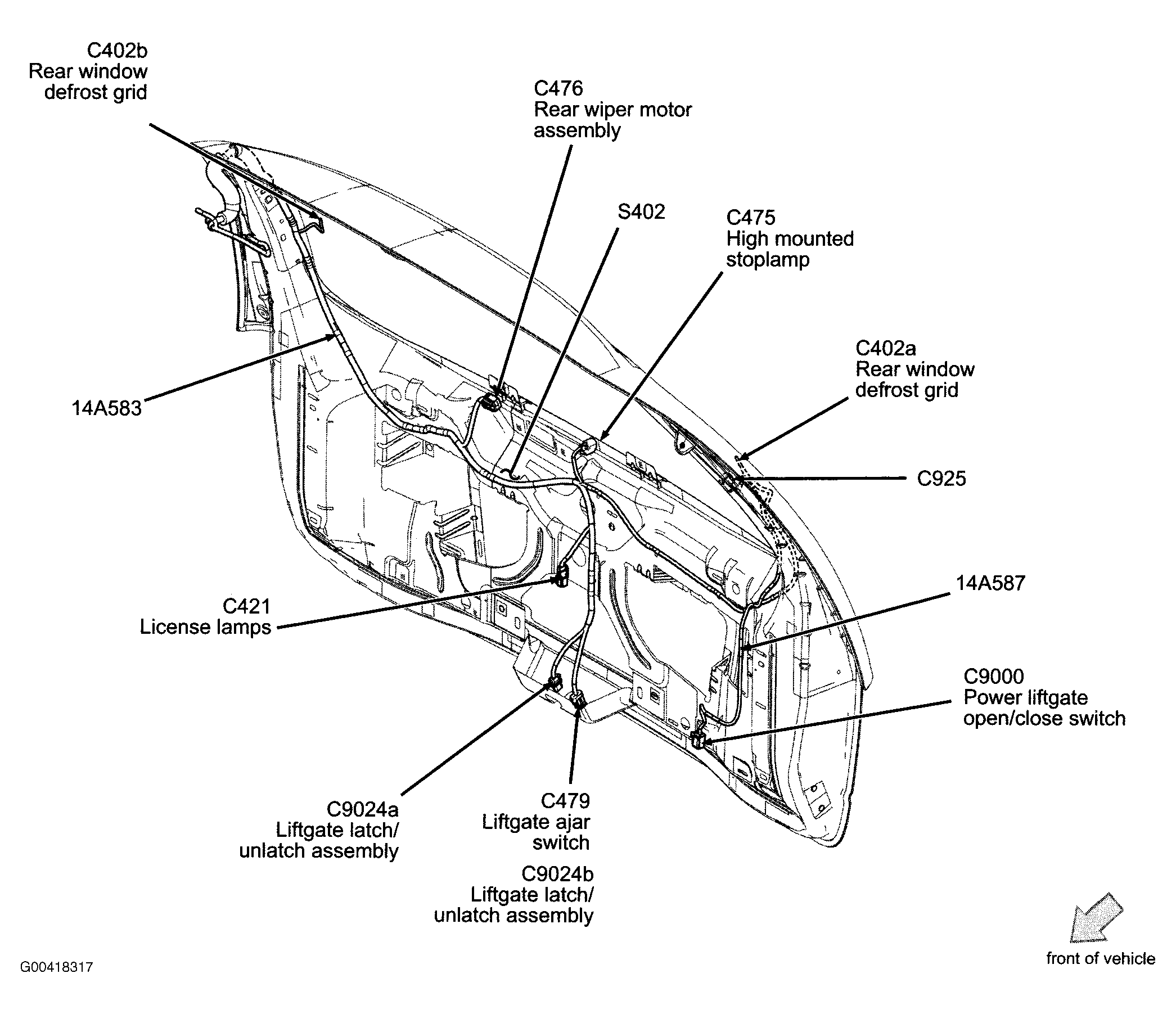

Fig 25: Liftgate

G00418317

Courtesy of FORD MOTOR CO.

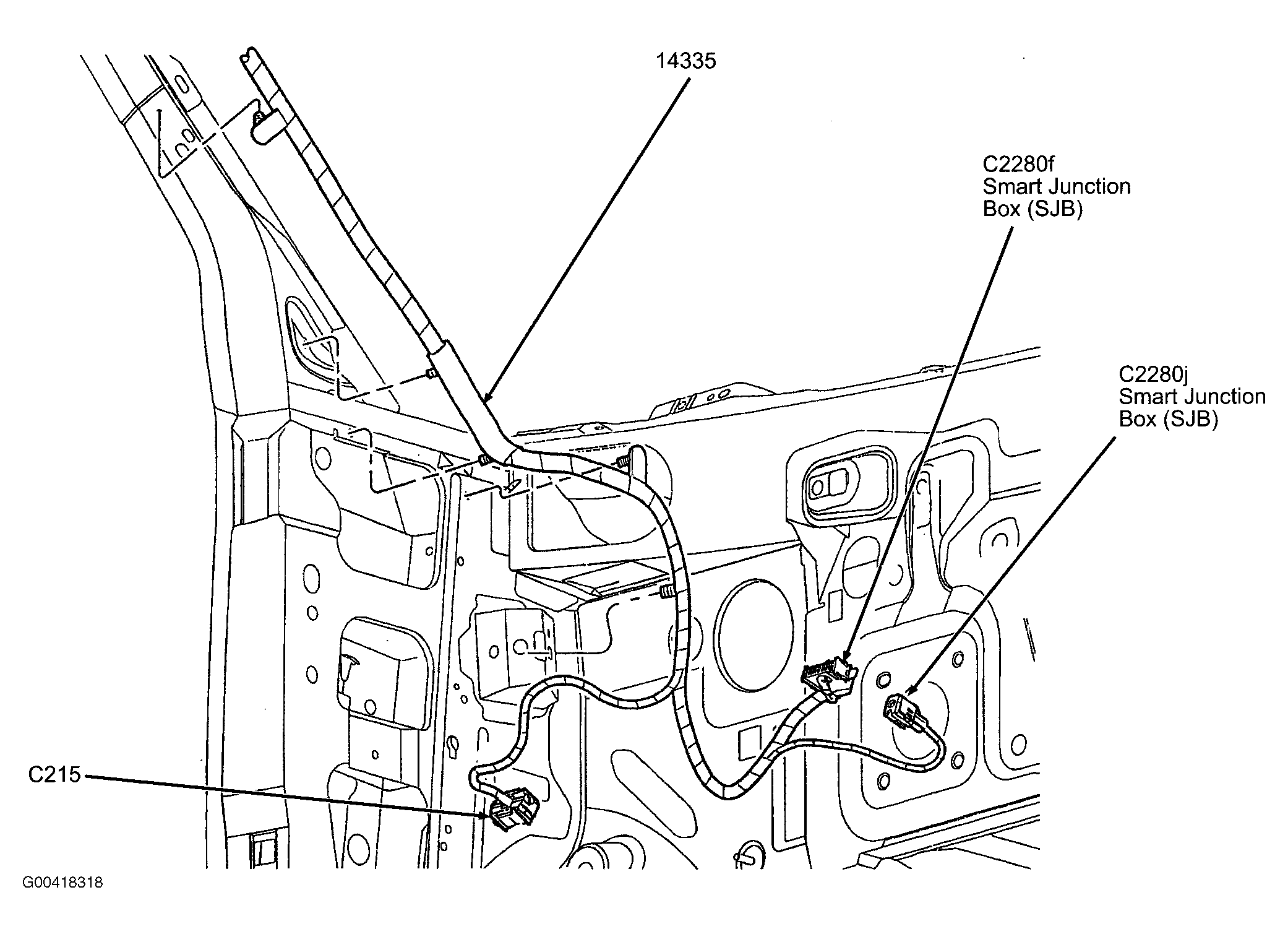

Fig 26: Center Of Left "A" Pillar

G00418318

Courtesy of FORD MOTOR CO.

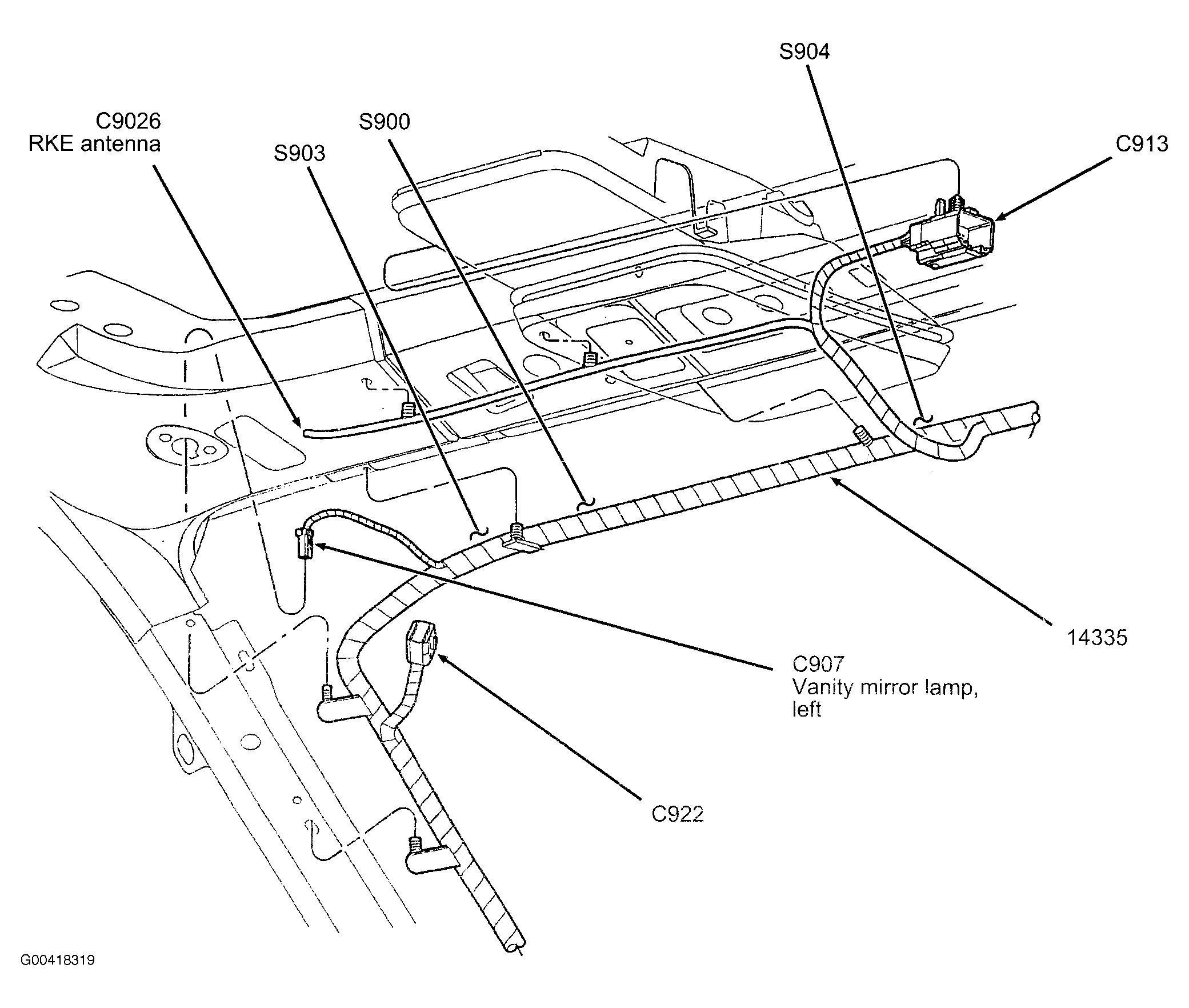

Fig 27: Left Front Roof Panel

G00418319

Courtesy of FORD MOTOR CO.

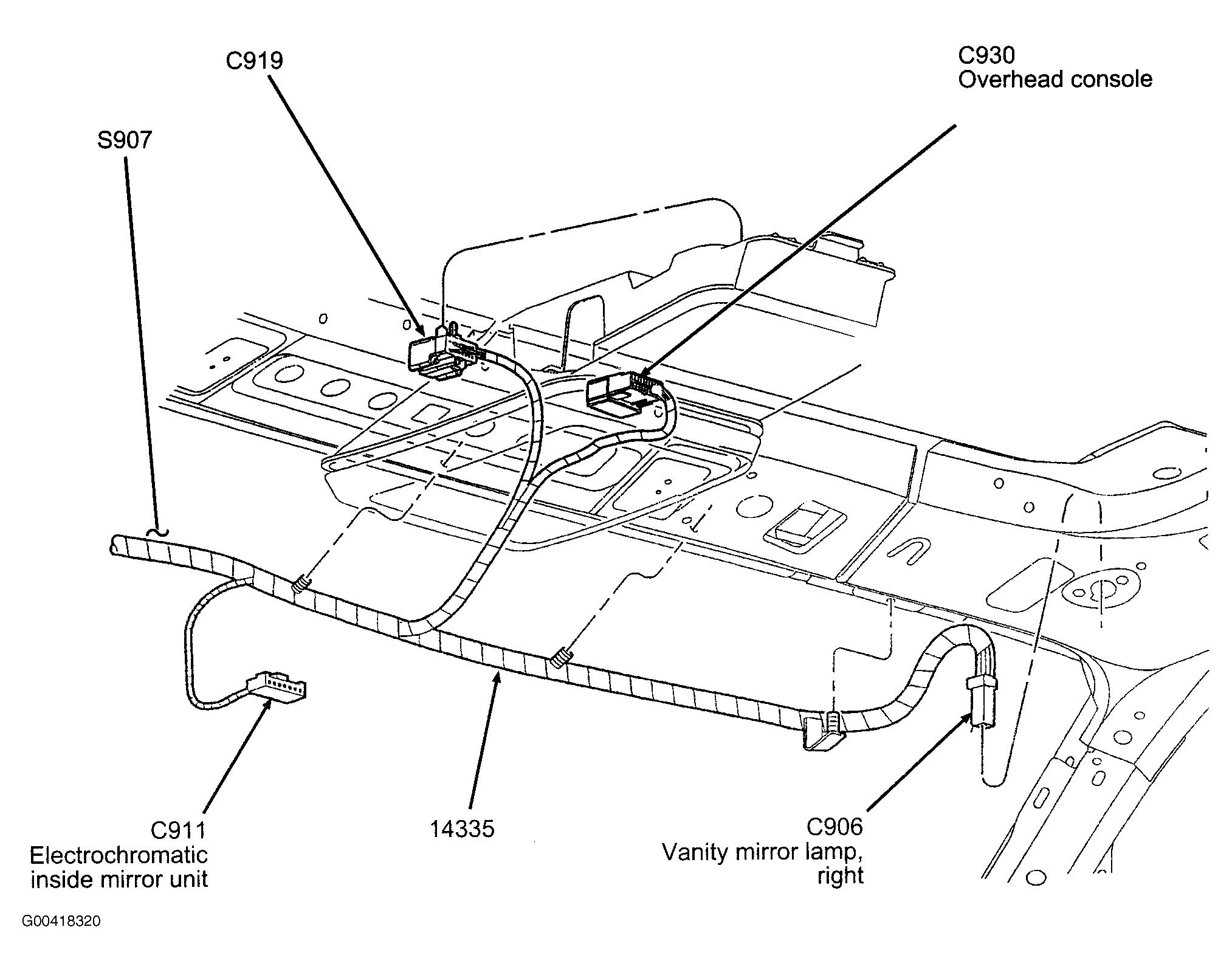

Fig 28: Right Front Roof Panel

G00418320

Courtesy of FORD MOTOR CO.

Fig 29: Rear Wheel Speed Sensors

G00267621

Courtesy of FORD MOTOR CO.

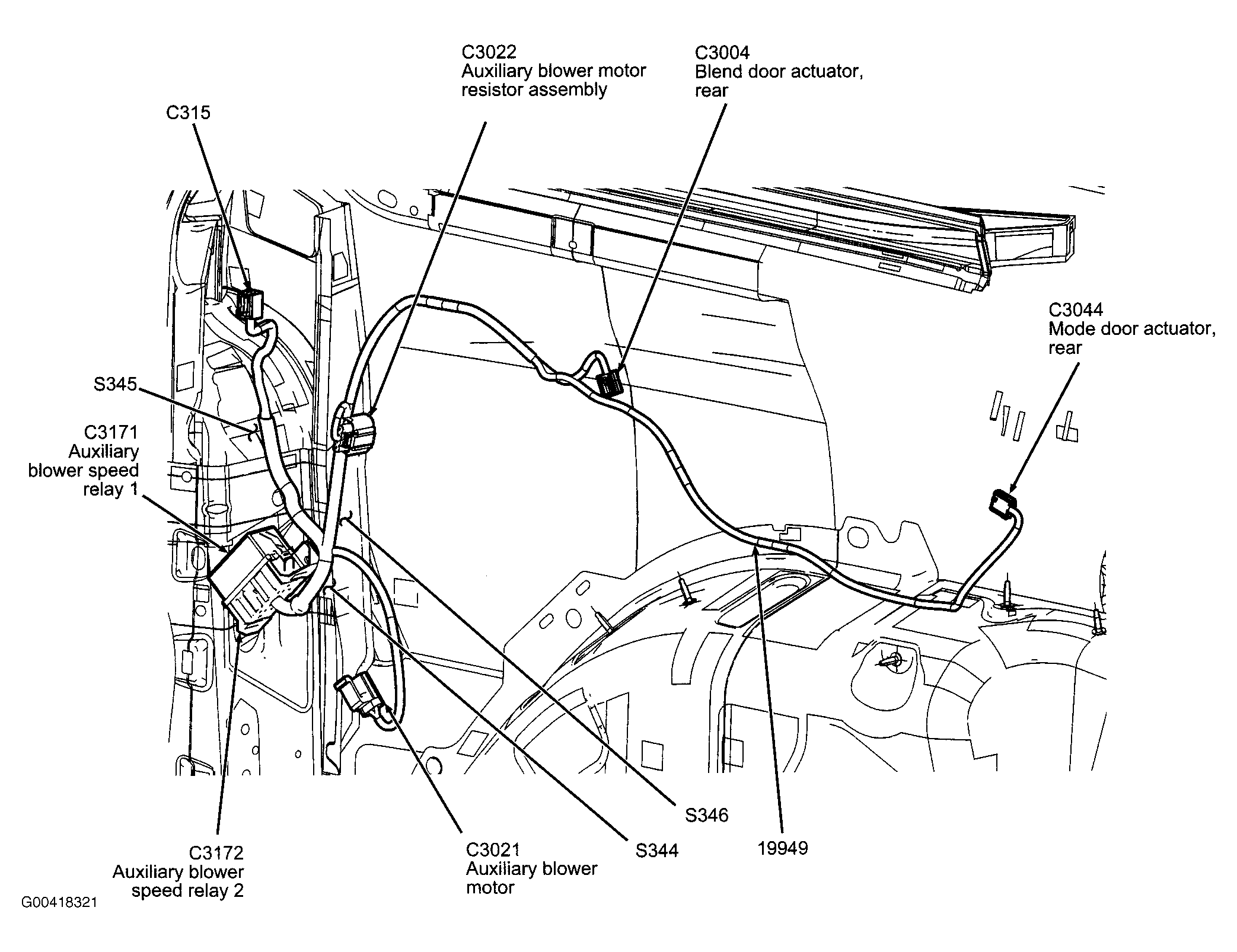

Fig 30: Left Rear Wheelwell

G00418321

Courtesy of FORD MOTOR CO.

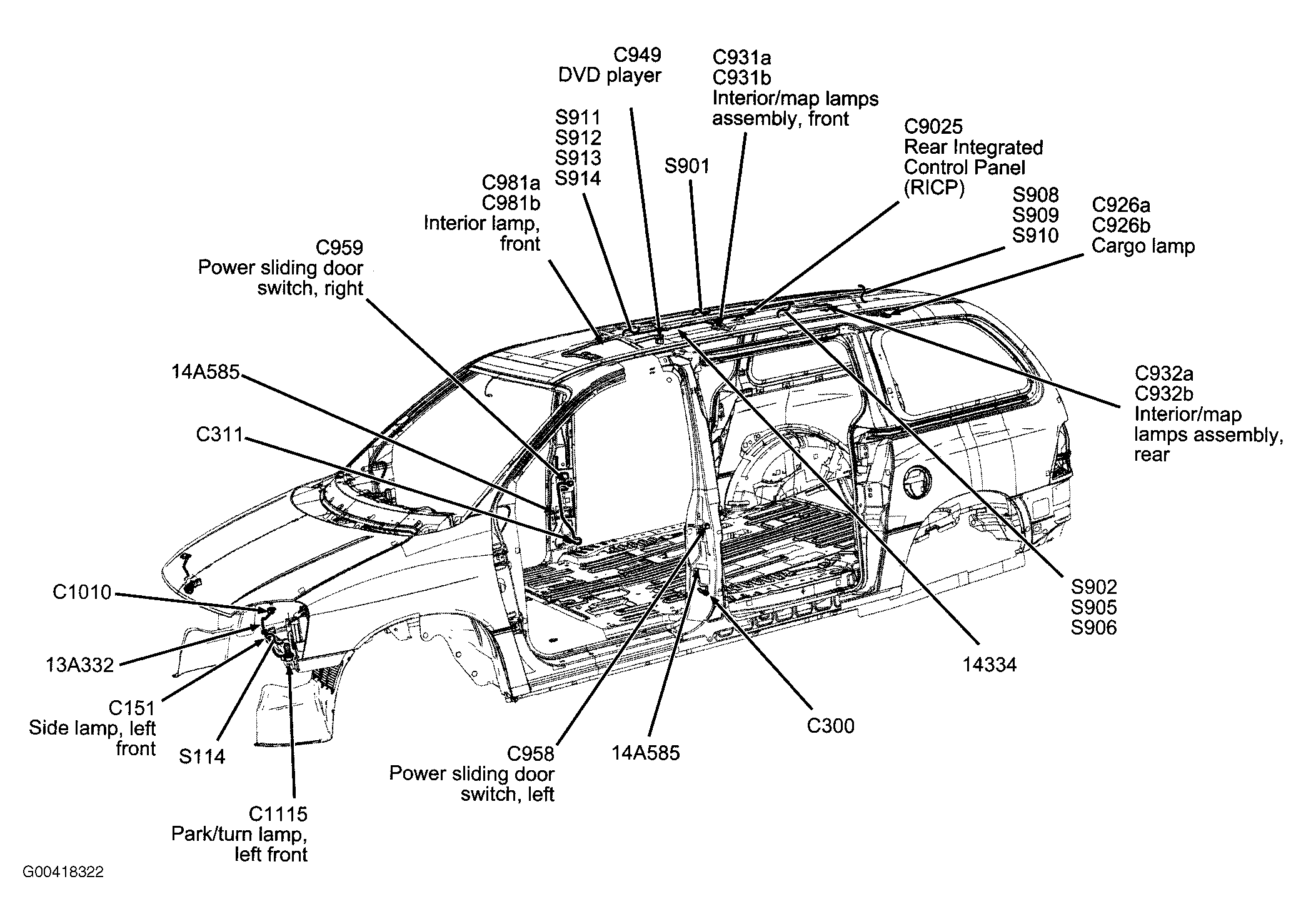

Fig 31: Left Side Of Vehicle

G00418322

Courtesy of FORD MOTOR CO.

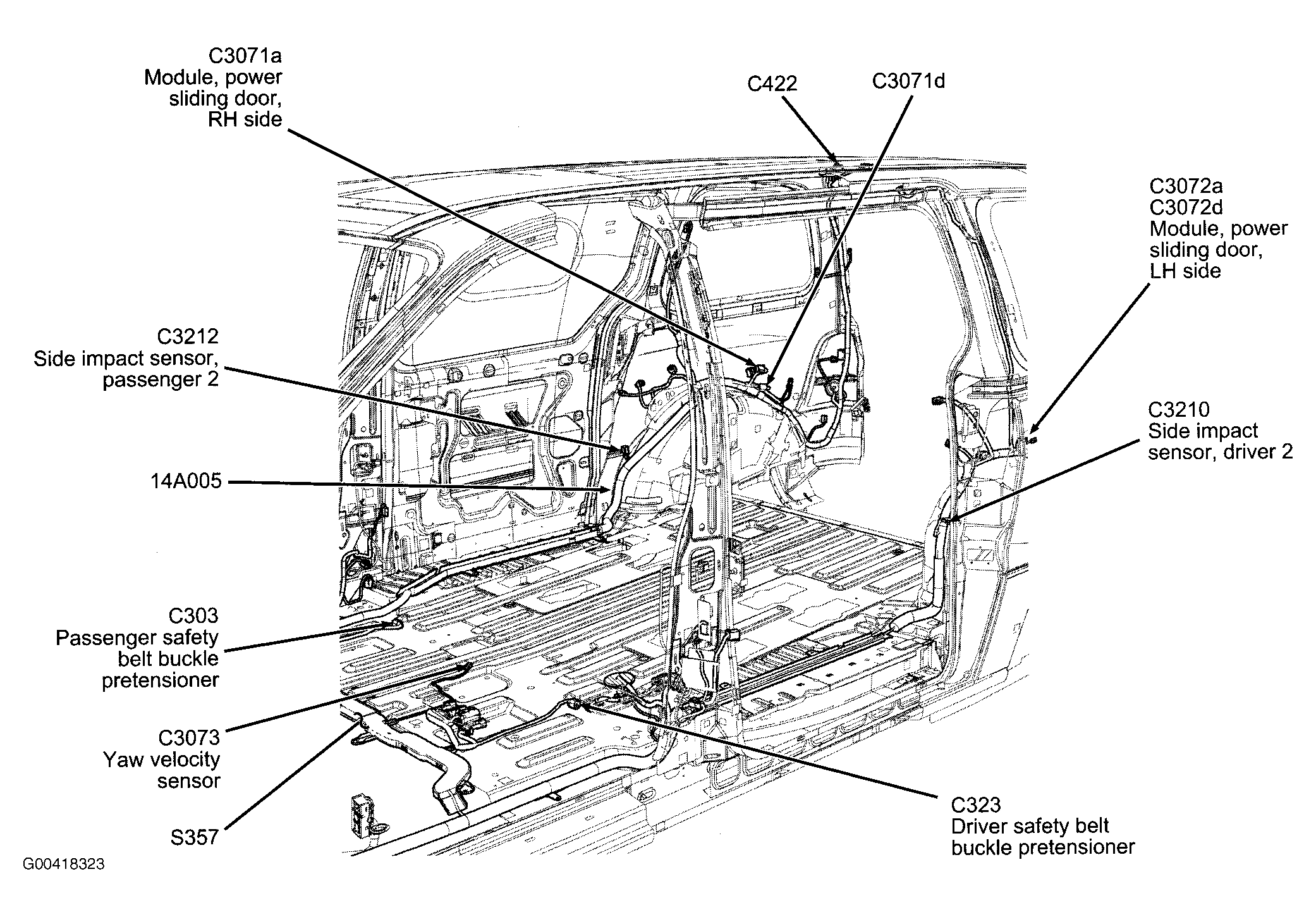

Fig 32: Right Rear Of Vehicle

G00418323

Courtesy of FORD MOTOR CO.

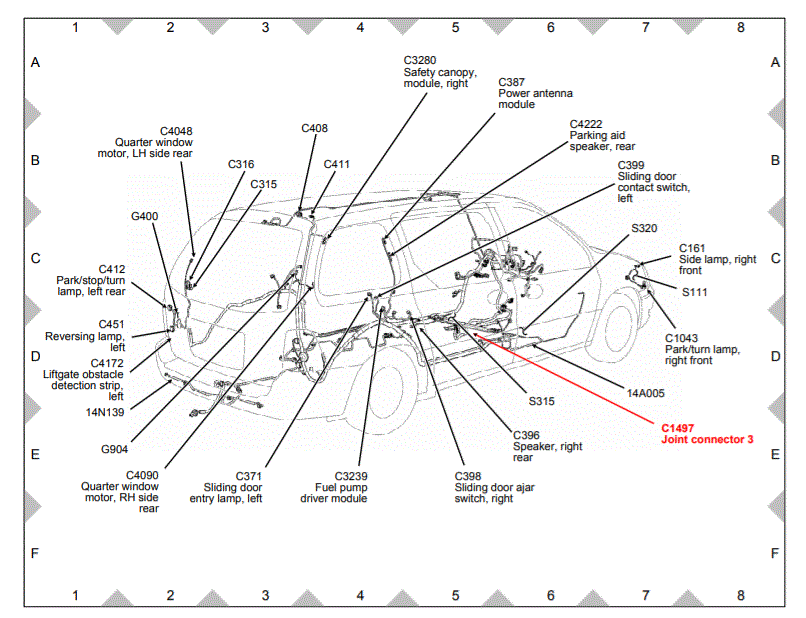

Fig 33: Vehicle underbody, under driver seat

G00596540

Courtesy of FORD MOTOR CO.
