Disassembly And Assembly Of Subassemblies: Piston: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Pin Remover/Replacer 303-S024 (T68P-6135-A)

MATERIALS

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

NOTE: 4.2L shown, 3.9L similar.

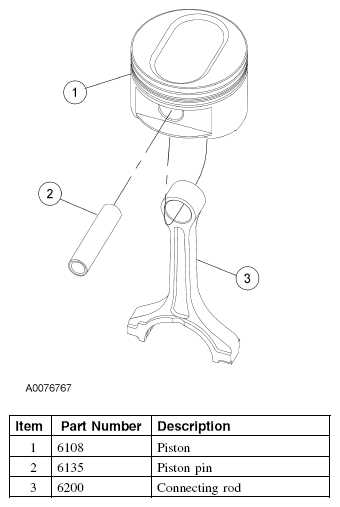

Fig 1: Identifying Piston, Piston Pin And Connecting Rod

Courtesy of FORD MOTOR CO.
