Engine Front Cover: Notes

SPECIAL TOOL(S)

G04660319Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Vibration Damper
303-009 (T58P-6316-D)
G04660320Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Vibration Damper
303-176 (T82L-6316-B)
G04660321Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Vibration Damper
303-175 (T82L-6316-A)
G04660322Courtesy of FORD MOTOR CO.
 Remover, Oil Seal
303-409 (T92C-6700-CH)
G04660323Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Front Oil Seal
303-335 (T82L-6316-A)
G04660324Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Front Oil Seal
303-474 (T94P-6701-AH)
MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Thread Sealant with PTFE TA-24 WSK-M2G350-A2
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

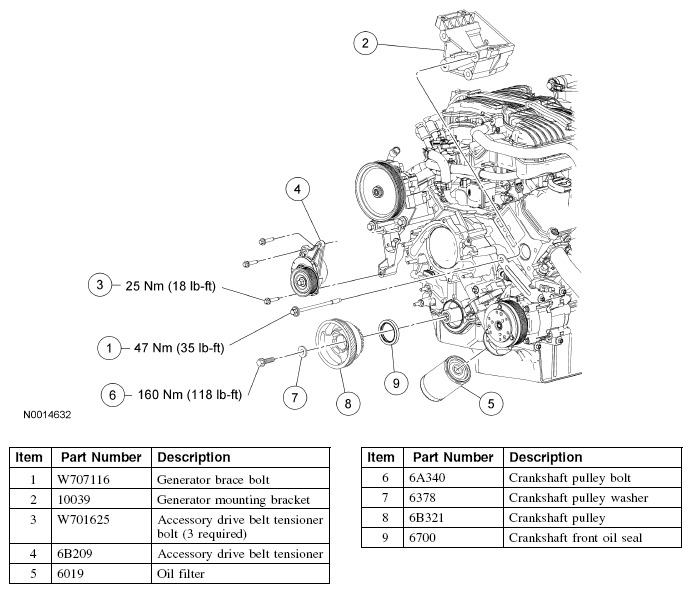

Fig 1: Engine Front Cover Replacement Components (1 Of 2) With Torque Specifications
G04660325Courtesy of FORD MOTOR CO.

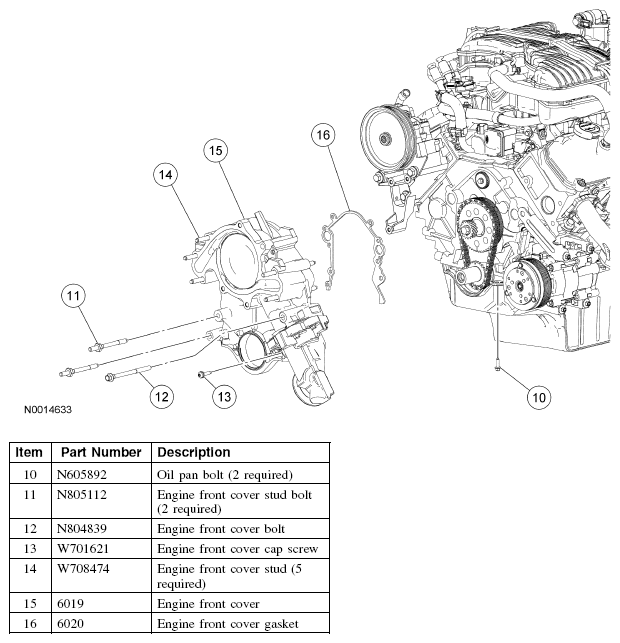

Fig 2: Identifying Engine Front Cover Components (2 Of 2)
G04660326Courtesy of FORD MOTOR CO.
