Lower End Components - Exploded

Crankshaft Pulley and Front Seal

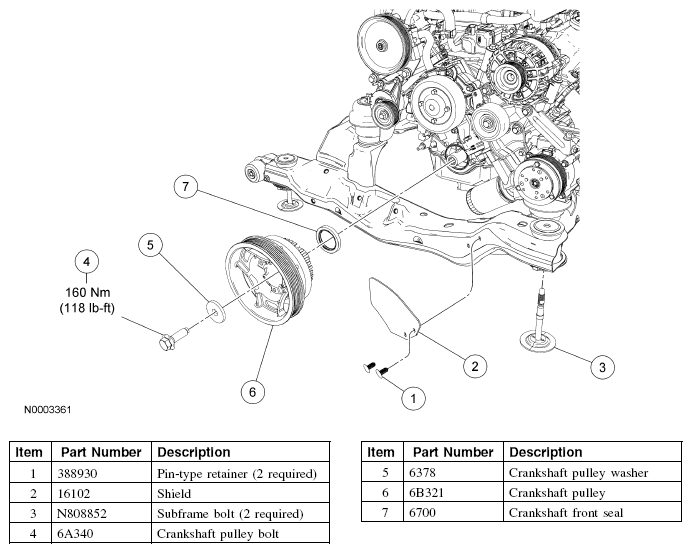

Fig 1: Exploded View Of Lower End Components - Crankshaft Pulley And Front Seal With Torque Specification

Courtesy of FORD MOTOR CO.

Flexplate and Crankshaft Rear Seal

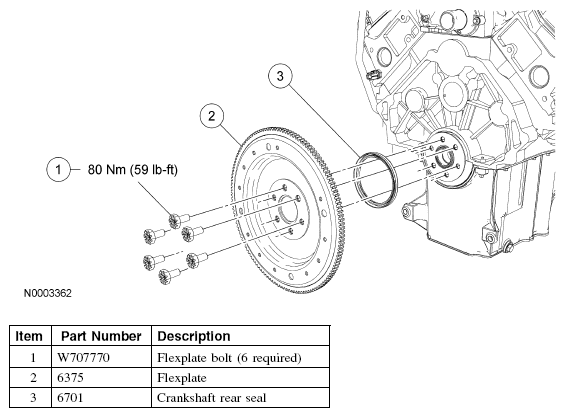

Fig 2: Exploded View Of Lower End Components - Flexplate And Crankshaft Rear Seal With Torque Specification

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
