Lower Intake Manifold: Notes

MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A

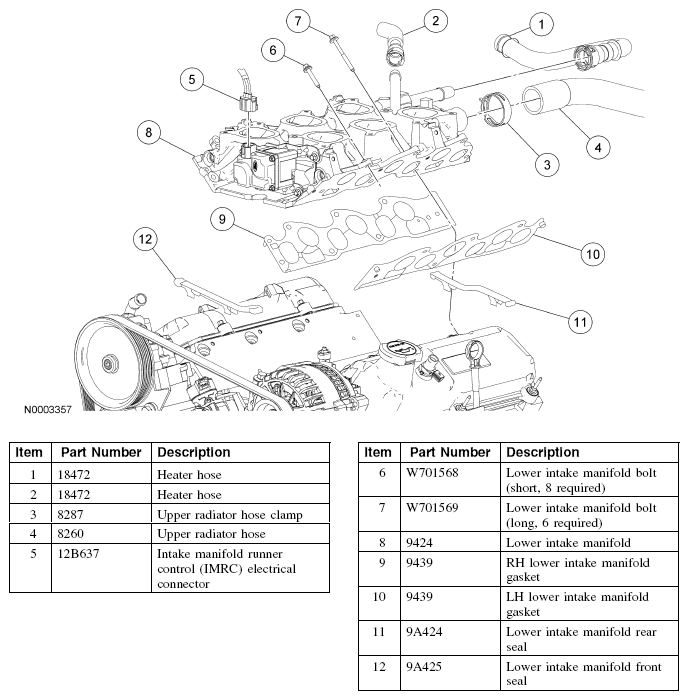

Fig 1: Identifying Lower Intake Manifold Components
G04660277Courtesy of FORD MOTOR CO.
