Upper Intake Manifold: Notes

SPECIAL TOOL(S)

G04660264Courtesy of FORD MOTOR CO.
Remover, Spark Plug Wire
303-106 (T74P-6666-A)
MATERIALS

Item Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A ESE-M1C171-A

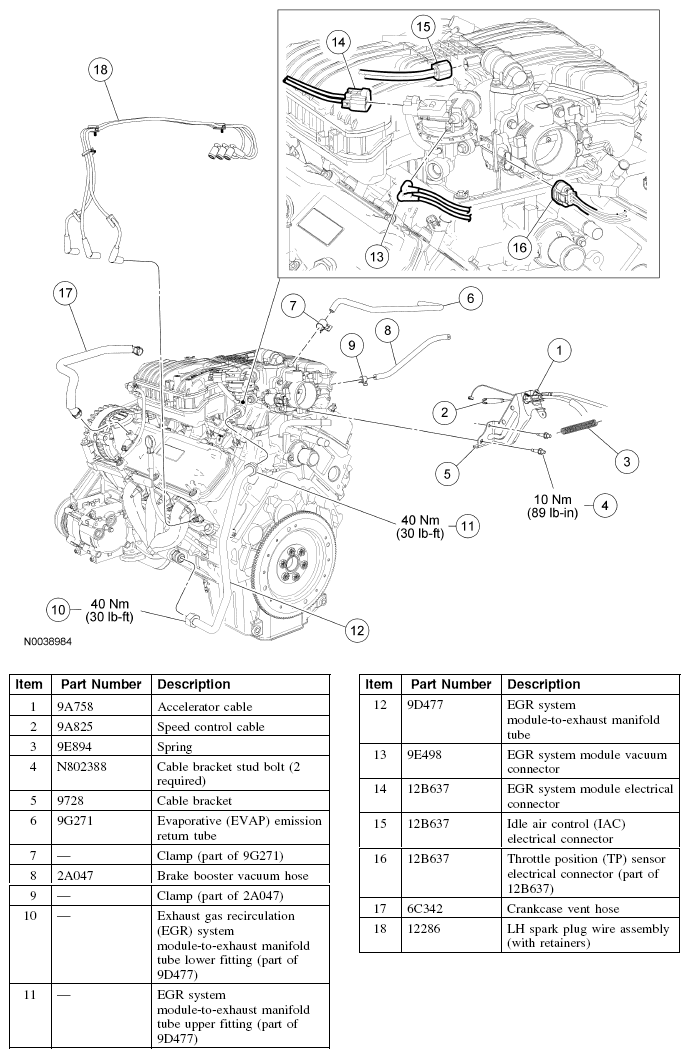

Fig 1: Upper Intake Manifold Replacement Components (1 Of 2) With Torque Specifications
G04660265Courtesy of FORD MOTOR CO.

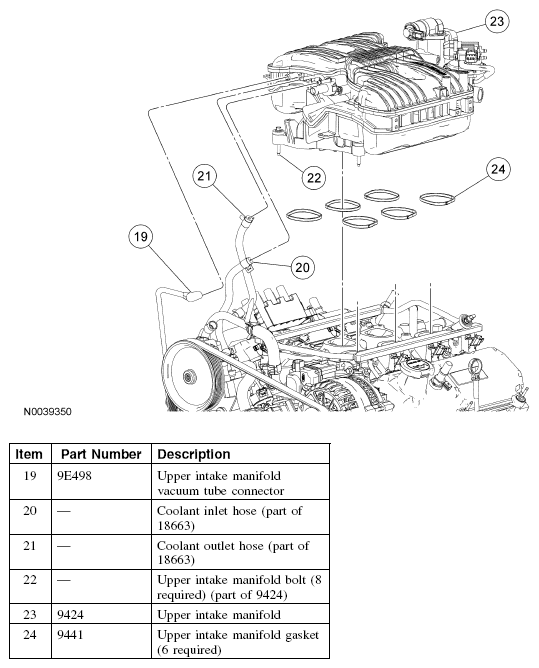

Fig 2: Identifying Upper Intake Manifold Components (2 Of 2)
G04660266Courtesy of FORD MOTOR CO.
