Accelerator Control System Components - Exploded View

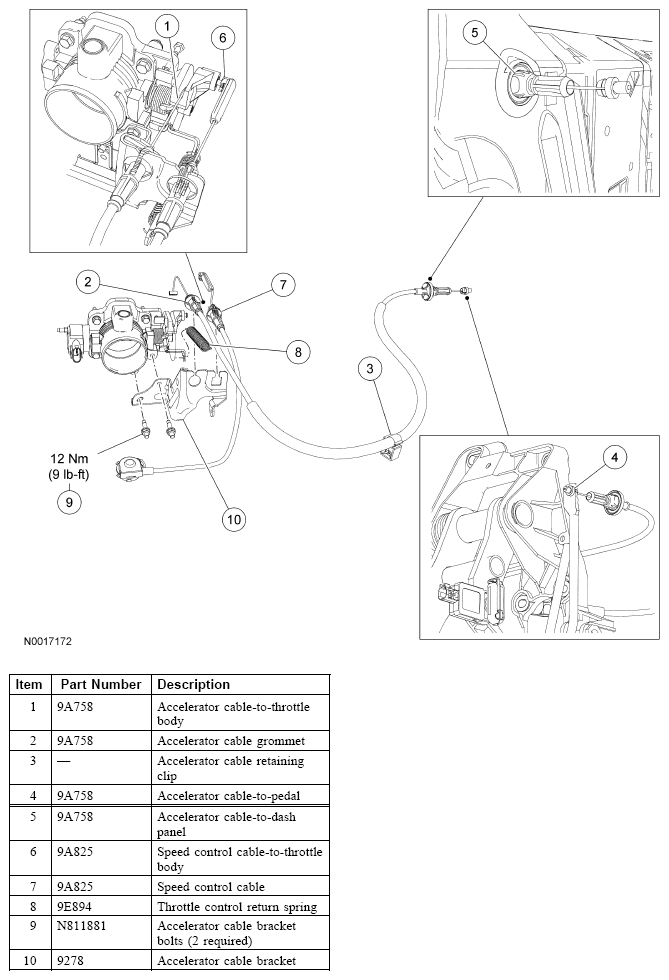

Fig 1: Exploded View Of Accelerator Control System Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
