Engine Ignition Components - Exploded View

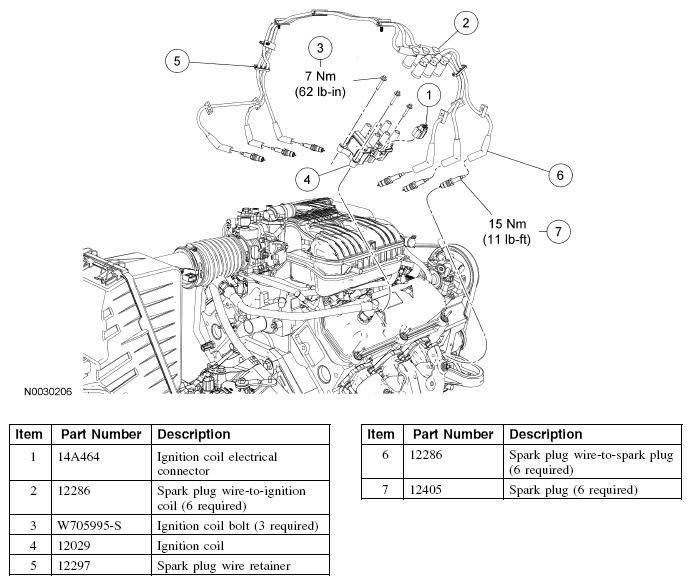

Fig 1: Exploded View Of Engine Ignition Components
G04660851Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure in this article.
