Spark Plugs: Installation

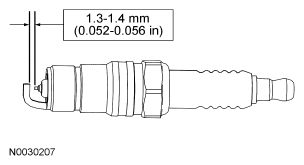

- Adjust the spark plug gap as necessary.
- Install the 6 spark plugs.
- Tighten to 15 Nm (11 lb-ft).
- Apply dielectric grease to the inside of the spark plug wire boots before attaching to the spark plugs.
- Connect the 6 spark plug wires to the spark plugs.
- Install the cowl lower panel and the bolts.
- Tighten to 6 Nm (53 lb-in).
- Connect the windshield wiper motor electrical connector.
- Install the cowl panel grille. For additional information, refer to FRONT END BODY PANELS .
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
CAUTION:
Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
CAUTION:
Spark plug wires must be connected to the correct spark plug.
CAUTION:
Make sure the spark plug boots are positioned so the spark plug wires do not contact the exhaust manifold.
