Chain Cover: Disassembly

    NOTE: If installation of a new chain cover is necessary, the main control wire harness must be transferred.

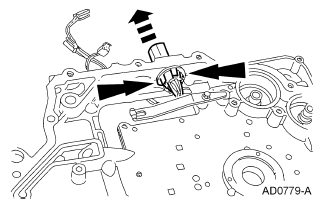

    Fig 1: Locating Main Control Wire Harness
    G04661306Courtesy of FORD MOTOR CO.
  1. Press tabs and remove the harness.
  2. Remove the thrust washers.
    1. Remove the No. 1 drive sprocket thrust washer.
    2. Remove the No. 3 chain cover thrust washer.

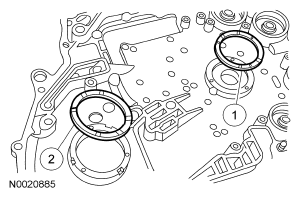

      Fig 2: Identifying No. 1 Drive Sprocket Thrust Washer And No. 3 Chain Cover Thrust Washer
      G04661307Courtesy of FORD MOTOR CO.
  3. Remove the bolt and the manual valve detent spring.

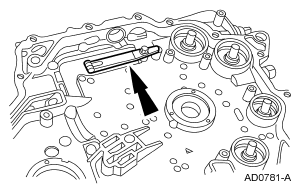

    Fig 3: Locating Manual Valve Detent Spring
    G04661308Courtesy of FORD MOTOR CO.
  4. Remove the accumulator piston shafts.

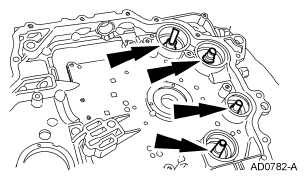

    Fig 4: Locating Accumulator Piston Shafts
    G04661309Courtesy of FORD MOTOR CO.
    5. CAUTION: Do not use any objects in the piston shaft bore for removal. Damage to the bore will result.
    NOTE: Tag and mark the location of the accumulator pistons.
    Fig 5: Locating Accumulator Pistons
    G04661310Courtesy of FORD MOTOR CO.
  5. Remove the accumulator pistons.
    6. CAUTION: Use care not to damage the machined surface of the chain cover.
    NOTE: The use of side cutters supported by a small piece of wood will aid in the removal of the bimetal retaining collars.

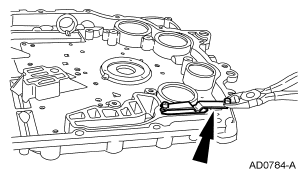

    Fig 6: Locating Bi-Metal Element
    G04661311Courtesy of FORD MOTOR CO.
  6. Remove the bi-metal element and the thermostat plate.
