Driven Sprocket: Notes

SPECIAL TOOL(S)

G04661384Courtesy of FORD MOTOR CO.
 Adapter for 303-224 (Handle)
205-153 (T80T-4000-W)
G04661385Courtesy of FORD MOTOR CO.
 Installer, Driven Sprocket Wheel
307-344 (T95P-7H150-A)

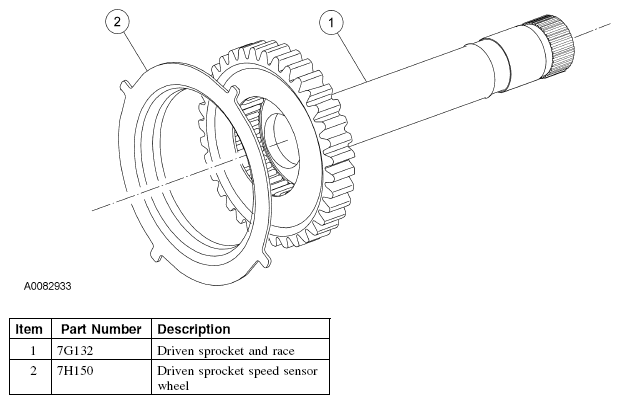

Fig 1: Identifying Driven Sprocket Components
G04661386Courtesy of FORD MOTOR CO.
