Final Drive: Notes

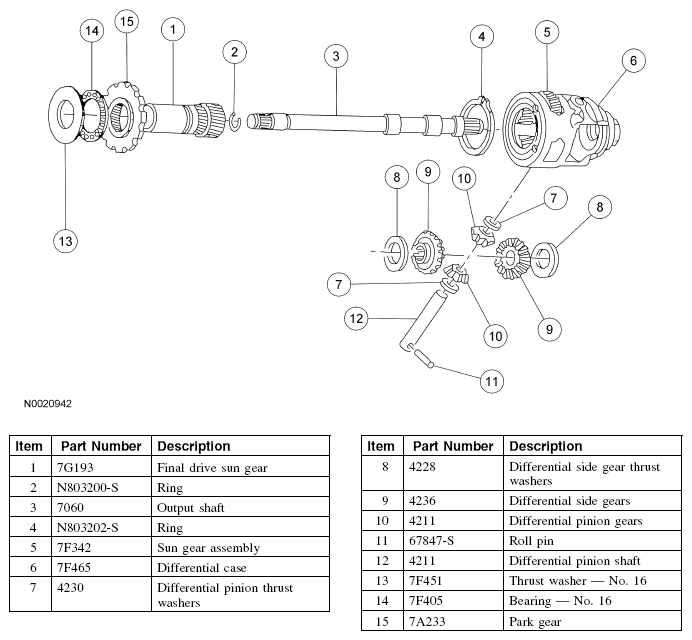

Fig 1: Identifying Final Drive Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
