Pump Assembly: Disassembly

Remove the bolts.

Fig 1: Locating Main Control Pump Assembly Bolts
Courtesy of FORD MOTOR CO.
Remove the valve body separator plates and gaskets.

Fig 2: Locating Valve Body Separator Plates And Gaskets
Courtesy of FORD MOTOR CO.
Remove the B8 check ball and note the location.

Fig 3: Locating Check Ball
Courtesy of FORD MOTOR CO.
Remove the bolts and the pump cover.

Fig 4: Locating Pump Cover Bolts
Courtesy of FORD MOTOR CO.

WARNING: Use extreme caution when removing spring to prevent personal injury.

CAUTION: Place a piece of cardboard or a suitable material under a screwdriver to prevent damage to the housing gasket surface.

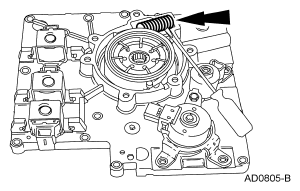

Fig 5: Locating Bore Ring Spring

Courtesy of FORD MOTOR CO.

Remove the bore ring spring.
Remove the pump bore ring pin.

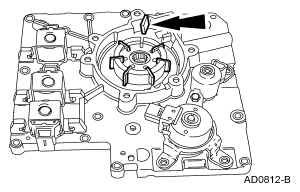

Fig 6: Locating Pump Bore Ring Pin
Courtesy of FORD MOTOR CO.
Remove the metal bore ring and support seal.
1. Remove the bore ring side seal (metal).
2. Remove the support seal (O-ring).

  Fig 7: Identifying Metal Bore Ring And Support Seal
  Courtesy of FORD MOTOR CO.
Remove the pump bore ring radial seal and support.
1. Remove the pump bore ring radial seal (orange rectangular).
2. Remove the pump bore ring radial seal support (black round).

  Fig 8: Identifying Pump Bore Ring Radial Seal And Support
  Courtesy of FORD MOTOR CO.
Remove the top pump vane support ring.

Fig 9: Locating Top Pump Vane Support Ring
Courtesy of FORD MOTOR CO.
Remove the outer pump bore ring.

Fig 10: Locating Outer Pump Bore Ring
Courtesy of FORD MOTOR CO.
Remove the vanes.

Fig 11: Locating Vanes
Courtesy of FORD MOTOR CO.
Remove the rotor.

Fig 12: Locating Rotor
Courtesy of FORD MOTOR CO.
Remove the bottom pump vane support ring.

Fig 13: Locating Vane Support Ring
Courtesy of FORD MOTOR CO.
Remove the EPC, TCC solenoids and seals.
- Remove the bolts.
- Remove the EPC and TCC solenoids.

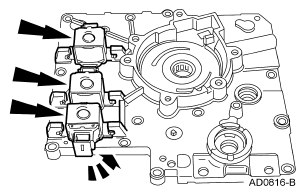

  Fig 14: Locating EPC And TCC Solenoids
  Courtesy of FORD MOTOR CO.

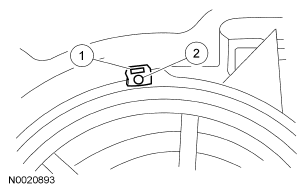

NOTE: The shift solenoids are interchangeable. Take note of the shift solenoid connector orientation.

Fig 15: Locating Solenoid Connector

Courtesy of FORD MOTOR CO.

Remove the shift solenoids by pressing locking tab with a screwdriver and rotating them.
Inspect the fluid pump body bearing for wear or damage.

CAUTION: The machined passage surfaces of the pump body must be protected when removing the damaged bearing.

CAUTION: Do not press with excessive force when removing the damaged bearing.

Fig 16: Identifying Special Tool (307-394)

Courtesy of FORD MOTOR CO.

If required, use the special tool and a suitable press to remove the bearing assembly.
