Differential Seals: Notes

SPECIAL TOOL(S)

G04661121Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Front Oil Seal
303-107 (T74P-6700-A)
G04661122Courtesy of FORD MOTOR CO.
 Installer, Front Cover Oil Seal
303-335 (T88T-6701-A)
G04661123Courtesy of FORD MOTOR CO.
 Step Plate
205-D014 (D80L-630-3) (Part of 205-DS011 D80L-630-A) or equivalent
G04661124Courtesy of FORD MOTOR CO.
 Installer, Halfshaft Output Fluid Seal
307-157 (T86P-1177-B)
G04661125Courtesy of FORD MOTOR CO.
 Aligner, Output Shaft Fluid Seal
307-317 (T94P-77001-JH)
MATERIALS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) US; CXT-5LM12 (Canada) MERCON® V

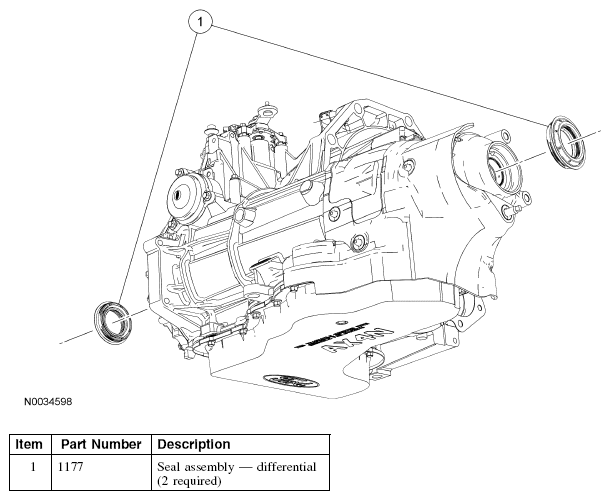

Fig 1: Identifying Differential Seals
G04661126Courtesy of FORD MOTOR CO.
