Digital Transmission Range (TR) Sensor: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Place the transaxle range selector in NEUTRAL.

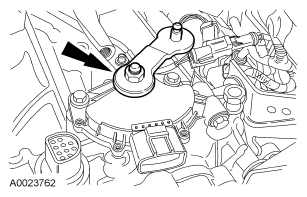

Fig 1: Identifying Transaxle Range Selector In Neutral
Courtesy of FORD MOTOR CO.
Disconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 2: Locating Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Remove the engine air cleaner lid.

Fig 3: Locating Engine Air Cleaner
Courtesy of FORD MOTOR CO.
Remove the air filter assembly.

Fig 4: Locating Air Filter Assembly
Courtesy of FORD MOTOR CO.
Disconnect the digital transmission range (TR) sensor electrical connector.

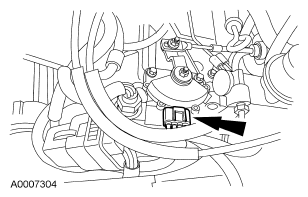

Fig 5: Locating Digital Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the manual control lever and cable.
- Remove the nut.
- Remove the manual control lever and cable.

  Fig 6: Locating Manual Control Lever
  Courtesy of FORD MOTOR CO.
Remove the 2 bolts and the digital TR sensor.

Fig 7: Identifying Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.
