Output Shaft Speed (OSS) Sensor: Notes

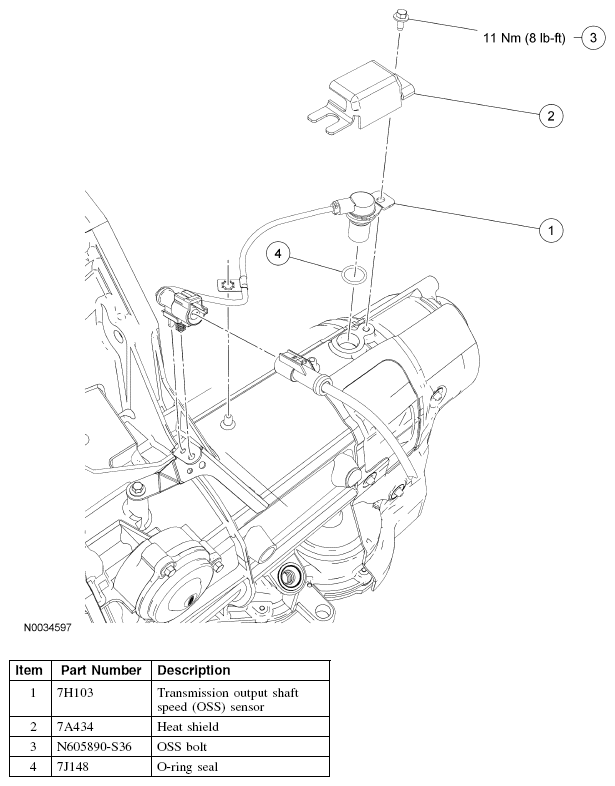

Fig 1: Output Shaft Speed (OSS) Sensor With Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
