Transaxle Support Insulator: Notes

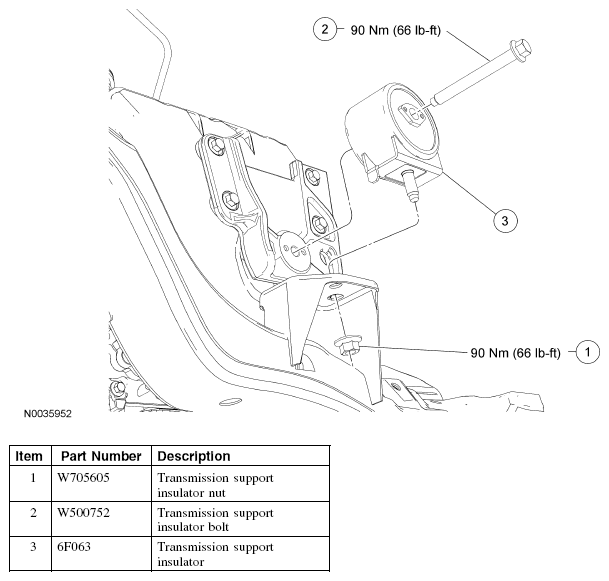

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications
G04661150Courtesy of FORD MOTOR CO.
