Turbine Shaft Speed (TSS) Sensor: Notes

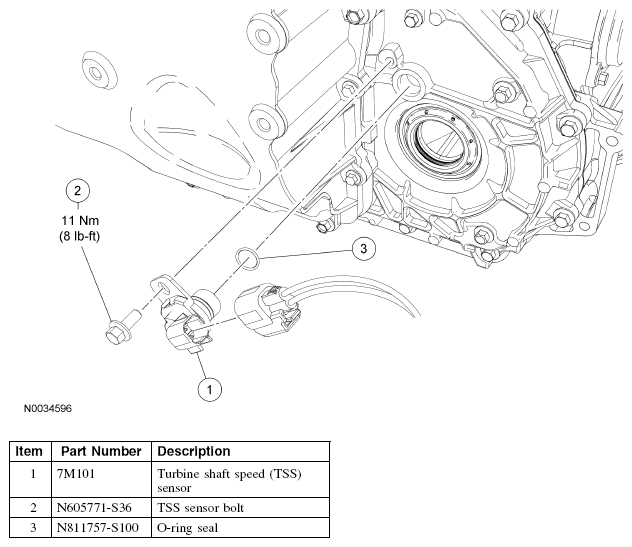

Fig 1: Turbine Shaft Speed (TSS) Sensor With Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
