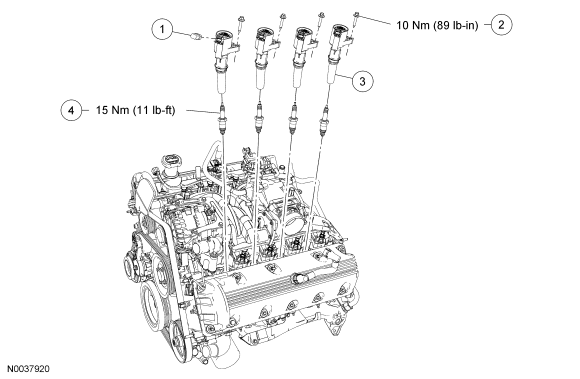

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Ignition coil-on-plug electrical connectors |
| 2 | W706175 | Ignition coil-to-intake manifold bolt (8 required) |
| 3 | 12A366 | Ignition coil (8 required) |
| 4 | 12405 | Spark plug (8 required) |
- For additional information, refer to the procedures in this article.
