Test D: Panic Feature Is Inoperative/Does Not Operate Correctly

PINPOINT TEST D: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

D1:

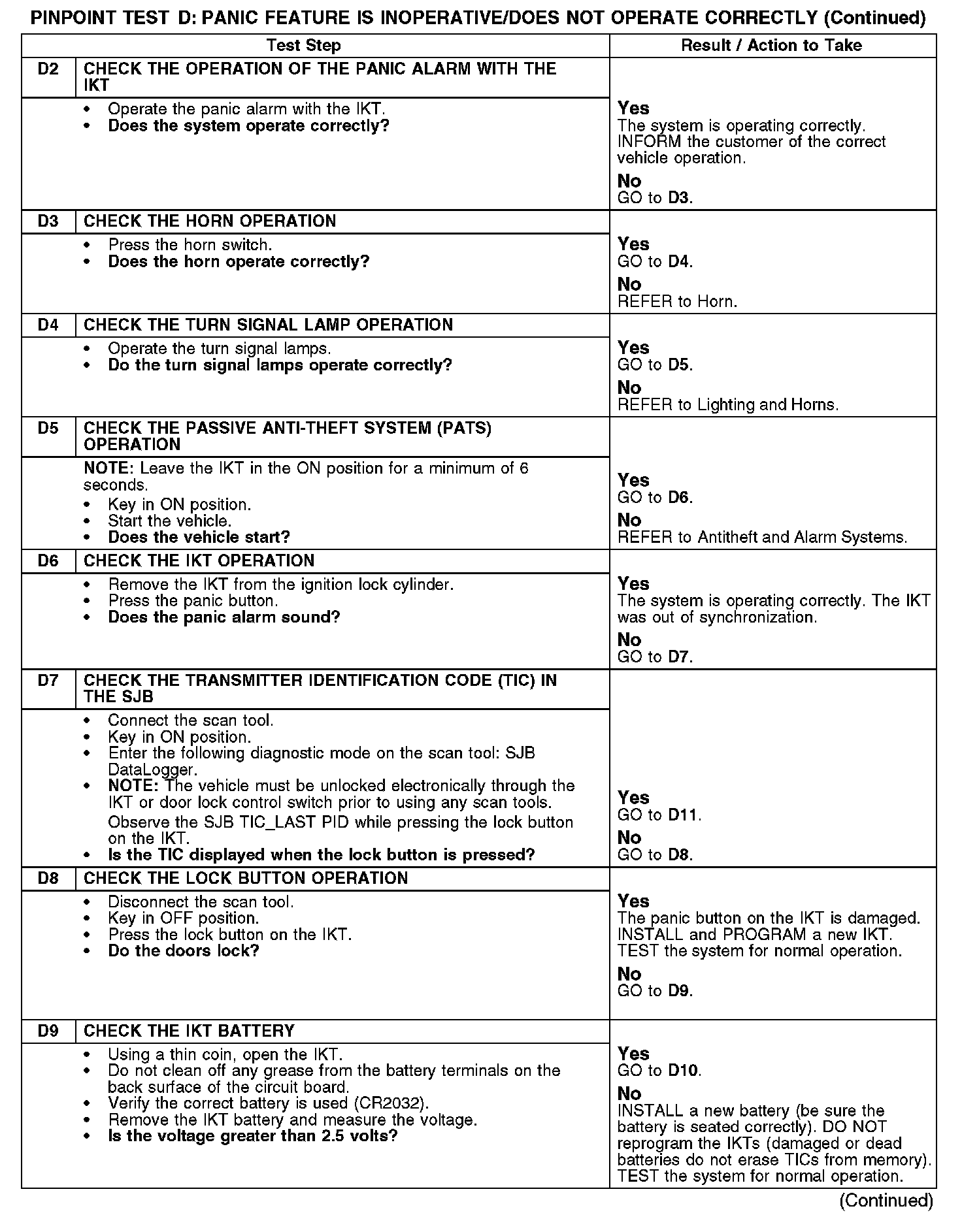

D2-D9:

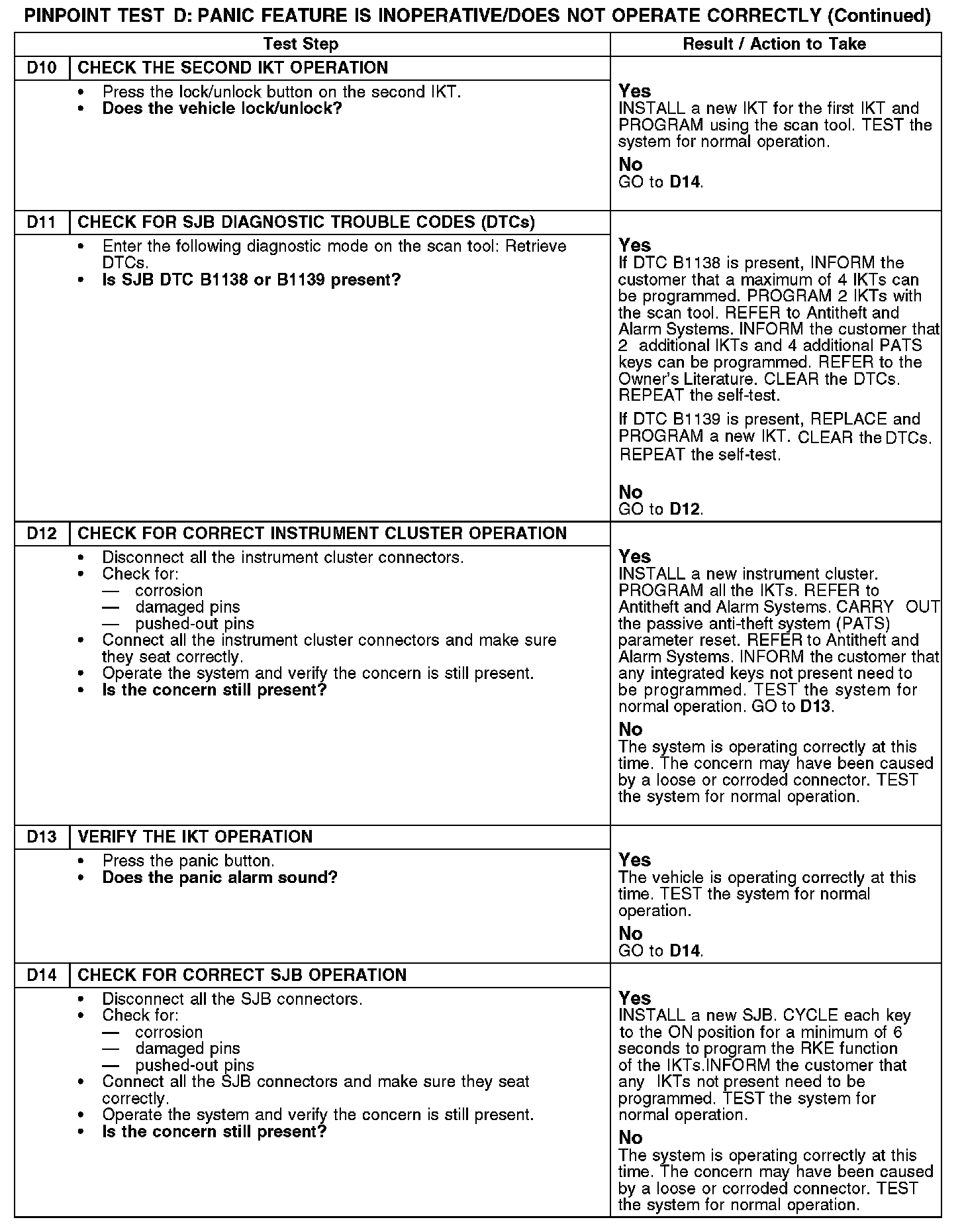

D10-D14:

Normal Operation
The panic function is accomplished by the smart junction box (SJB) receiving a command message from the remote keyless entry (RKE) integrated keyhead transmitter (IKT) through the SJB. The SJB processes the command and sends a signal activating the horn and turn signal lamps.

This pinpoint test is intended to diagnose the following:
- Horn system
- Turn signal lamps system
- IKT battery
- IKT programming
- IKT
- Aftermarket systems
- Instrument cluster
- SJB
