Test M: The Smart Lock Does Not Operate Correctly

PINPOINT TEST M: THE SMART LOCK DOES NOT OPERATE CORRECTLY

M1:

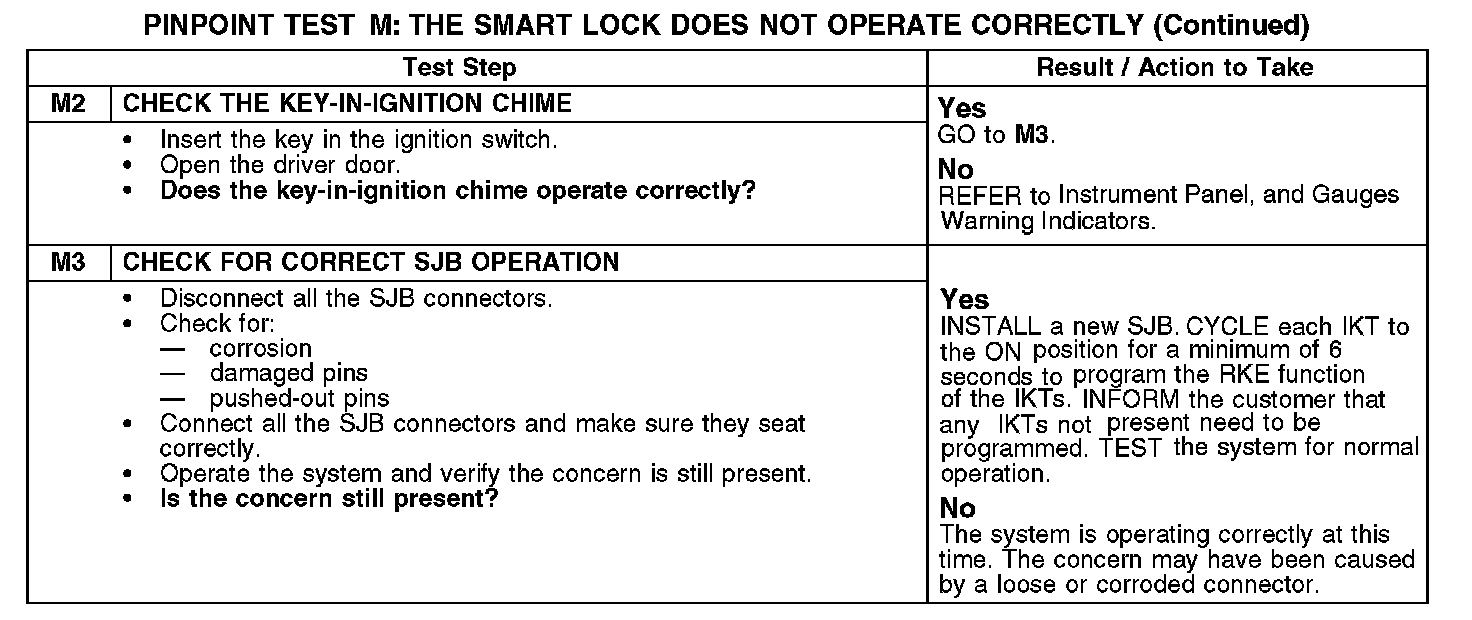

M2-M3:

Normal Operation
The smart junction box (SJB) automatically unlocks all the doors after the doors are locked with a door lock control switch if the key is in the ignition lock cylinder and a front door or the liftgate is ajar.

This pinpoint test is intended to diagnose the following:
- Key-in-ignition switch
- Liftgate ajar switch
- LH front door ajar switch
- RH front door ajar switch
- SJB
