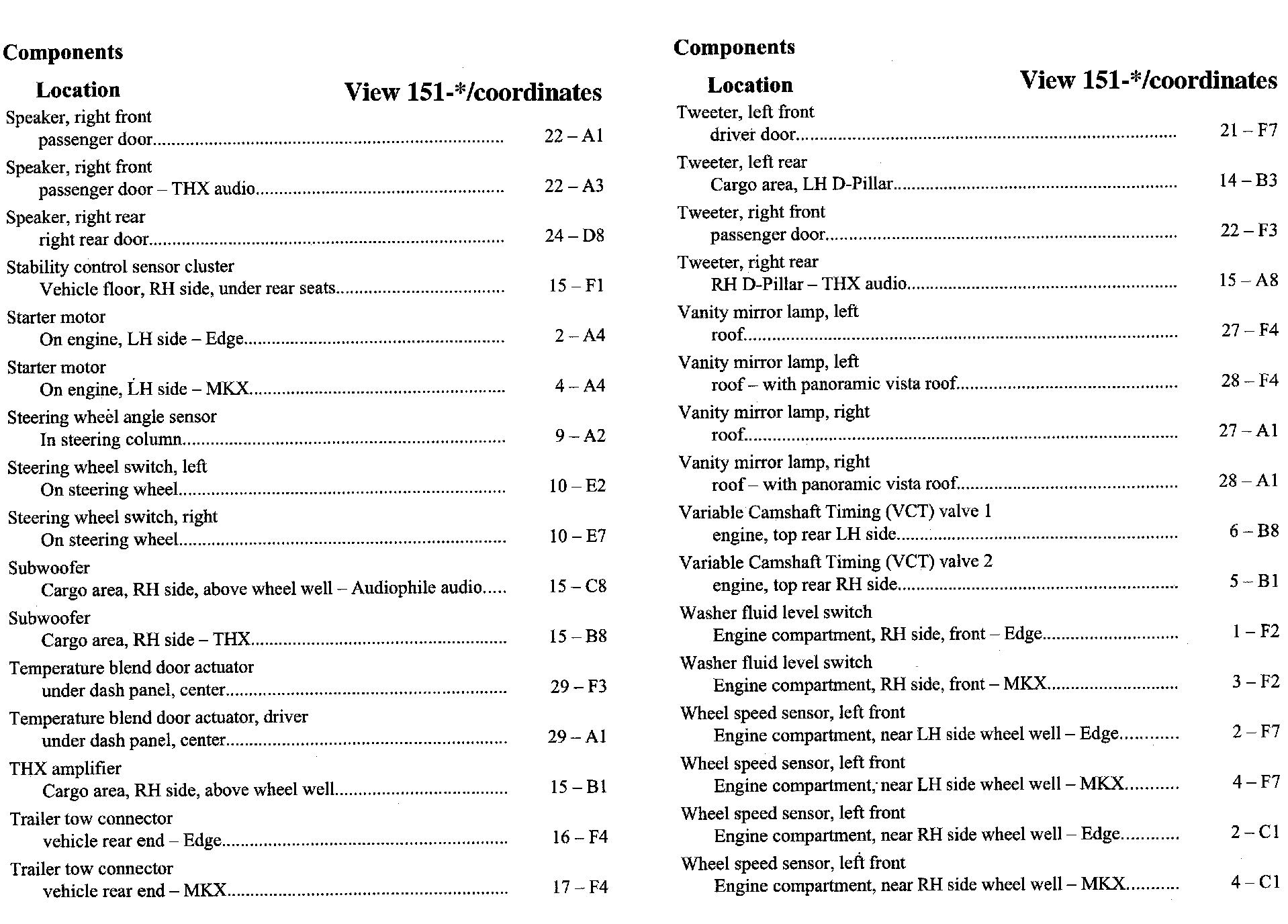

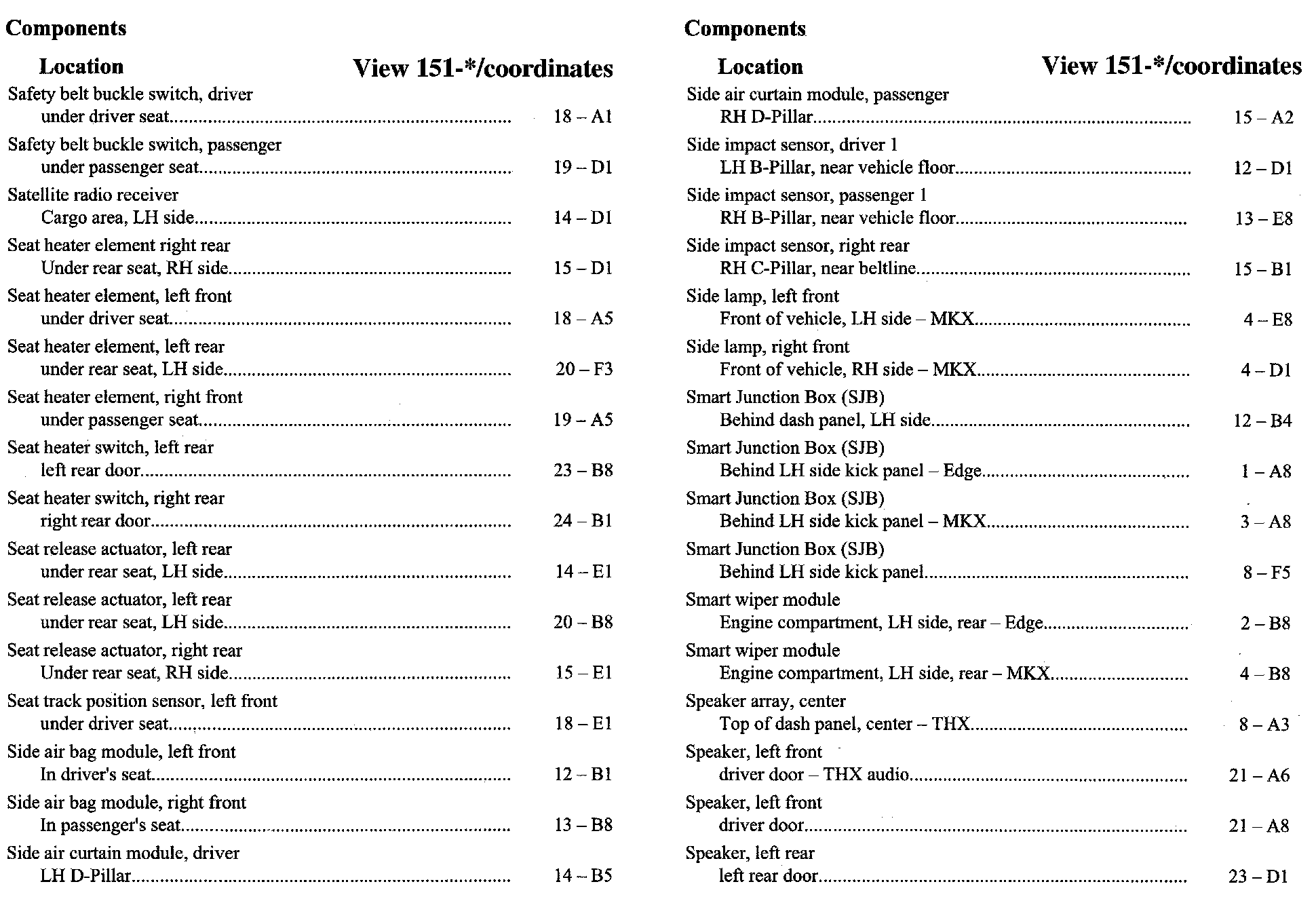

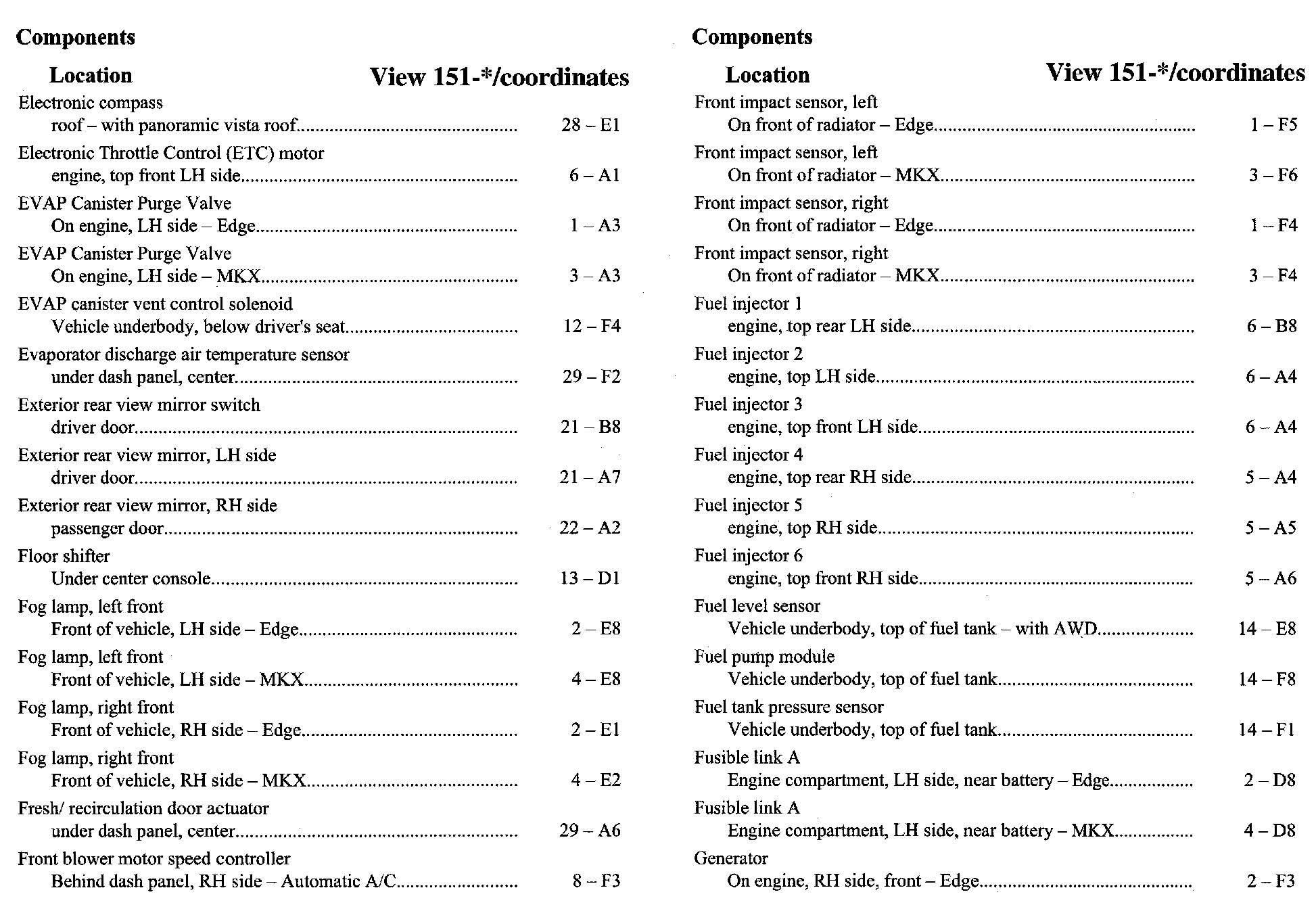

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

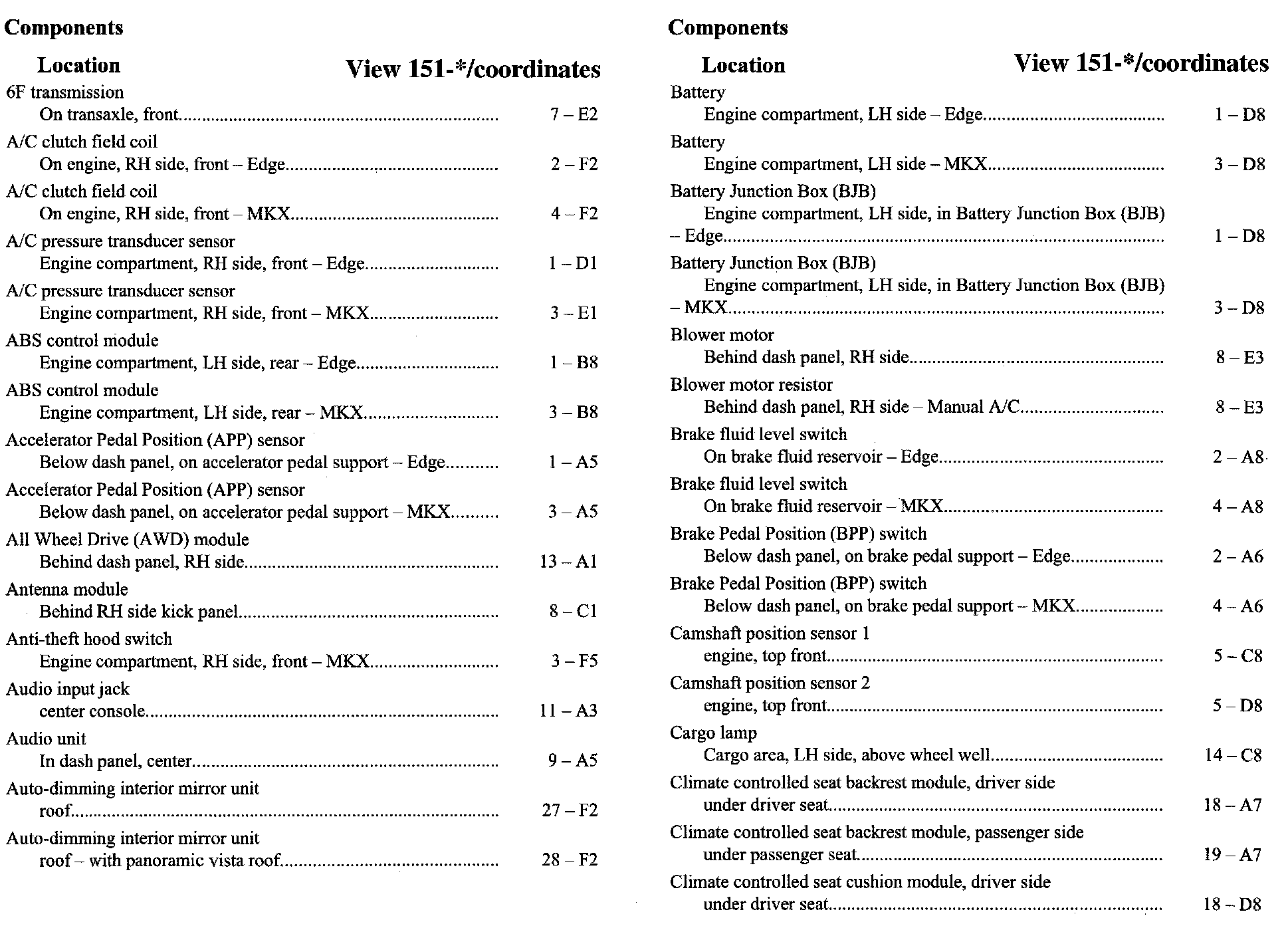

6F-Cl:

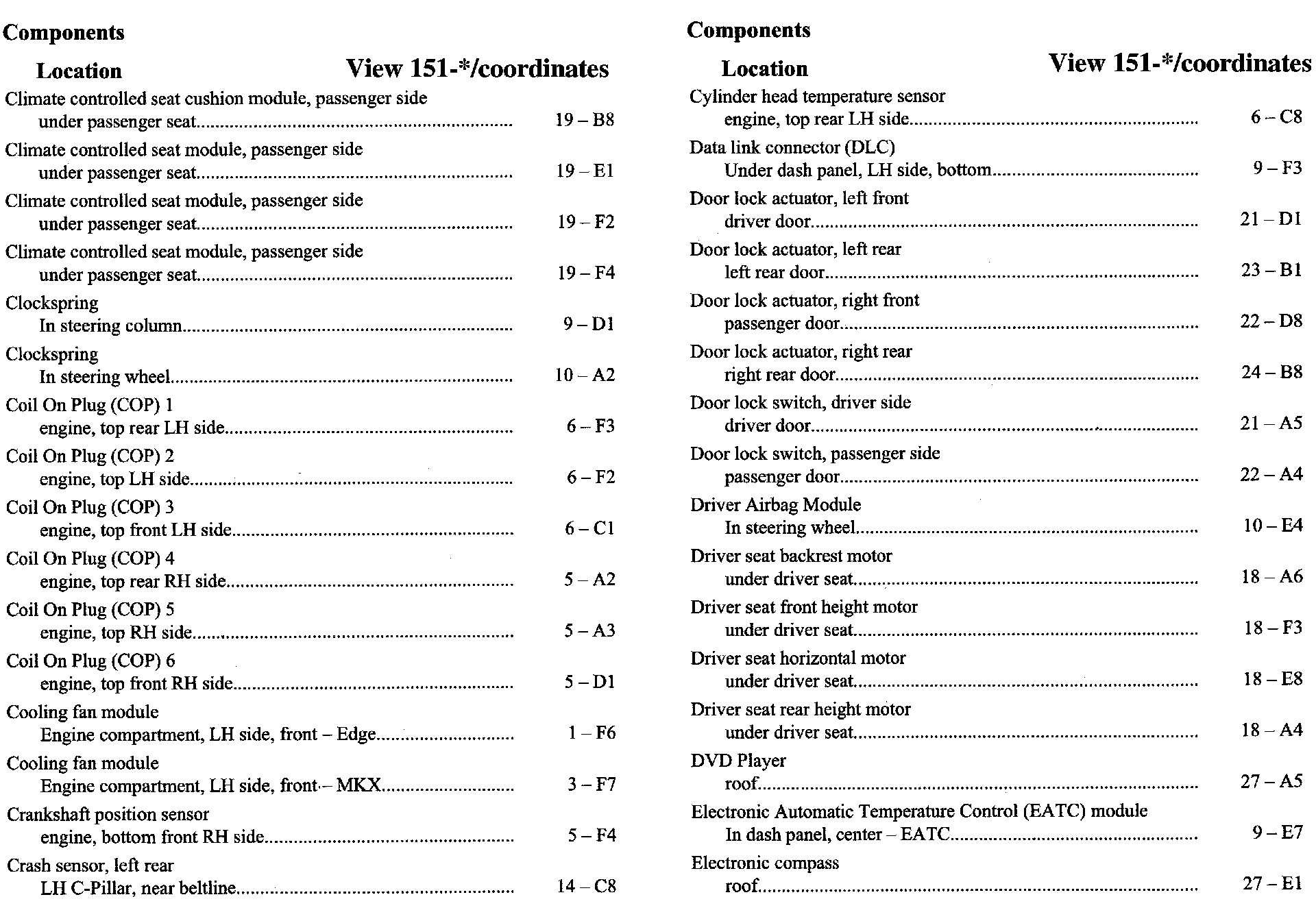

Cl-El:
El-Ge:

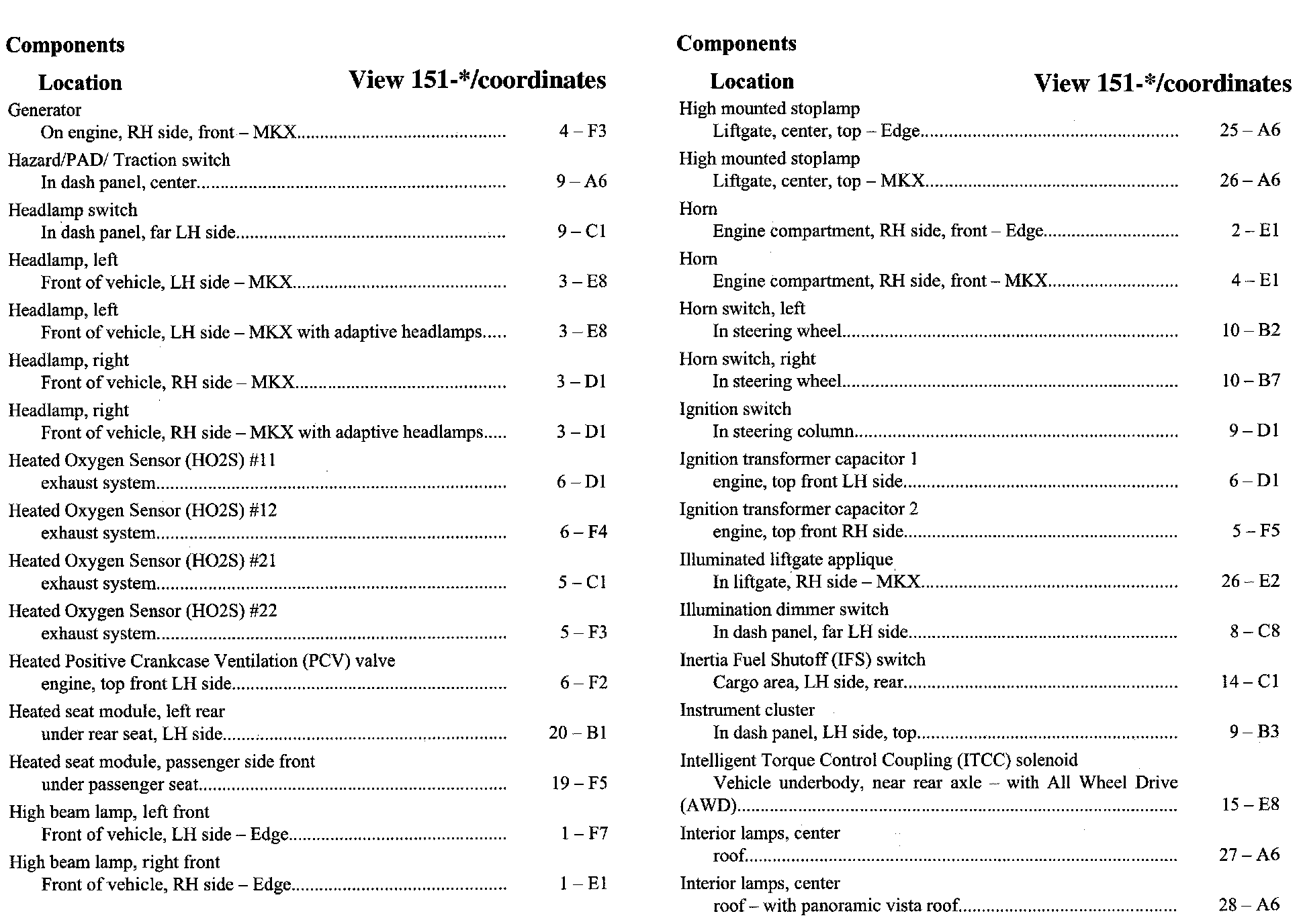

Ge-In:

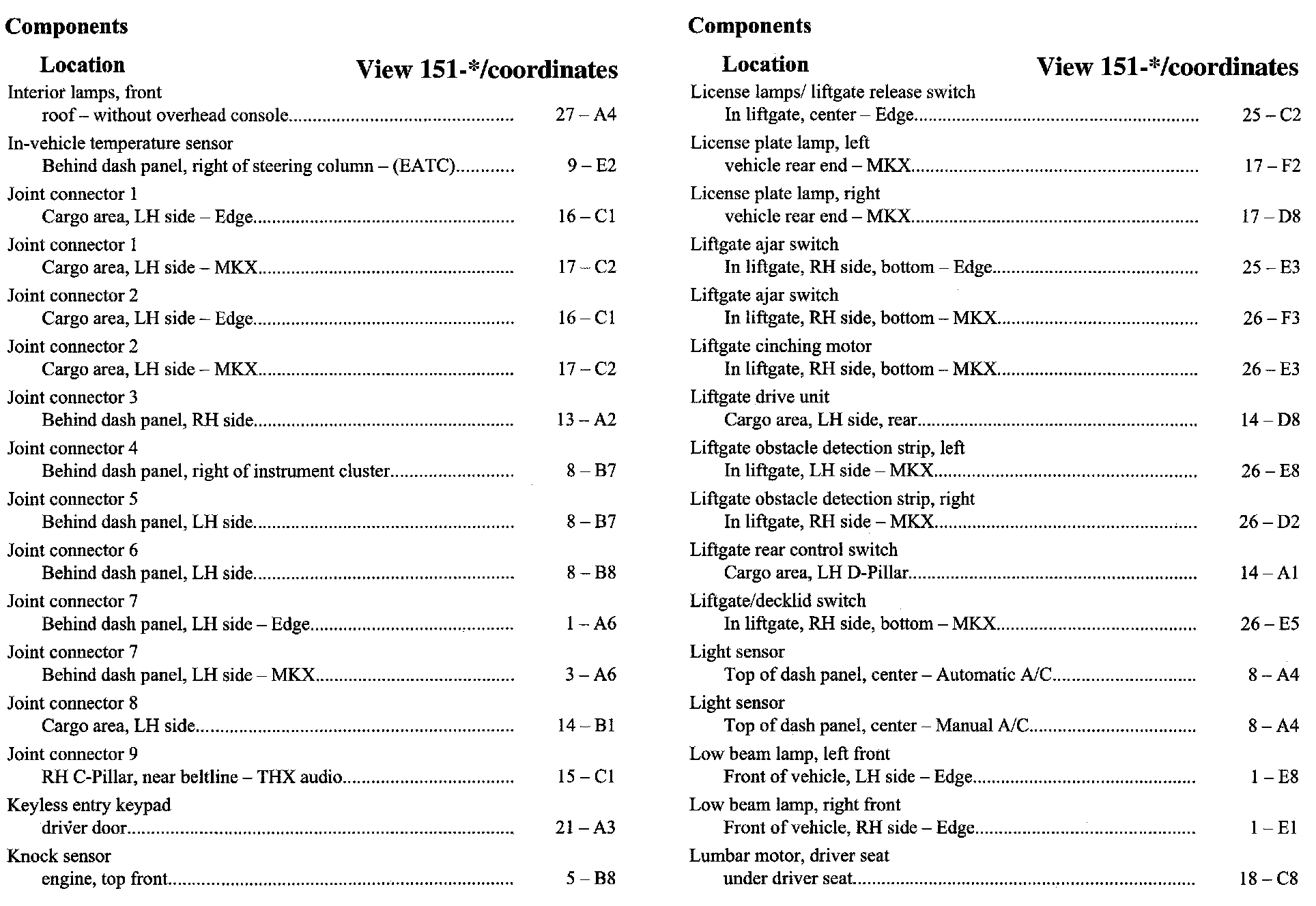

In-Lu:

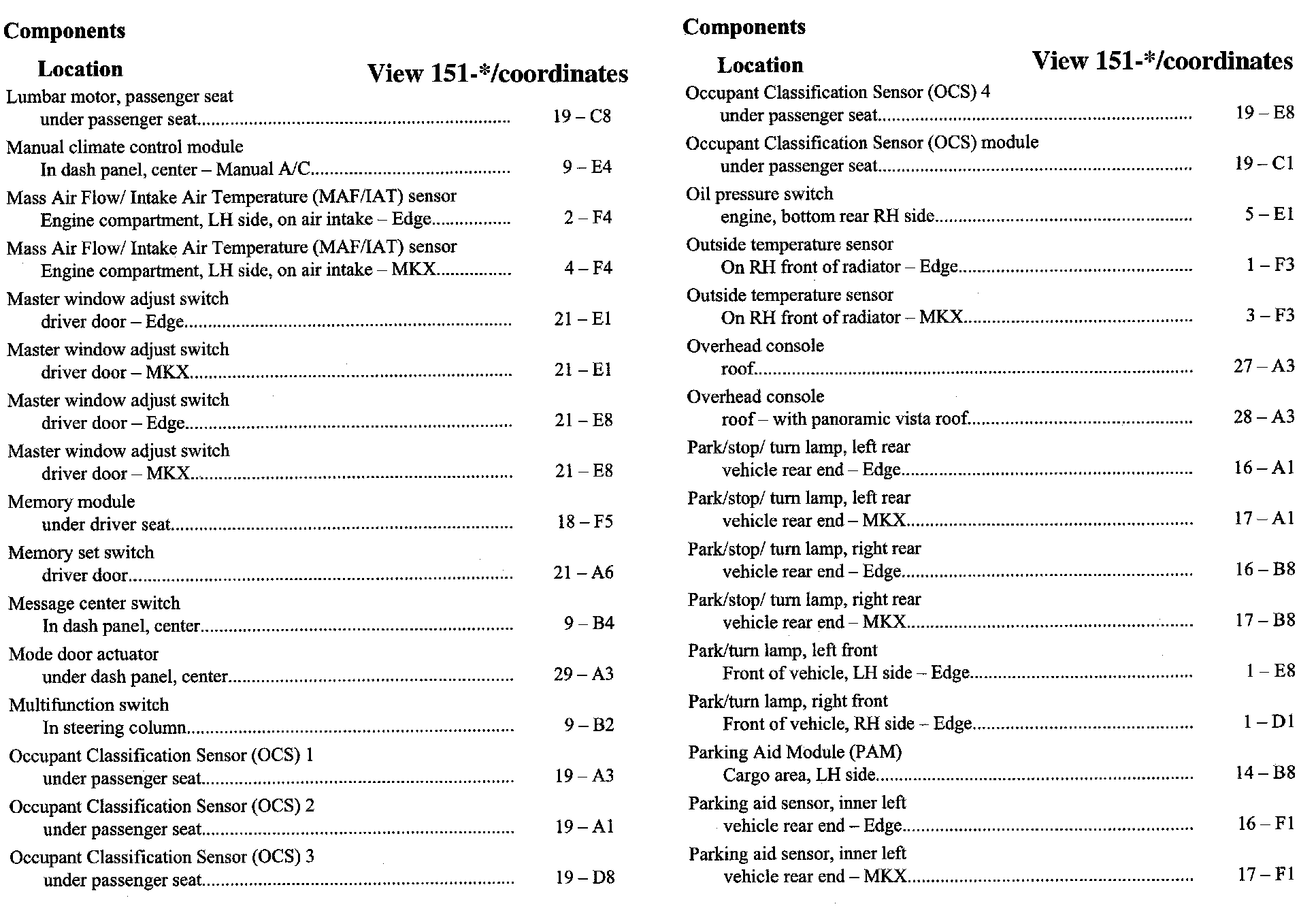

Lu-Pa:

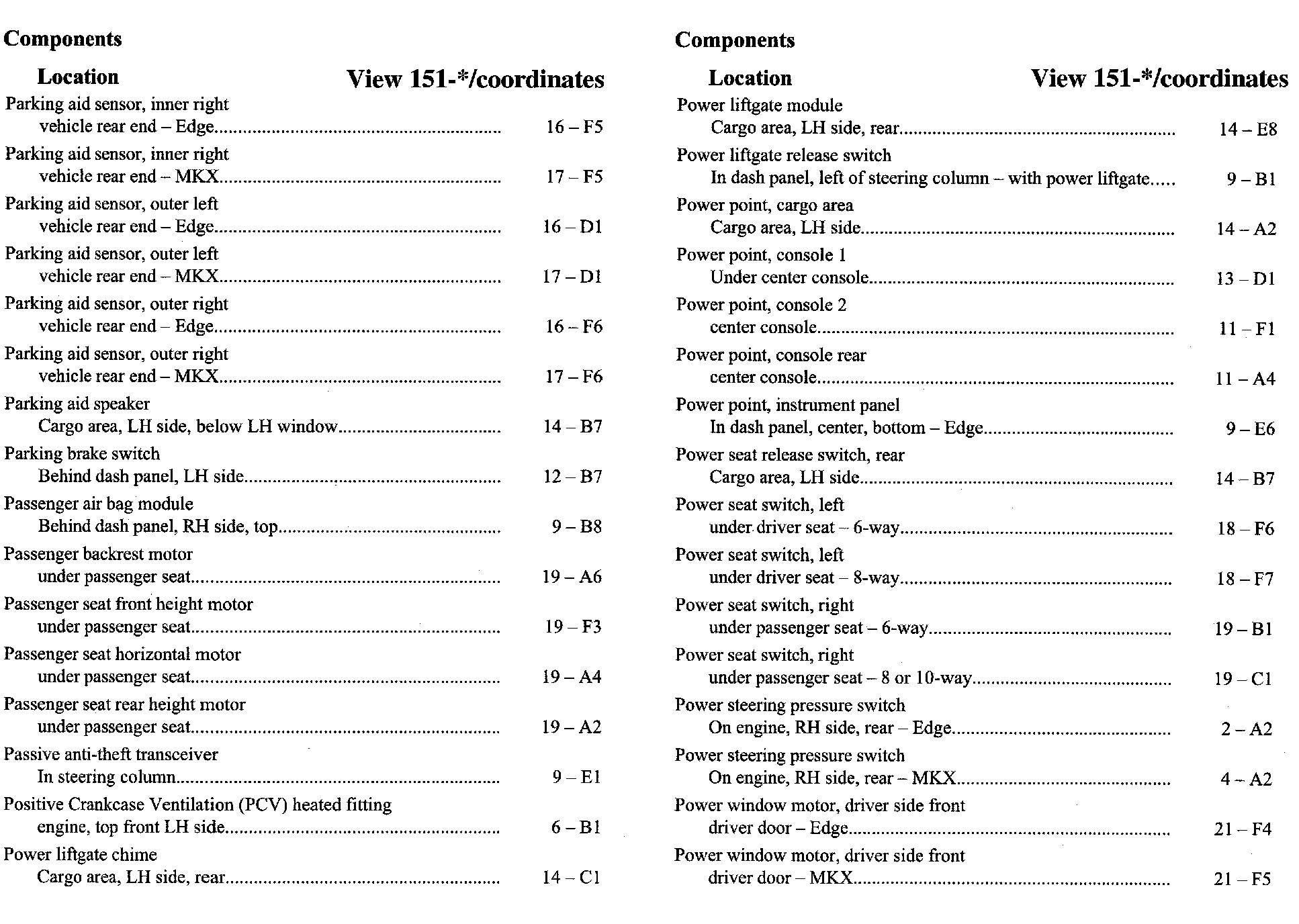

Pa-Po:

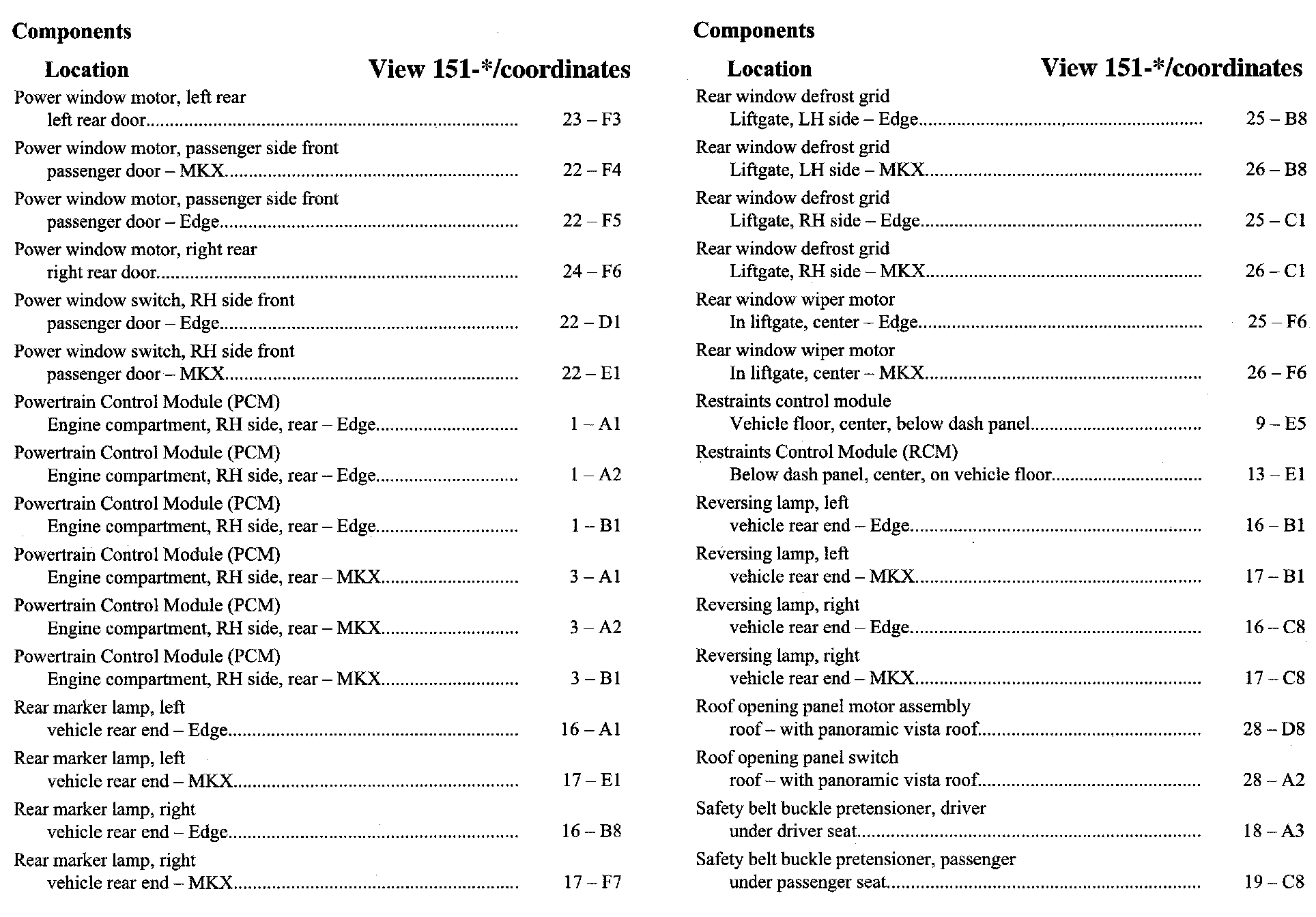

Po-Sa:
Sa-Sp:
Sp-Wh:

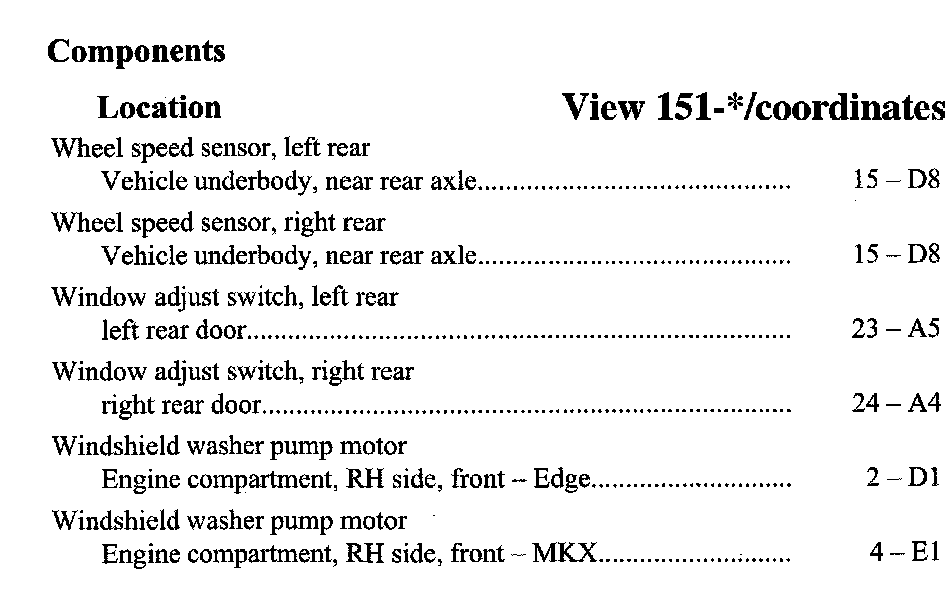

Wh-Wi:
