System Diagram
Main Control Assembly - Exploded Views

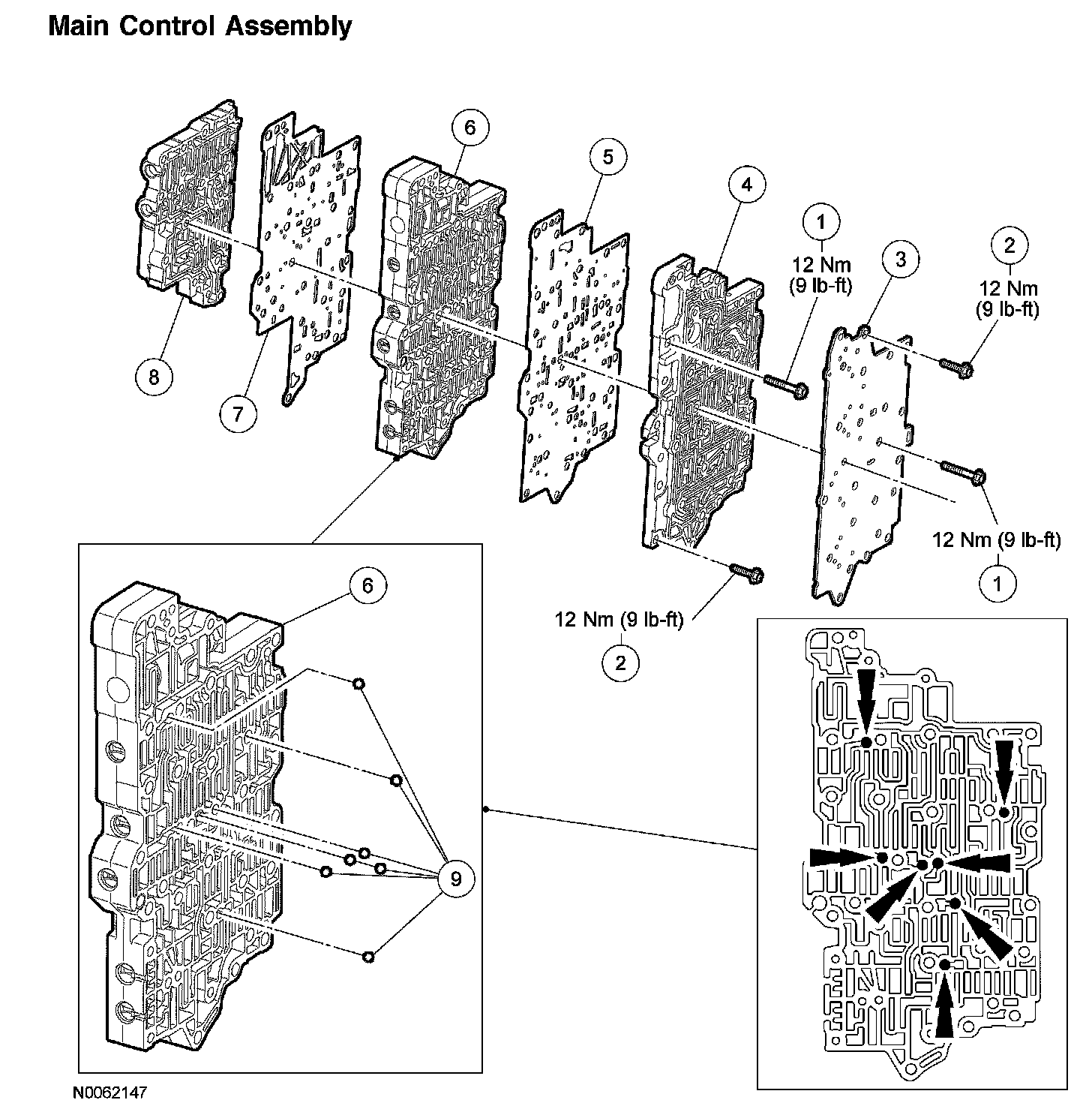

Main Control Assembly:

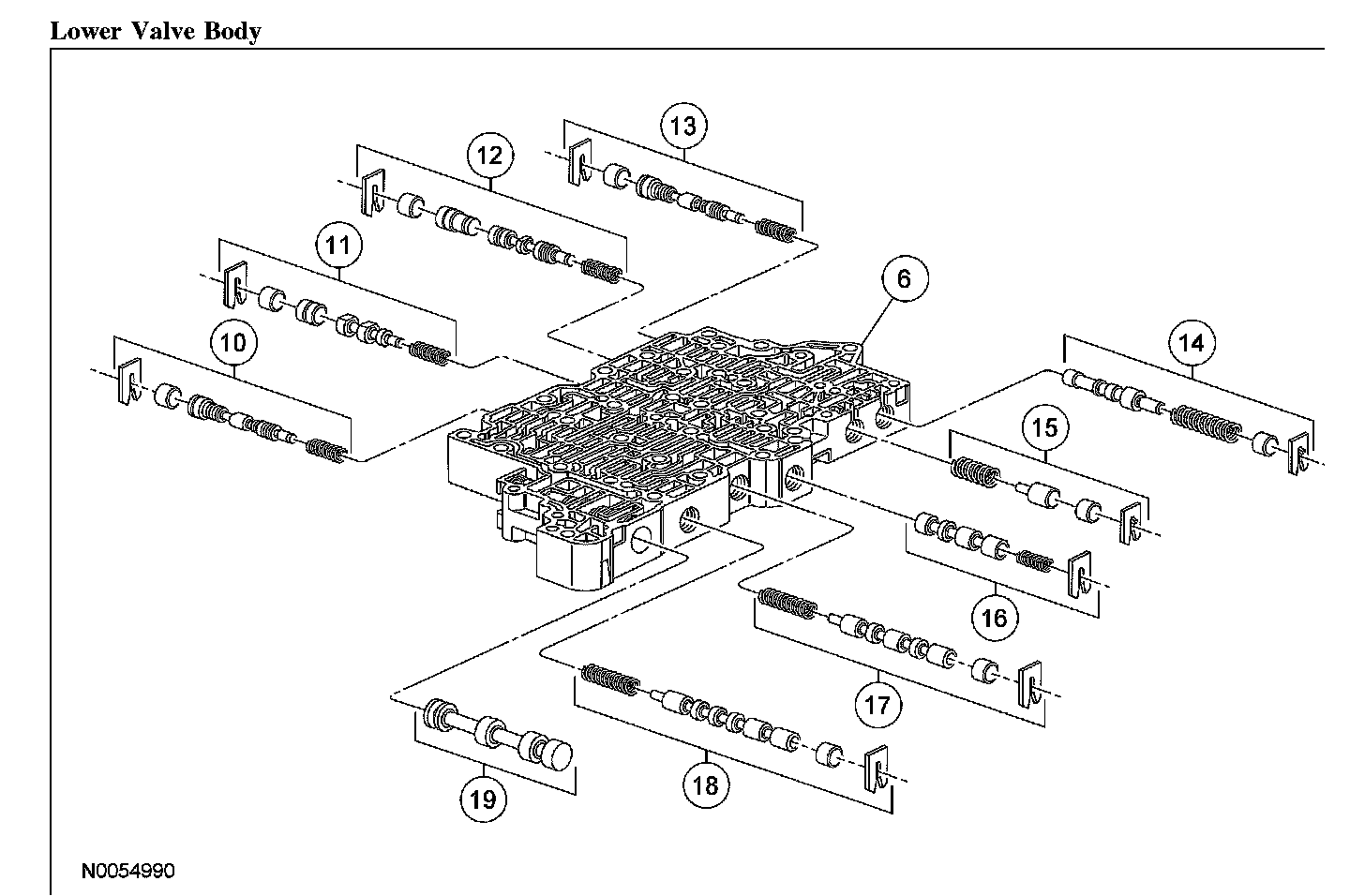

Lower Valve Body (Part 1):

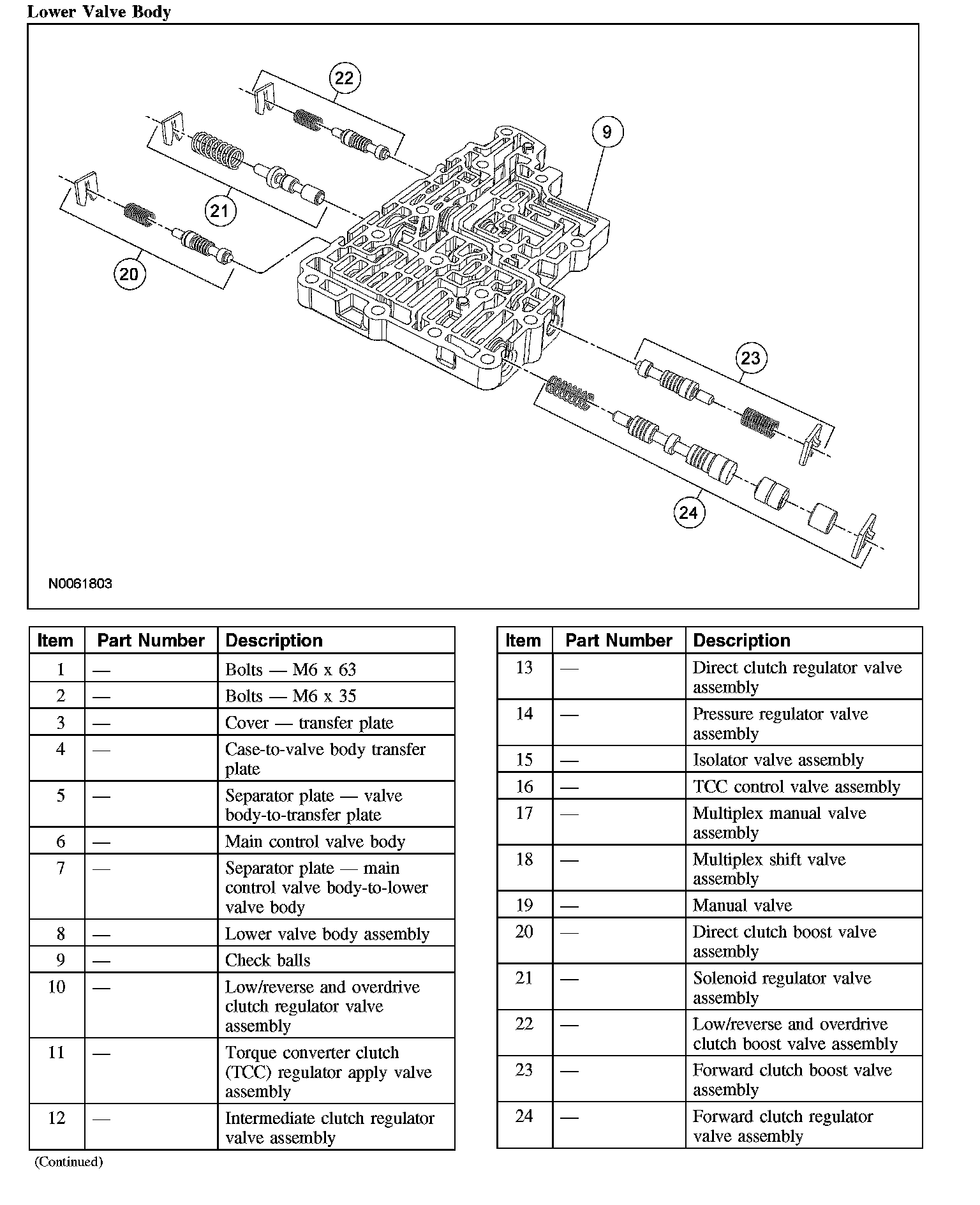

Lower Valve Body (Part 2):
