Control Module HVAC: Service and Repair

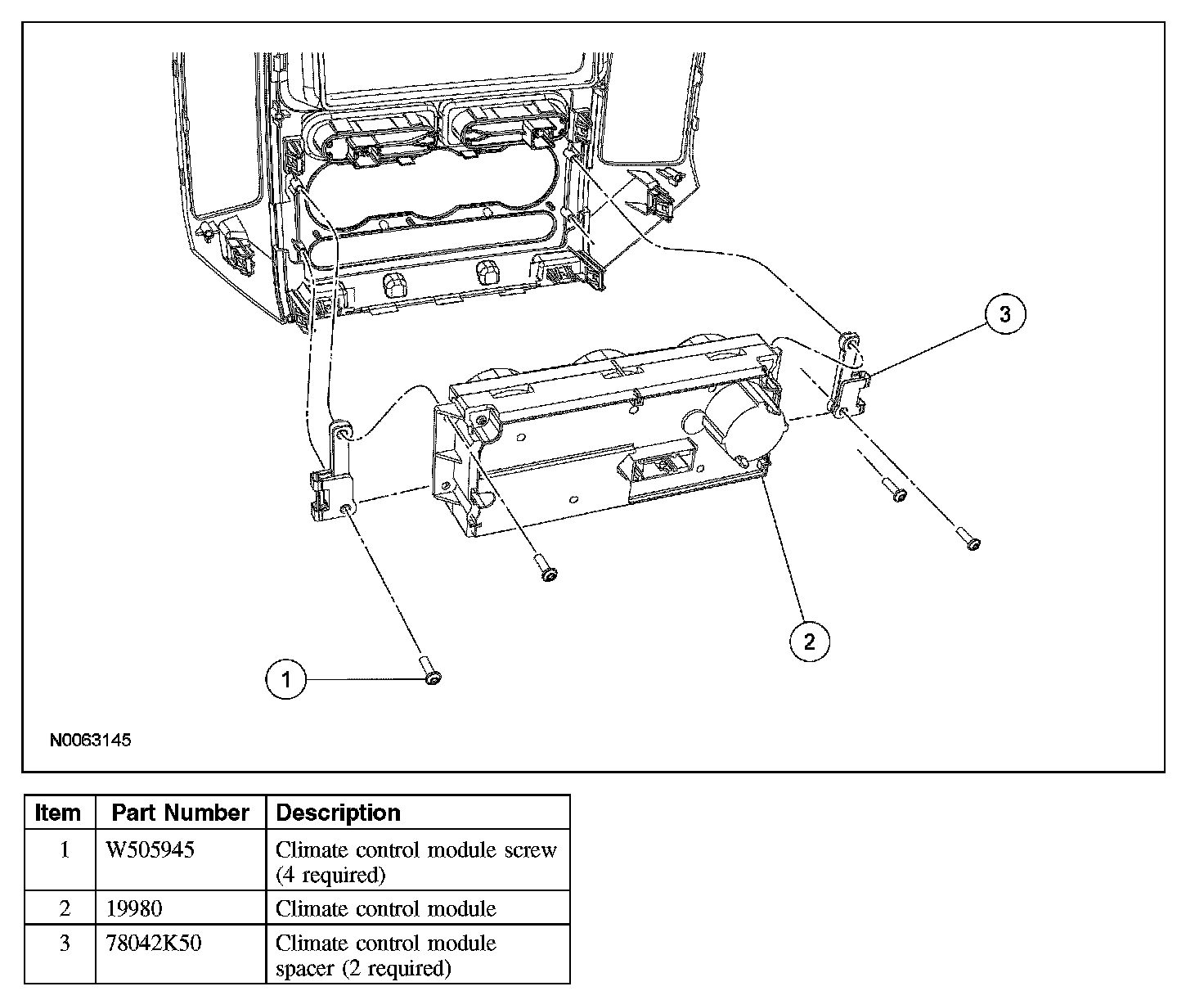

CLIMATE CONTROL MODULE







Removal and Installation
1. Remove the center instrument panel finish panel.
2. Remove the 4 climate control module screws.
3. Remove the climate control module.

4. NOTE: Be sure the climate control module spacers are correctly positioned before installing the climate control module.

To install, reverse the removal procedure.
